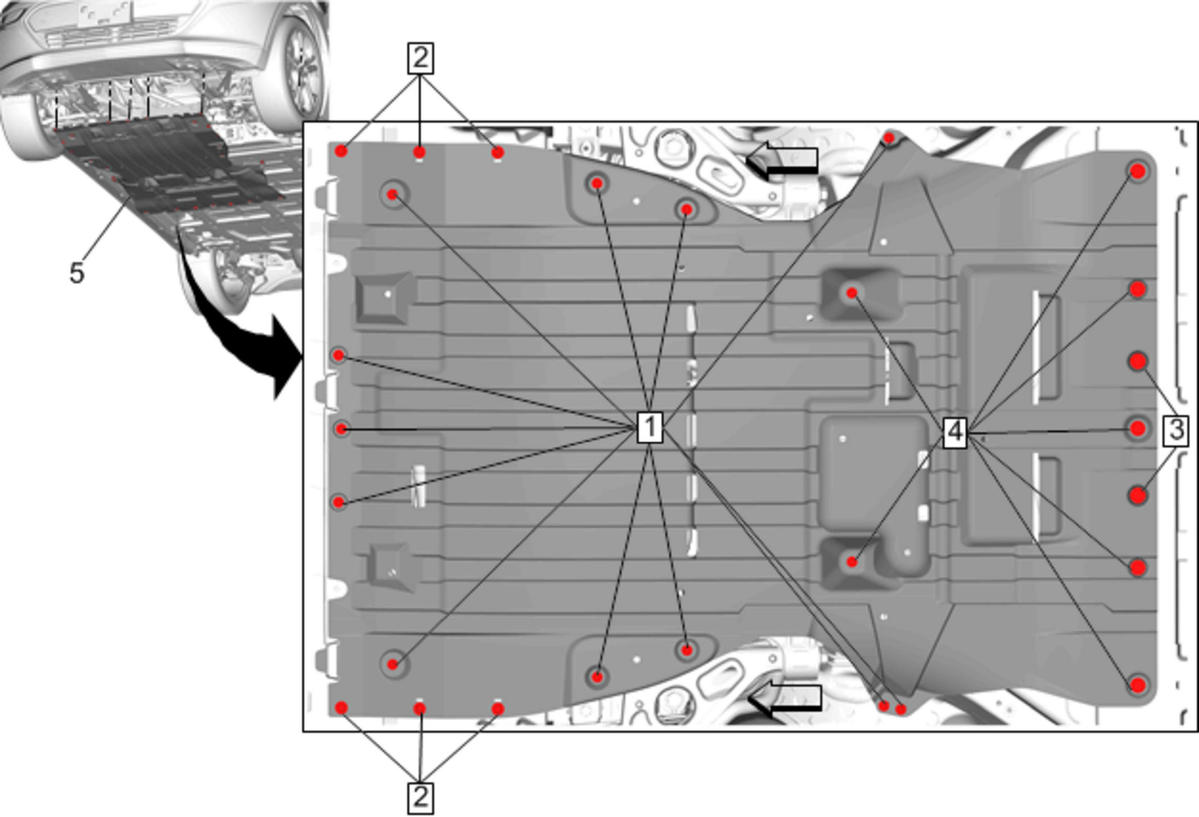

Front Compartment Air Deflector Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Front Compartment Insulator Screw (Qty: 12)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Wheel Opening Screw (Qty: 6) Tighten 2.5 N.m (22 lb in) |
| 3 | Front Compartment Insulator Retainer (Qty: 2) |
| 4 | Front Compartment Insulator Bolt (Qty: 7) Tighten 9 N.m (80 lb in) |
| 5 | Front Compartment Air Deflector |
