Installation Procedure

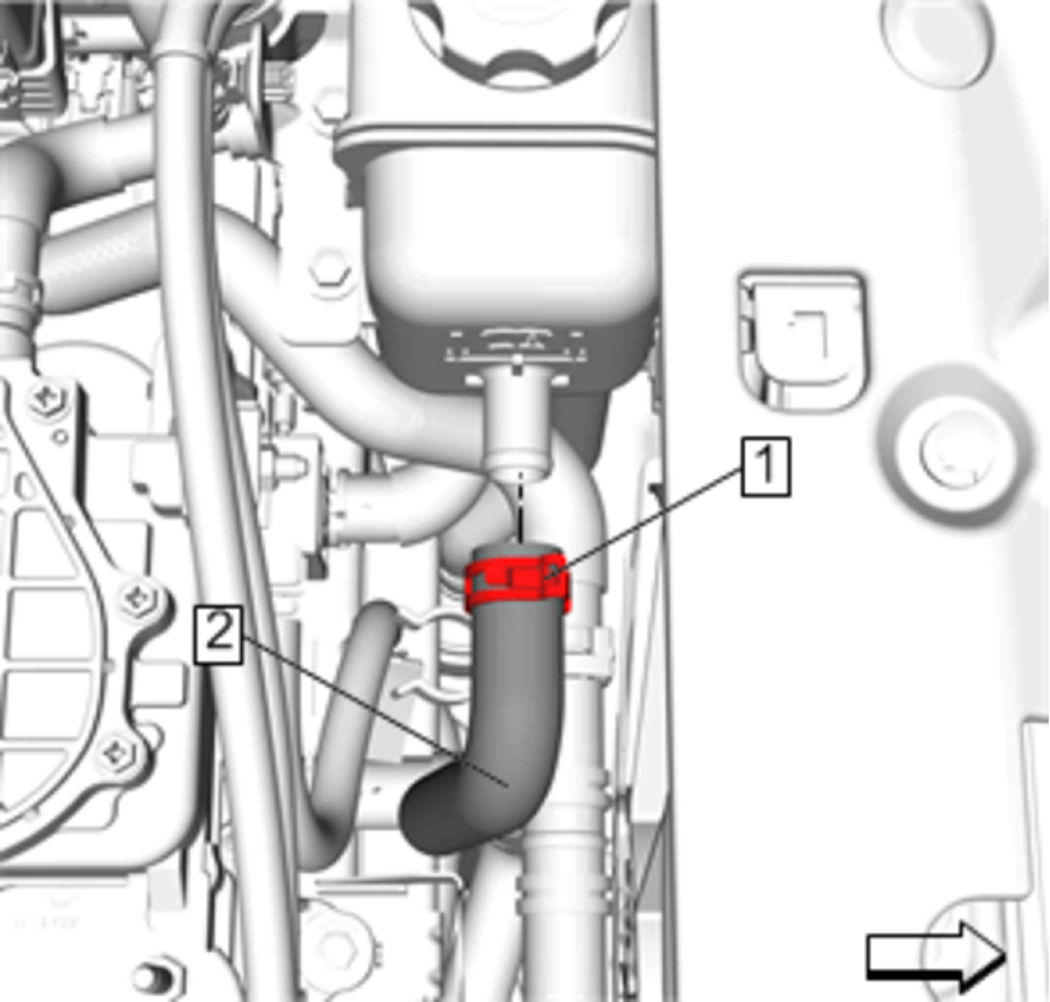

    Fig 1: Generator Control Module Coolant Tank Hose And Clamp
    GM4500837Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator Control Module Coolant Tank Hose (2)
  2. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type

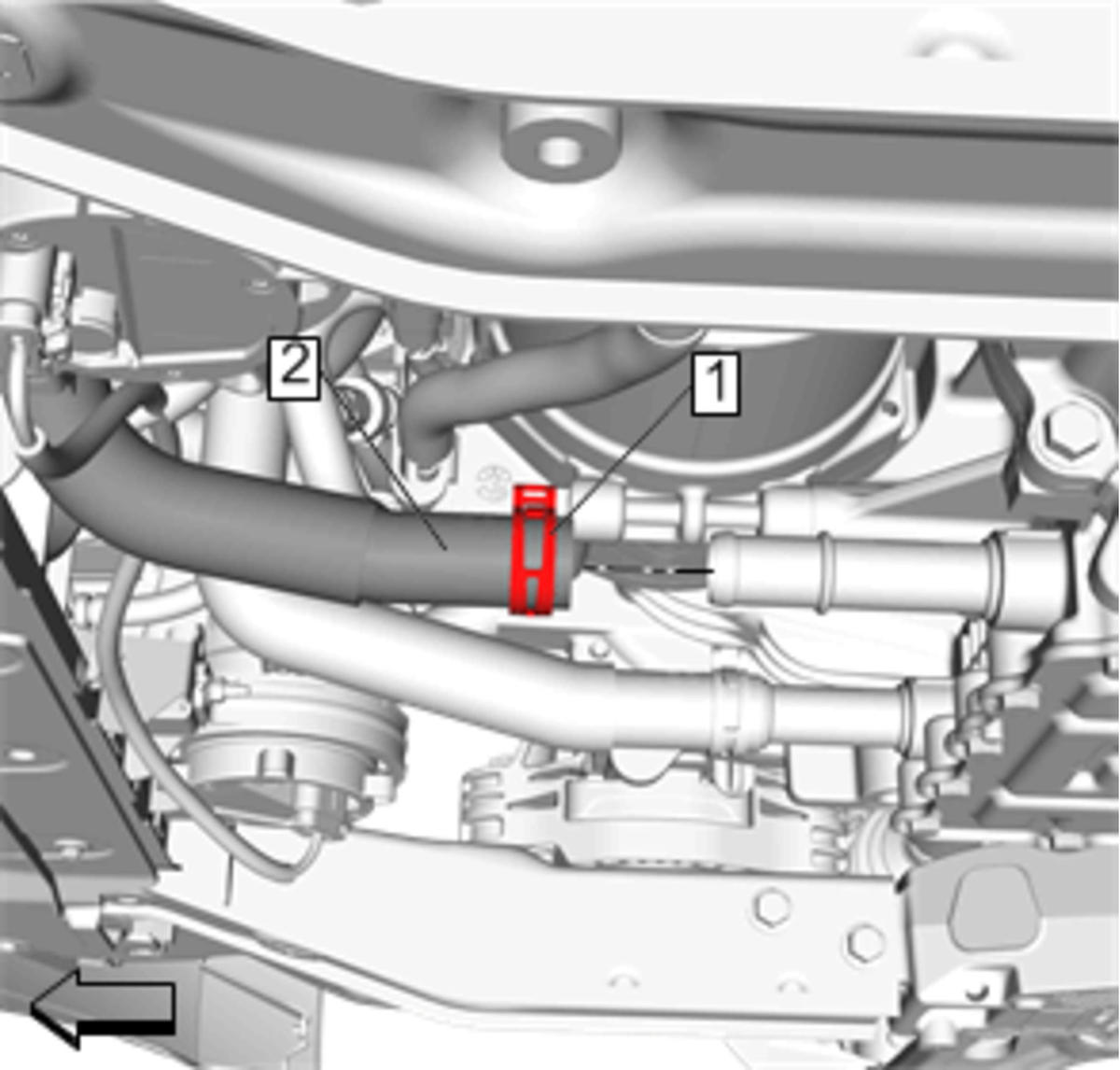

    3. Fig 2: Generator Control Module Coolant Tank Hose And Clamp
    GM4500836Courtesy of GENERAL MOTORS COMPANY
  3. Install Generator Control Module Coolant Tank Hose (2)
  4. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
    5. Fig 3: Front Compartment Air Deflector And Fasteners
    GM4533729Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Compartment Air Deflector (3). Refer to Front Compartment Air Deflector Replacement
  6. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  7. Check the cooling system for leaks.
