Removal Procedure
WARNING:
Before conducting any repair to this high voltage cooling system, it is necessary to determine/verify whether no high-voltage system faults exist. If high-voltage faults exist, follow published DTC diagnostics/repair procedures prior to performing any cooling system repairs. Failure to correct High Voltage Faults before working on the high voltage cooling system could result in personal injury or death.
- Turn vehicle power OFF and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
- Remove Front Compartment Air Deflector. Refer to Front Compartment Air Deflector Replacement
- Remove Front Wheelhouse Liner-Left Side. Refer to Front Wheelhouse Liner Replacement
- Drain the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling

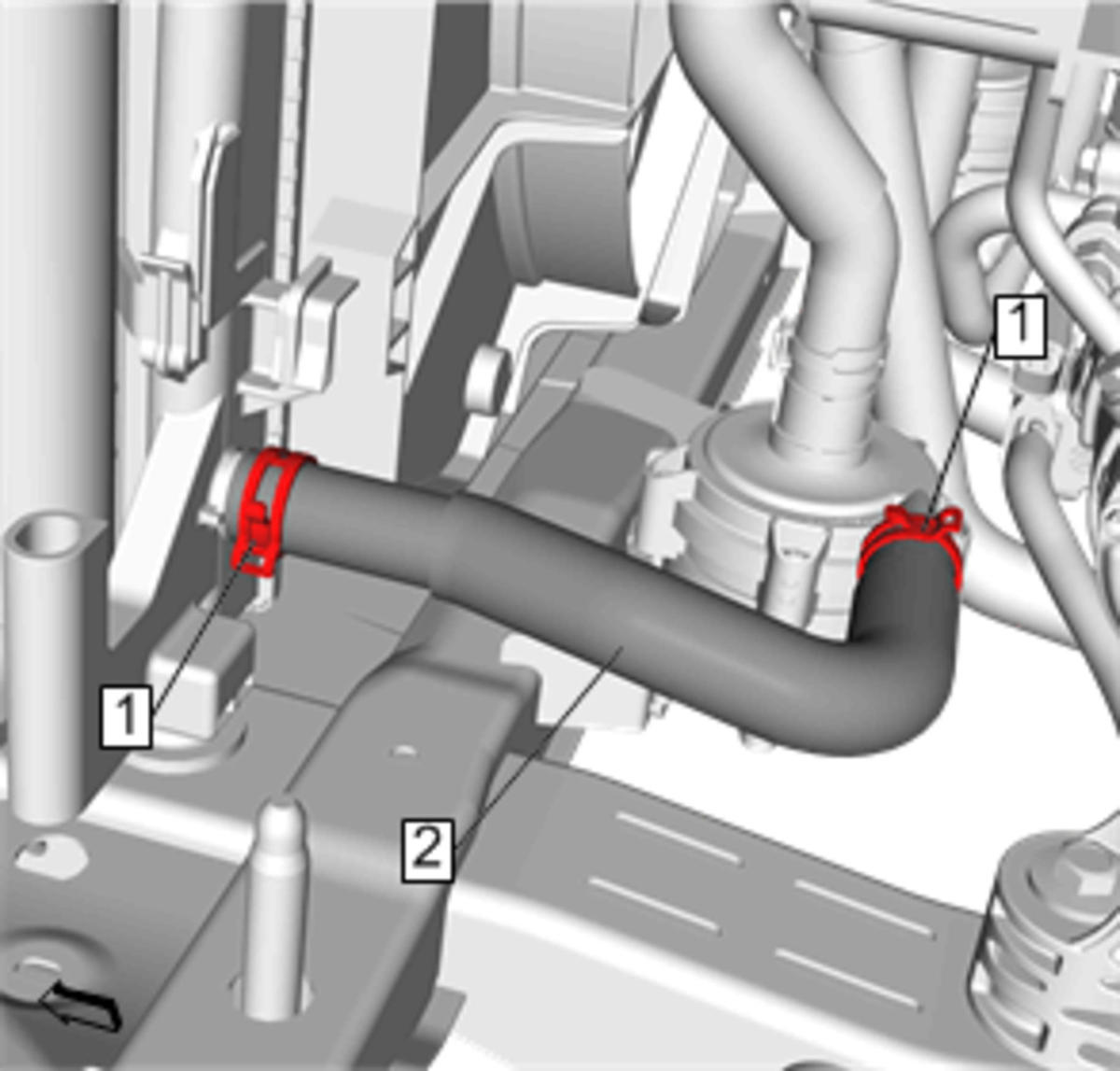

- Disengage Clamps (1) (Qty: 2). Refer to Hose Clamp Replacement Guidelines - Spring Type
- Remove Drive Motor Generator Control Module Radiator Inlet Hose (2)
