Front Side Door Window Regulator Replacement

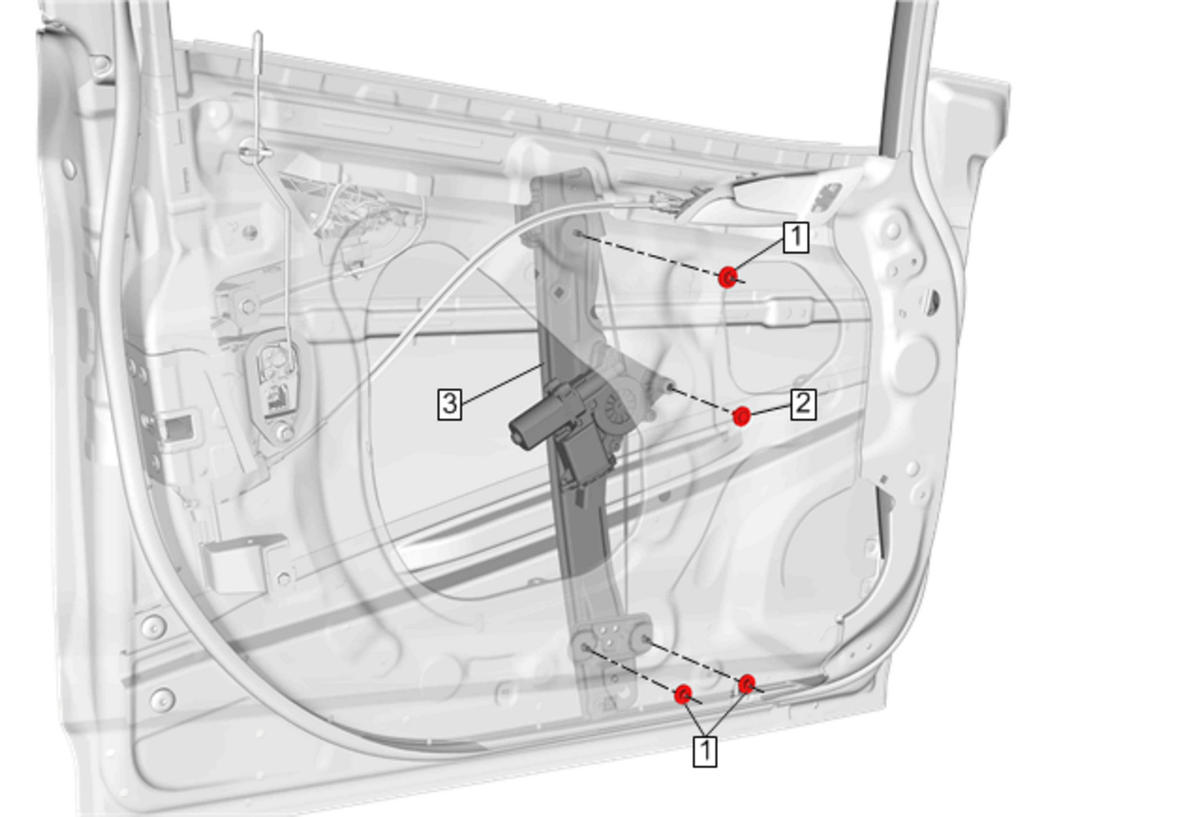

Fig 1: Front Side Door Window Regulator
GM4533773Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the window from the regulator. Front Side Door Window Replacement
  2. Manually raise the window and tape in position.
1 Front Side Door Window Regulator Nut (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
11 N.m (97 lb in)
2 Front Side Door Window Regulator Bolt
Tighten
11 N.m (97 lb in)
3 Front Side Door Window Regulator

Procedure

  1. Disconnect the electrical connector.
  2. Inspect the door window for proper operation before installing the door trim panel.
  3. Perform the window regulator motor program relearn. Window Motor Programming - Express Function
