Front Side Door Window Replacement

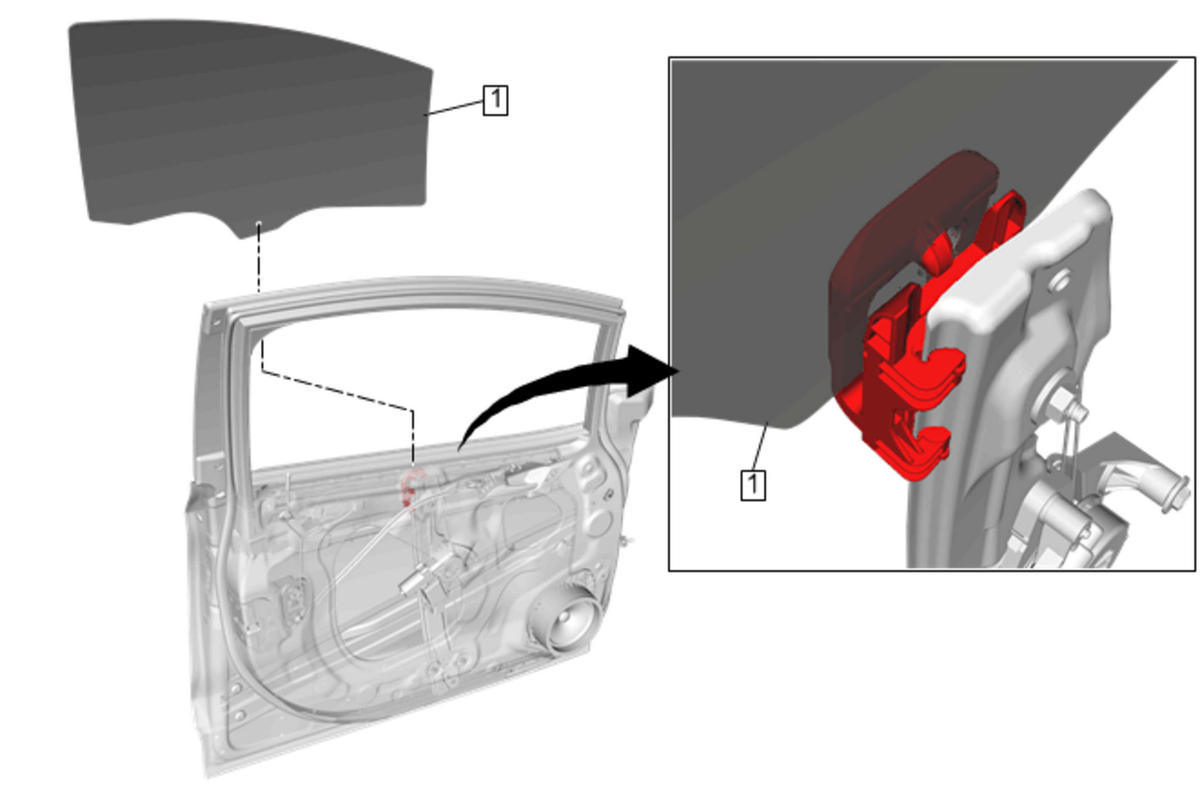

Fig 1: Front Side Door Window
GM4533753Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Glass and Sheet Metal Handling Warning

Preliminary Procedures

  1. Position the window approximately half way down in the door
  2. Front Side Door Window Channel Retainer Replacement
  3. Front Side Door Window Belt Reveal Molding Replacement
1 Front Side Door Window

Procedure

  1. Front Side Door Window at Front Side Door Window Regulator - Remove
  2. Rotate the front side door window as necessary to remove it from the front side door.
