Liftgate Latch Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

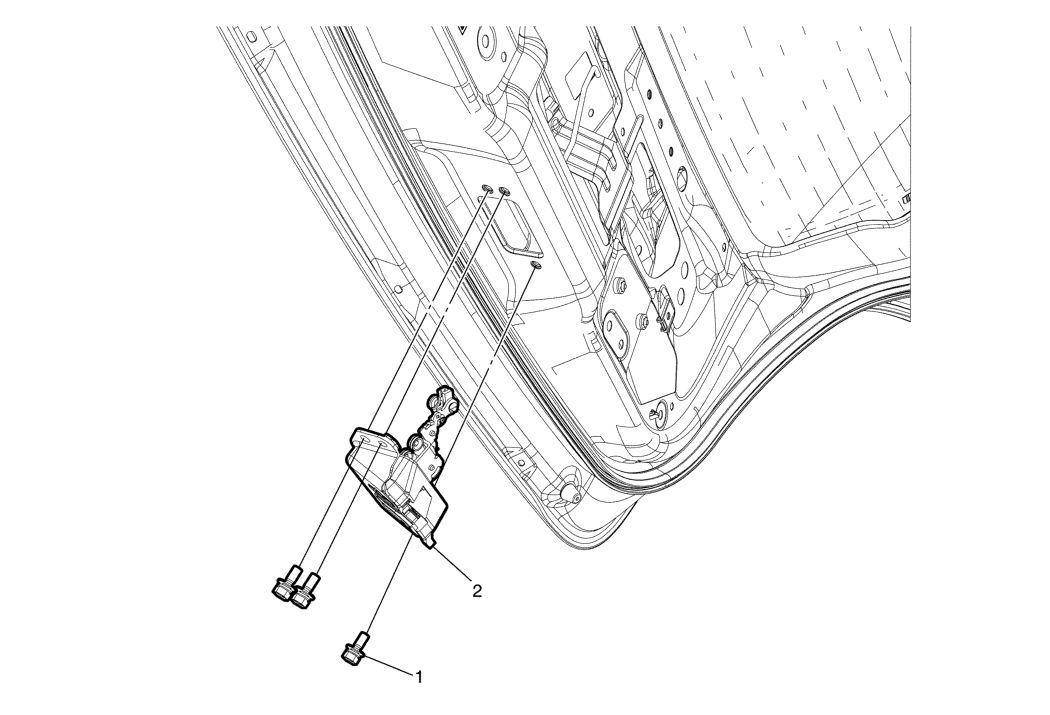

Fig 1: Liftgate Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement . Remove the liftgate lock cylinder rod. Remove the liftgate outside handle rod.
1	Liftgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
2	Liftgate Latch Assembly

Callout

Component Name

Preliminary Procedures

Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
Remove the liftgate lock cylinder rod.
Remove the liftgate outside handle rod.

Liftgate Latch Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
12 N.m (106 lb in)

Liftgate Latch Assembly
