Liftgate Trim Panel Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

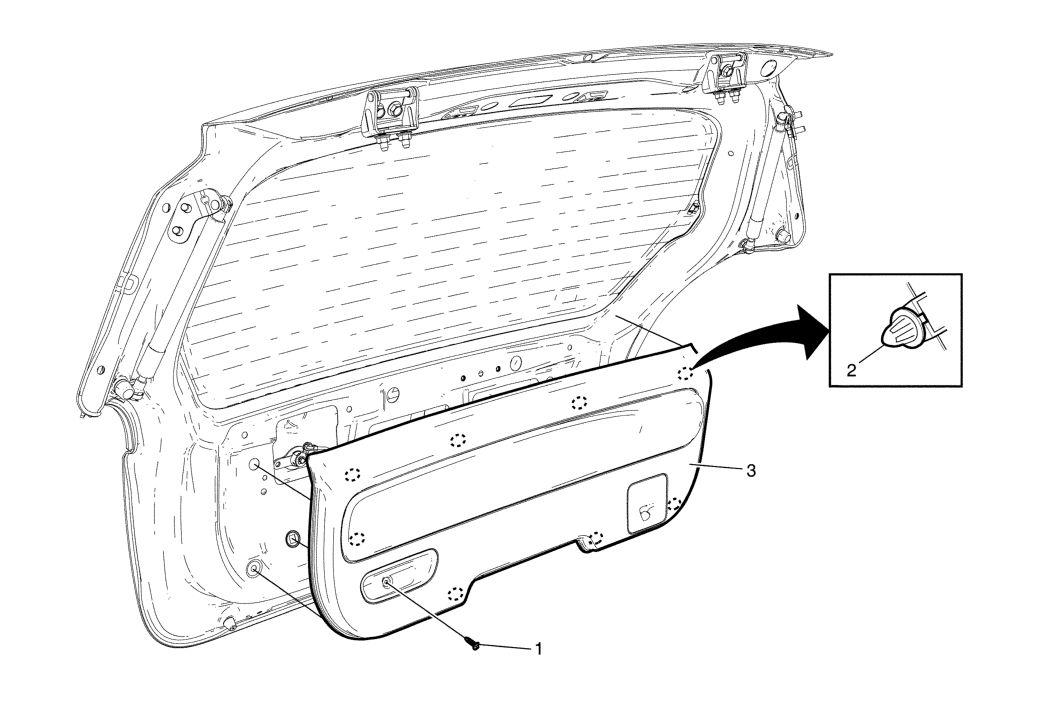

| Callout | Component Name |
|---|---|
| 1 | Liftgate Trim Panel Screw (Qty: 1)
CAUTION:
Refer to Fastener Caution
. Tighten 2 N.m (18 lb in) |
| 2 | Liftgate Trim Panel Clip (Qty: 8) |
| 3 | Liftgate Trim Panel Assembly (Qty: 9) |
