Console Front Trim Plate Replacement

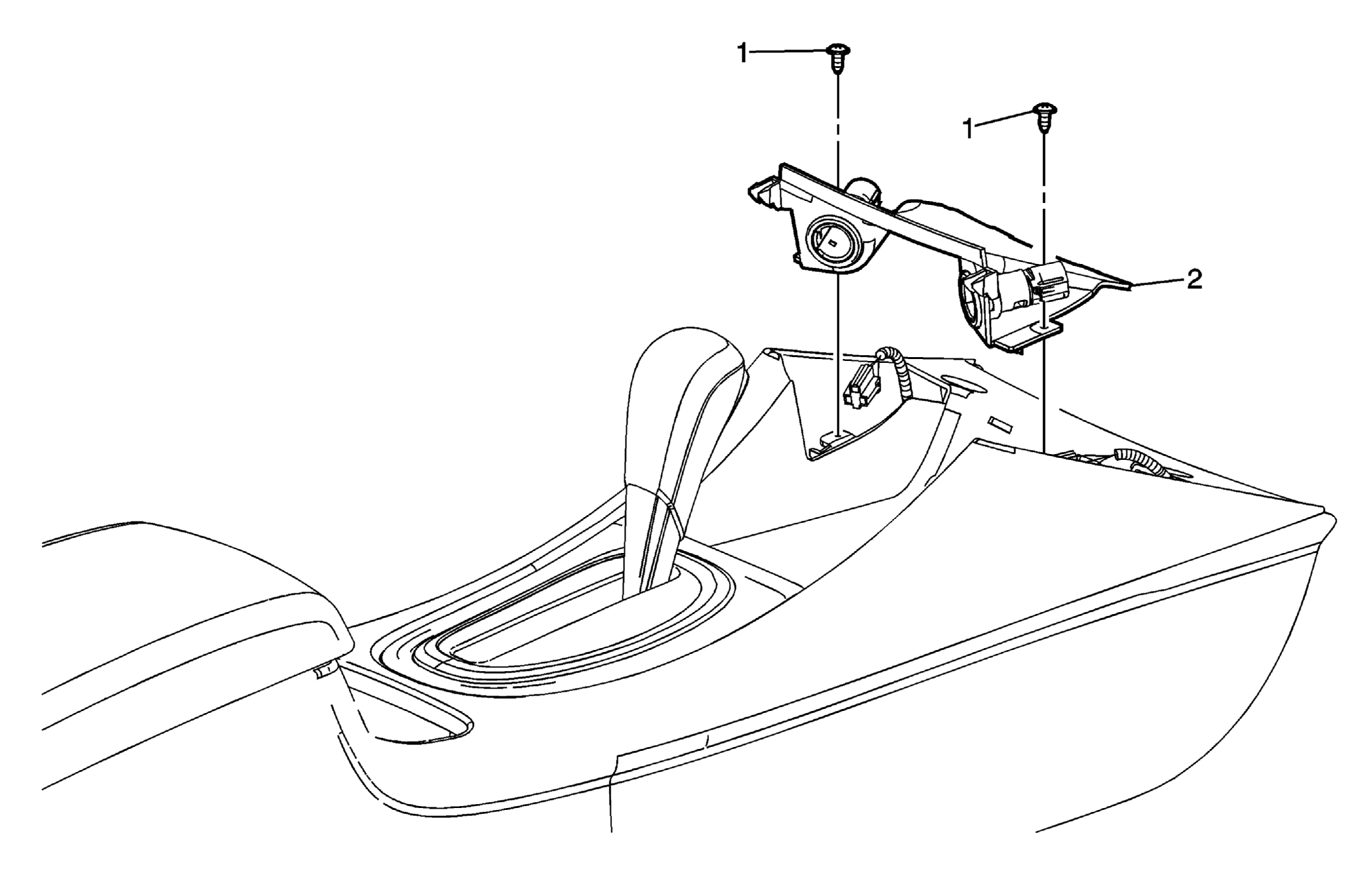

Fig 1: Console Front Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement .
1	Front Floor Console Trim Panel Screw (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Floor Console Trim Panel Assembly Procedure Disconnect electrical connectors. Remove the 12 volt accessory power receptacles. Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement .

Callout

Component Name

Preliminary Procedure
Remove the front floor console. Refer to Front Floor Console Replacement .

Front Floor Console Trim Panel Screw (Qty 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Front Floor Console Trim Panel Assembly

Procedure

Disconnect electrical connectors.
Remove the 12 volt accessory power receptacles.
Refer to Cigar Lighter Receptacle or 12-Volt Accessory Power Receptacle Replacement .
