Front Floor Console Replacement

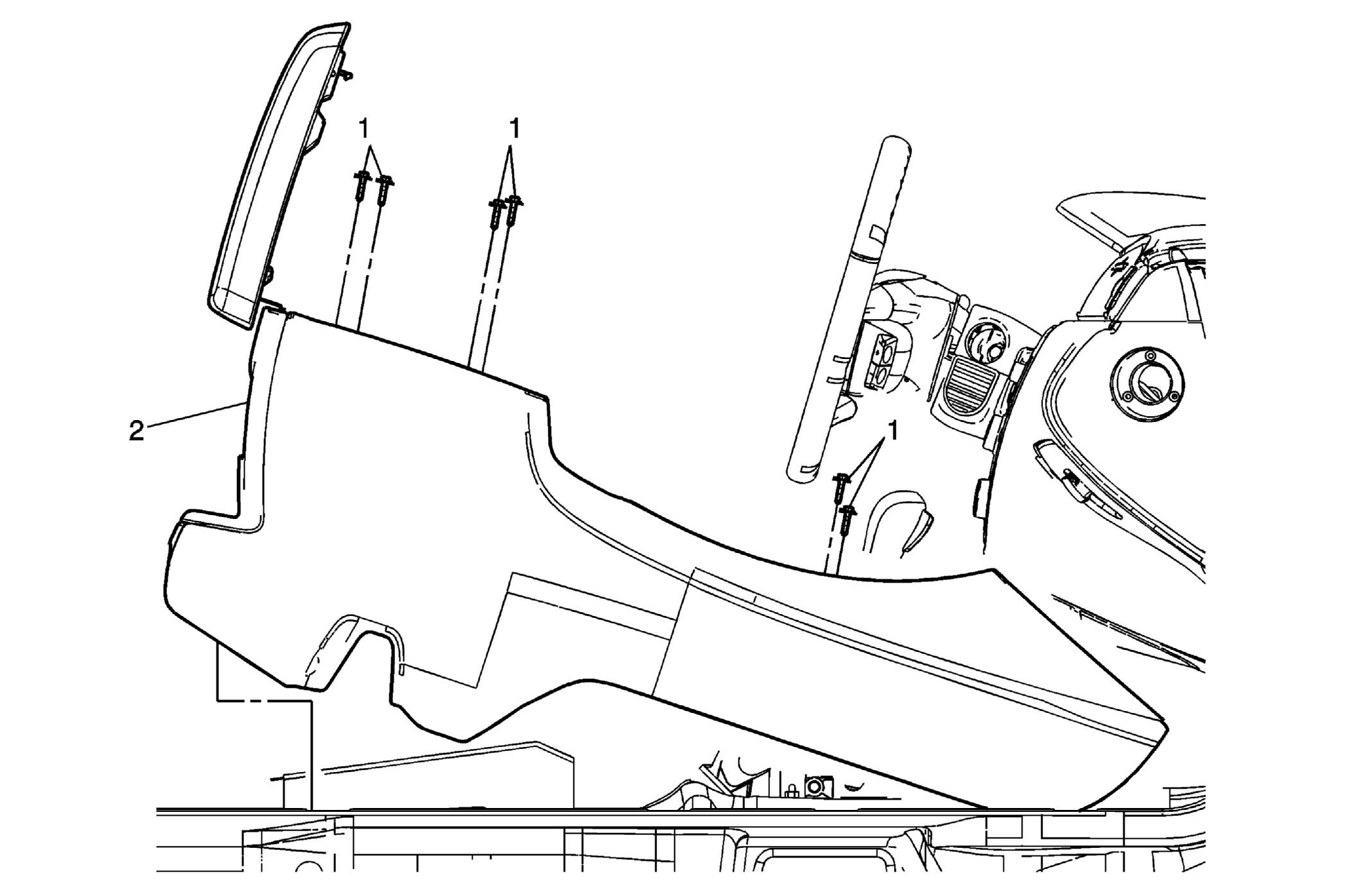

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: To prevent component damage, DO NOT use metal tools to remove the trim. Preliminary Procedure Remove the front floor console bin liner. Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement . Use ONLY a plastic trim tool to lift the shift lever bezel from the console. Do not use any tool between the trim bezel and the shifter. Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.
1	Front Floor Console Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Front Floor Console Assembly Procedure Disconnect the electrical connector.

Callout

Component Name

CAUTION:

To prevent component damage, DO NOT use metal tools to remove the trim.

Preliminary Procedure

Remove the front floor console bin liner.
Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .
Use ONLY a plastic trim tool to lift the shift lever bezel from the console. Do not use any tool between the trim bezel and the shifter.
Apply the park brake and shift lever rearward. The sound deadener must be reinstalled if the wire harness is removed or replaced.

Front Floor Console Bolt (Qty: 6)

CAUTION:

Tighten
7 N.m (62 lb in)

Front Floor Console Assembly
Procedure
Disconnect the electrical connector.
