Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

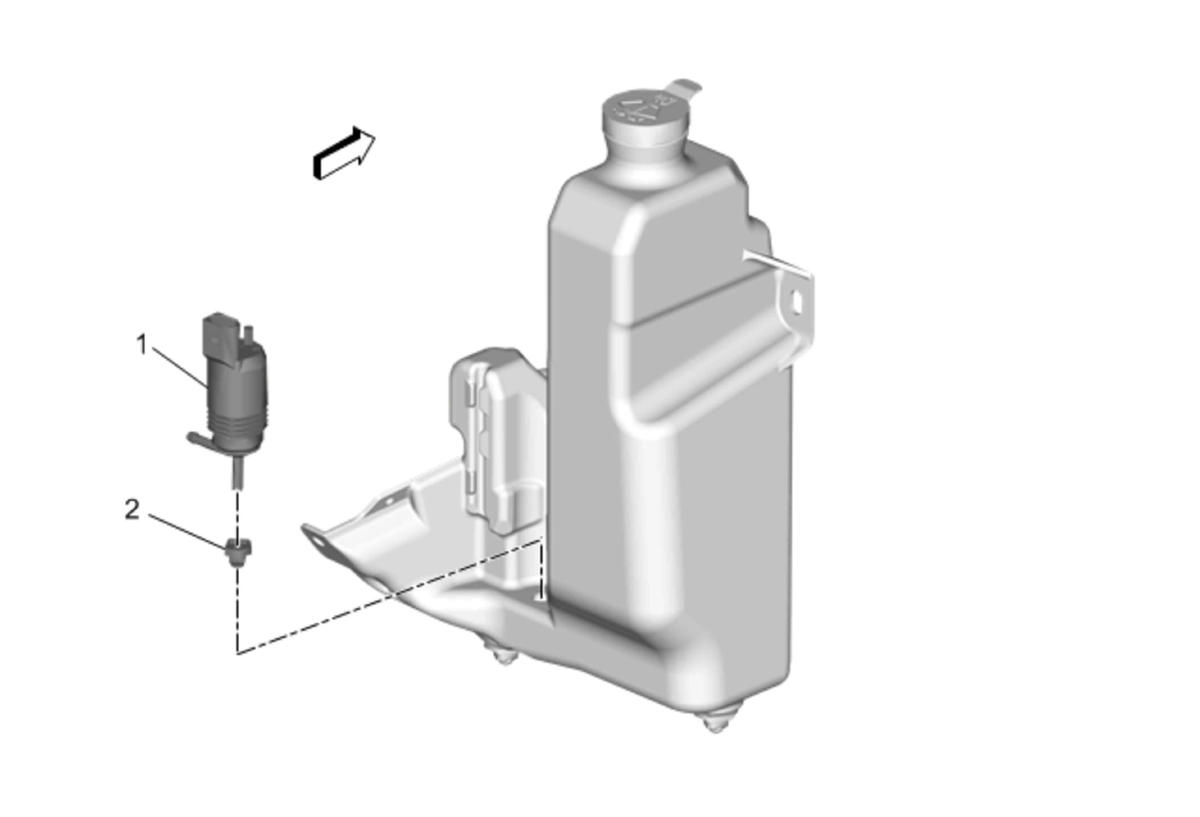

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement . Using two appropriate flat-bladed tools, gently pry the windshield washer pump and pump grommet from the windshield washer solvent container. Discard the old windshield washer pump grommet.
1	Windshield Washer Pump
2	Windshield Washer Pump Grommet

Callout

Component Name

Preliminary Procedure

Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
Using two appropriate flat-bladed tools, gently pry the windshield washer pump and pump grommet from the windshield washer solvent container.
Discard the old windshield washer pump grommet.

Windshield Washer Pump

Windshield Washer Pump Grommet
