Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

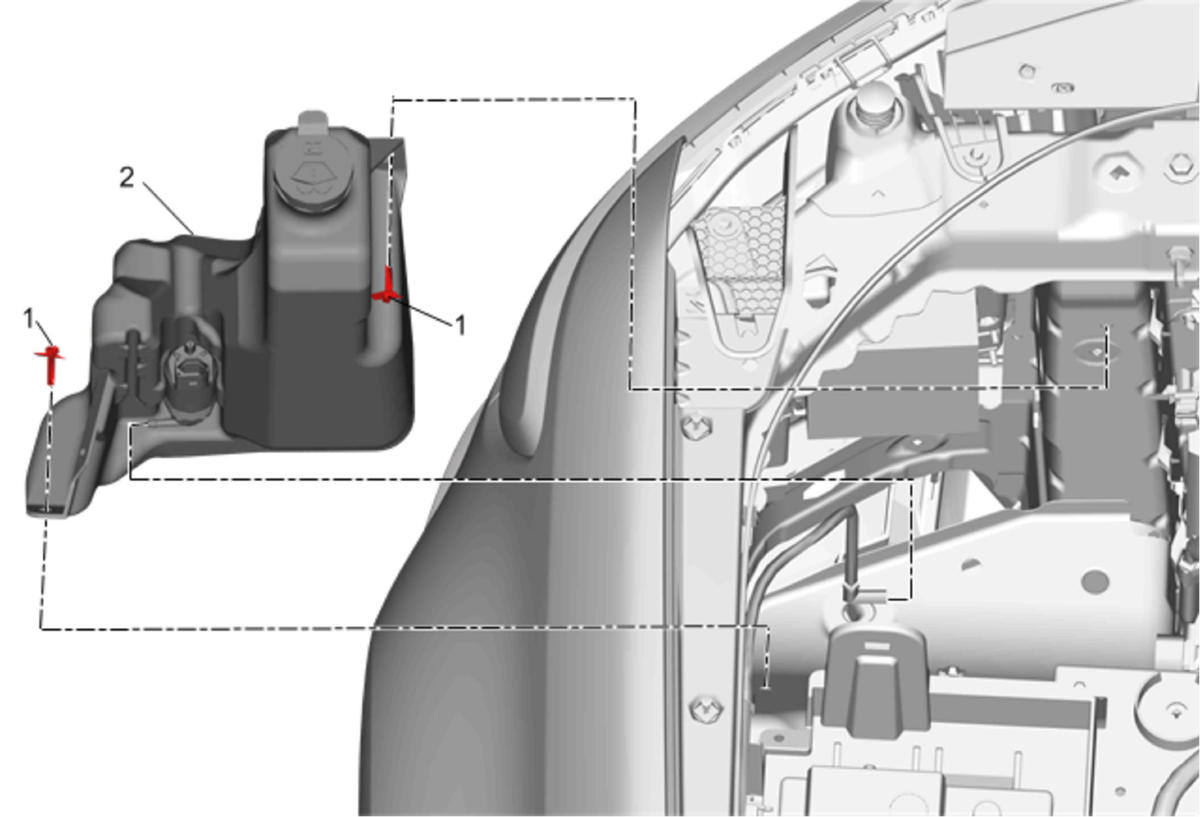

Fig 1: Windshield Washer Solvent Container
GM3802319Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Open the hood.
  2. Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer hose is disconnected.
  3. Disconnect the electrical connector from the windshield washer pump.
  4. Disconnect the windshield washer pump hose connection to the windshield washer pump.
1 Windshield Washer Solvent Container Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Windshield Washer Solvent Container

Procedure

  1. Unclip the wire harness from the solvent container.
  2. Remove the windshield washer solvent container from the vehicle.
  3. Empty the windshield washer solvent into a suitable clean container.
  4. Transfer parts as needed.
