Driver Door Components
NOTE:

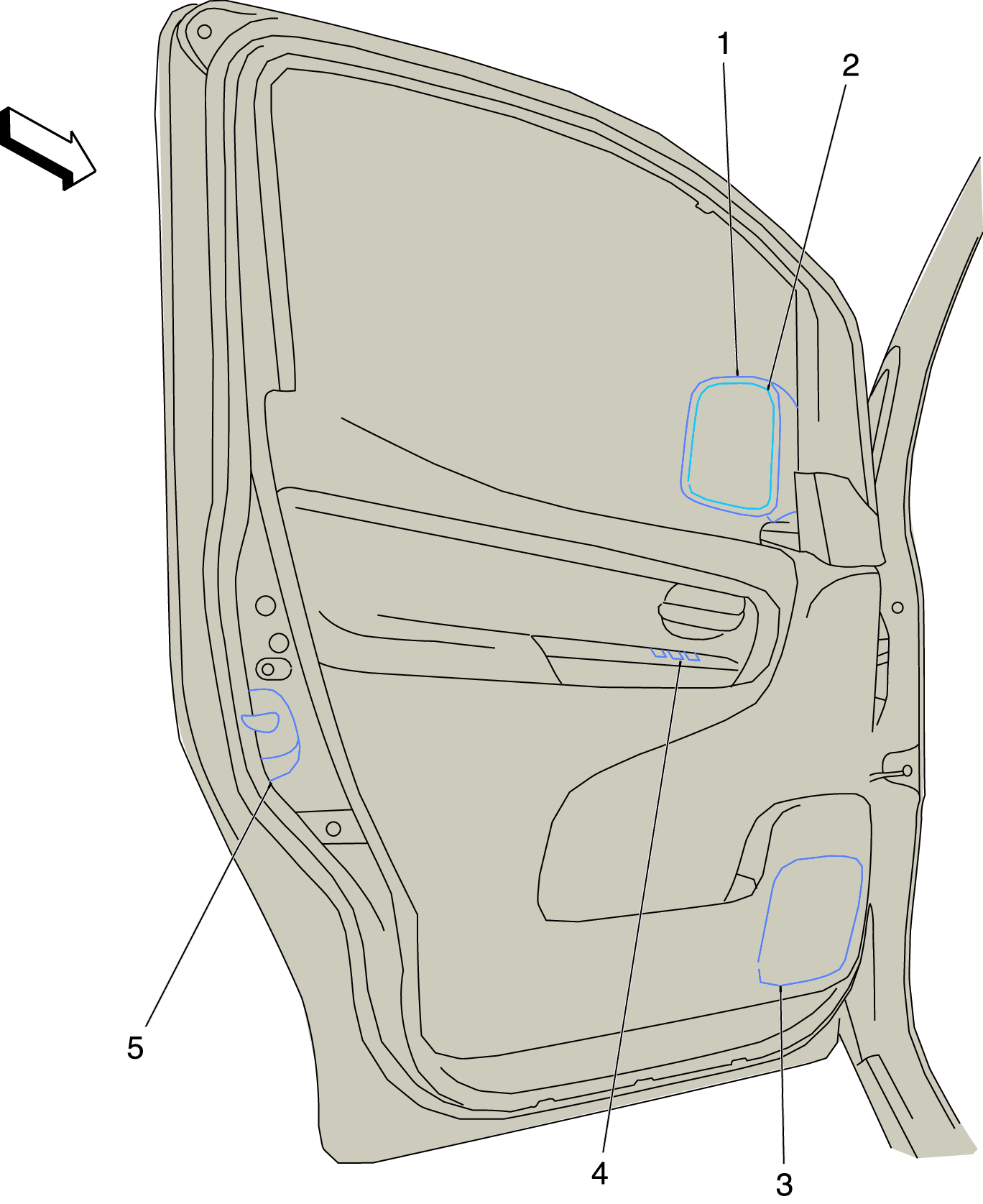

Callouts in the following chart represent components shown in graphic above.
Driver Door Components
| Items | Callout |
|---|---|
| A9A Outside Rearview Mirror - Driver | (1) |
| E17D Outside Rearview Mirror Glass - Driver (DE5 or DR6) | (2) |
| P19AG Speaker - Left Front Door CONNECTOR VIEW | (3) |
| S101D Door Lock/Window Switch - Driver CONNECTOR VIEW | (4) |
| A23D Door Latch Assembly - Driver CONNECTOR VIEW | (5) |
