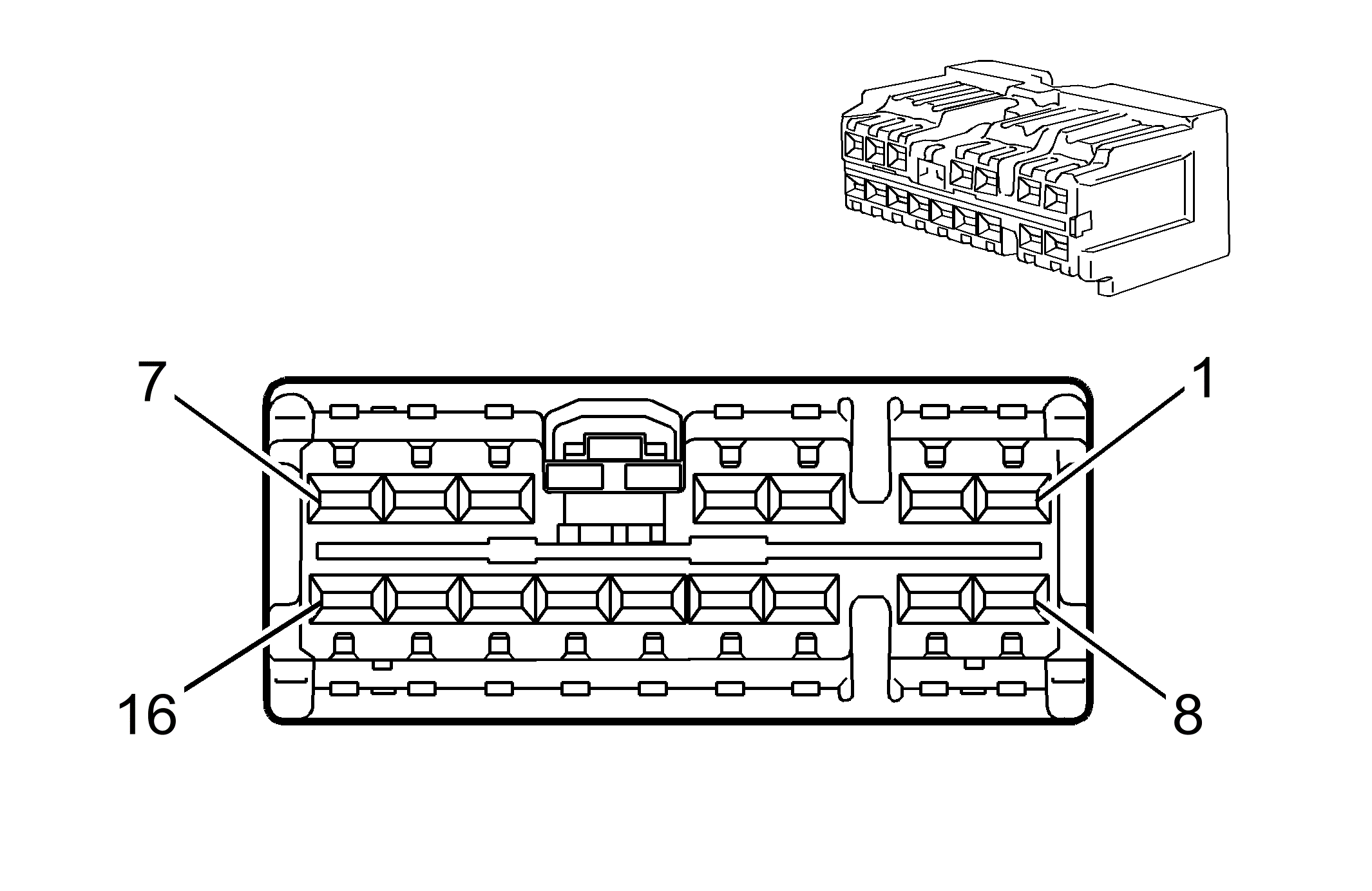

Driver Power Window Switch Encoder

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Service by Harness	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	PU	PA01	Power Window Supply Voltage	I	-
2	-	-	-	Not Occupied	-	-
3	-	L-BU	PA20	Power Window Serial Data	I	-
4	-	-	-	Not Occupied	-	-
5	-	BN	PA06	Driver Power Window Switch Encoder Supply Voltage	I	-
6	-	PU	PD12	Driver Door Lock Switch Unlock Signal	I	-
7	-	RD	PD11	Driver Door Lock Switch Lock Signal	I	-
8	-	D-BU	PA08	Power Window Motor Driver Up Control	I	-
9	-	PK	PA05	Driver Power Window Switch Encoder Pulse B Signal	I	-
10	-	D-BU	PA02	Power Window Ignition Output	I	-
11	-	GY	PA09	Power Window Motor Driver Down Control	I	-
12	-	-	-	Not Occupied	I	-
13	-	WH	PA07	Driver Power Window Switch Encoder Pulse A Signal	I	-
14	-	D-GN	PA10	Driver Power Window Switch Encoder Low Reference	I	-
15	-	BK	PAE1	Ground	I	-
16	-	-	-	Not Occupied	I	-
