WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
Preliminary Procedures
- Open the door to the full open position.
- Remove the front side door belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .
- Remove the front side door pull handle bracket. Refer to Front Side Door Pull Handle Bracket Replacement
.
- Remove the front side door water deflector.
- Remove the front side door window channel retainer. Refer to Front Side Door Window Channel Retainer Replacement .
|

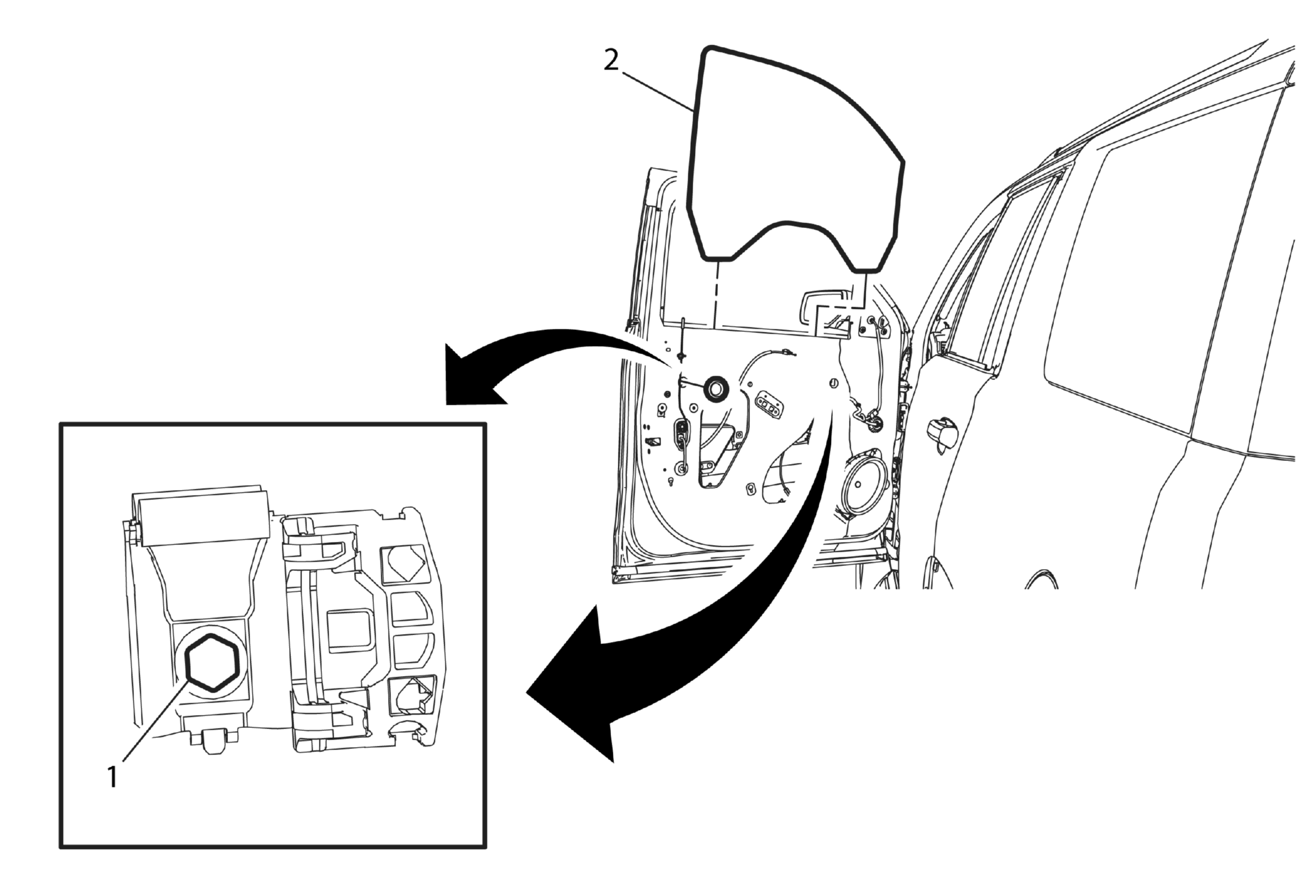

| 1 |
Front Side Door Window Regulator Guide Bolt (Qty: 2)
Procedure
- Use masking tape, tape off the outer door frame to prevent scratching.
- Lower the window to align the guide bolts with the access holes in the inner door panel.
- Remove the access hole plug in the inner door panel, if equipped.
- Loosen the bolts that attach the window to the window regulator guides.
Tighten
11 N.m (97 lb in) |
| 2 |
Front Side Door Window
- In order to remove the window, carefully grasp and tilt the window as you guide the window up and forward.
- Install the window on the guides.
- Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor.
- Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guide. Tighten the bolts to the window guide.
NOTE:
Inspect the window for proper operation before installing the door trim.
|
