Front Side Door Window Channel Retainer Replacement

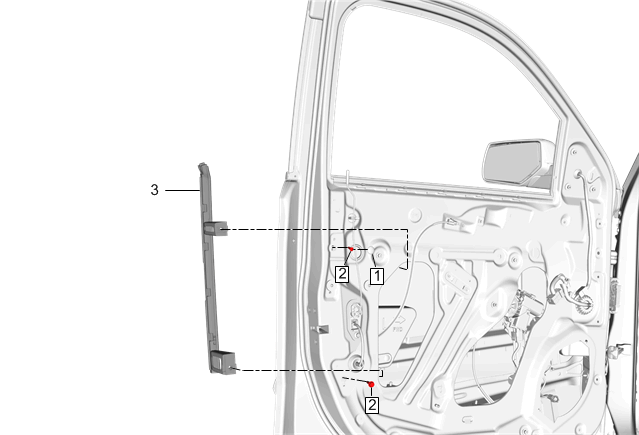

Fig 1: Front Side Door Window Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement . Remove the front side door pull handle bracket. Refer to Front Side Door Pull Handle Bracket Replacement . Remove the front side door water deflector.
1	Front Side Door Access Hole Plug
2	Front Side Door Window Channel Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
3	Front Side Door Window Channel Retainer NOTE: Inspect the window for proper operation before installing the door trim.
