Rear Side Door Window Regulator Replacement

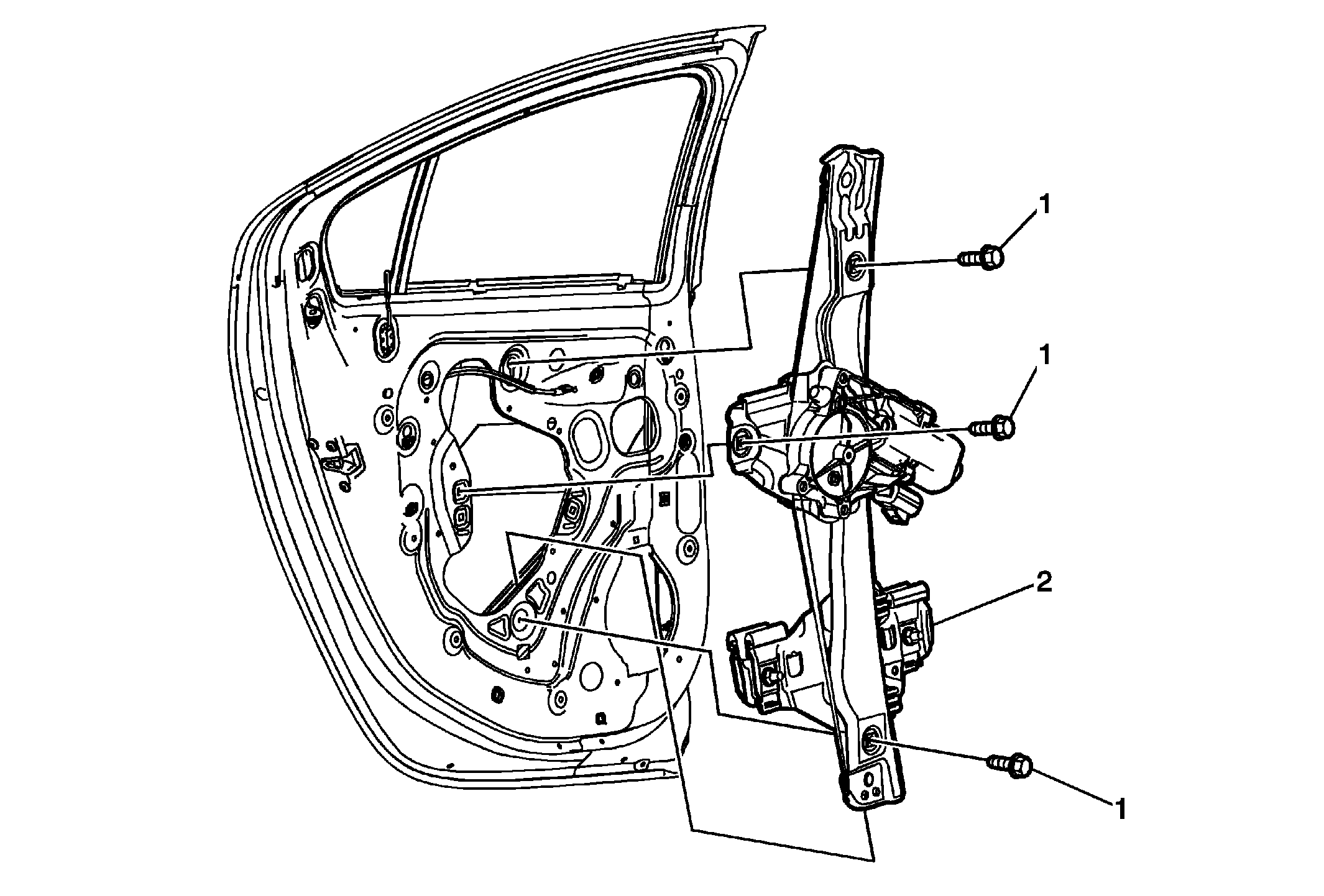

Fig 1: Rear Side Door Window Regulator
GM2374105Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator Replacement

Callout Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.
Preliminary Procedure Loosen the rear side door window from the guide nuts. Do not remove the window from the door. Refer to Rear Side Door Window Replacement .
1 Rear Side Door Window Regulator Bolts (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the door trim panel bracket.
  2. Remove the water deflector.
  3. Do not remove the window guides nuts from the window regulator.
  4. After releasing the window from the guides tape the window to the upper door frame before removing the regulator bolts.
  5. Disconnect the electrical connector.

Tighten
11 N.m (97 lb in)
2 Rear Side Door Window Regulator

Procedure

  1. Remove the window regulator through the opening in the inner panel.
  2. Transfer all parts as necessary.

TIP:  Inspect the window for proper operation before installing the door trim panel.
