Rear Side Door Window Replacement

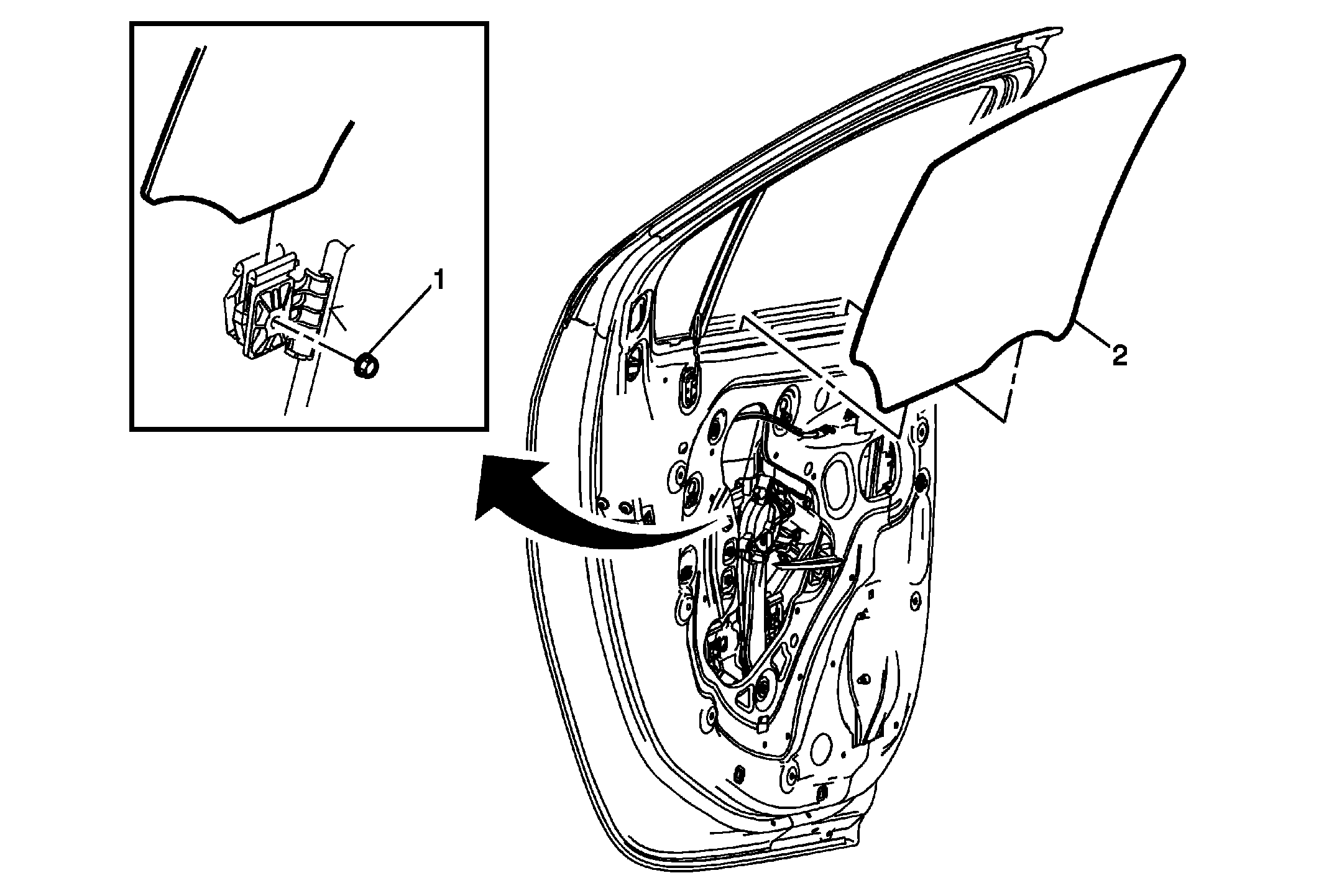

Fig 1: Rear Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. CAUTION: Refer to Paint Damage Caution . Preliminary Procedures Place the window in the full up position. Remove the rear side door window rear channel. Refer to Rear Side Door Window Rear Channel Replacement . Remove the rear side door window upper garnish molding. Refer to Rear Side Door Window Garnish Molding Replacement .
1	Rear Side Door Window Guide Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Use masking tape to tape the window in the full up position to the door frame. Remove the door trim panel bracket. Remove the water deflector. Loosen the window guide retainer nuts through the access holes in the door. Lower the window regulator full down. Remove the masking tape from the window. Slide the window down in the door until the window is free from the rear window channel. Tighten 10 N.m (89 lb in)
2	Rear Side Door Window TIP: Inspect the window for proper operation before install the door trim panel.

Callout

Component Name

WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

CAUTION: Refer to Paint Damage Caution .

Preliminary Procedures

Place the window in the full up position.
Remove the rear side door window rear channel. Refer to Rear Side Door Window Rear Channel Replacement .
Remove the rear side door window upper garnish molding. Refer to Rear Side Door Window Garnish Molding Replacement .

Rear Side Door Window Guide Nuts (Qty: 2)

CAUTION: Refer to Fastener Caution .

Procedure

Use masking tape to tape the window in the full up position to the door frame.
Remove the door trim panel bracket.
Remove the water deflector.
Loosen the window guide retainer nuts through the access holes in the door.
Lower the window regulator full down.
Remove the masking tape from the window.
Slide the window down in the door until the window is free from the rear window channel.

Tighten
10 N.m (89 lb in)

Rear Side Door Window
TIP: Inspect the window for proper operation before install the door trim panel.
