Rear Compartment Lift Window Latch Bracket Replacement

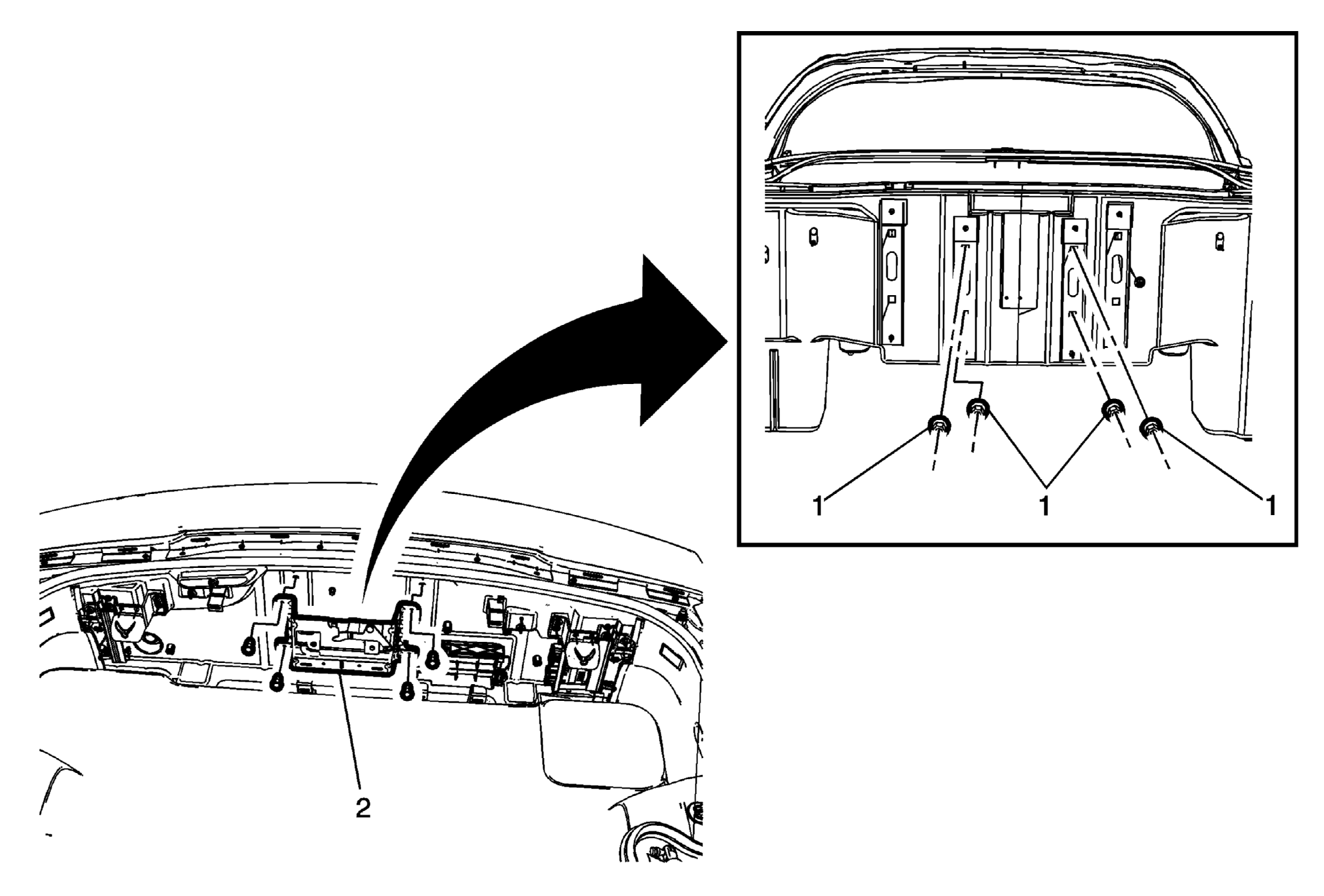

Fig 1: Rear Compartment Lift Window Latch Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lift window latch. Refer to Rear Compartment Lift Window Latch Replacement . Remove the tail lamps. Refer to Rear Fascia Lower Signal Lamp Replacement .
1	Rear Compartment Lift Window Latch Bracket Nut (Qty:4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Compartment Lift Window Latch Bracket

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lift window latch. Refer to Rear Compartment Lift Window Latch Replacement .
Remove the tail lamps. Refer to Rear Fascia Lower Signal Lamp Replacement .

Rear Compartment Lift Window Latch Bracket Nut (Qty:4)

CAUTION:

Tighten
10 N.m (89 lb in)

Rear Compartment Lift Window Latch Bracket
