Rear Compartment Lift Window Latch Replacement
Rear Compartment Lift Window Latch Replacement

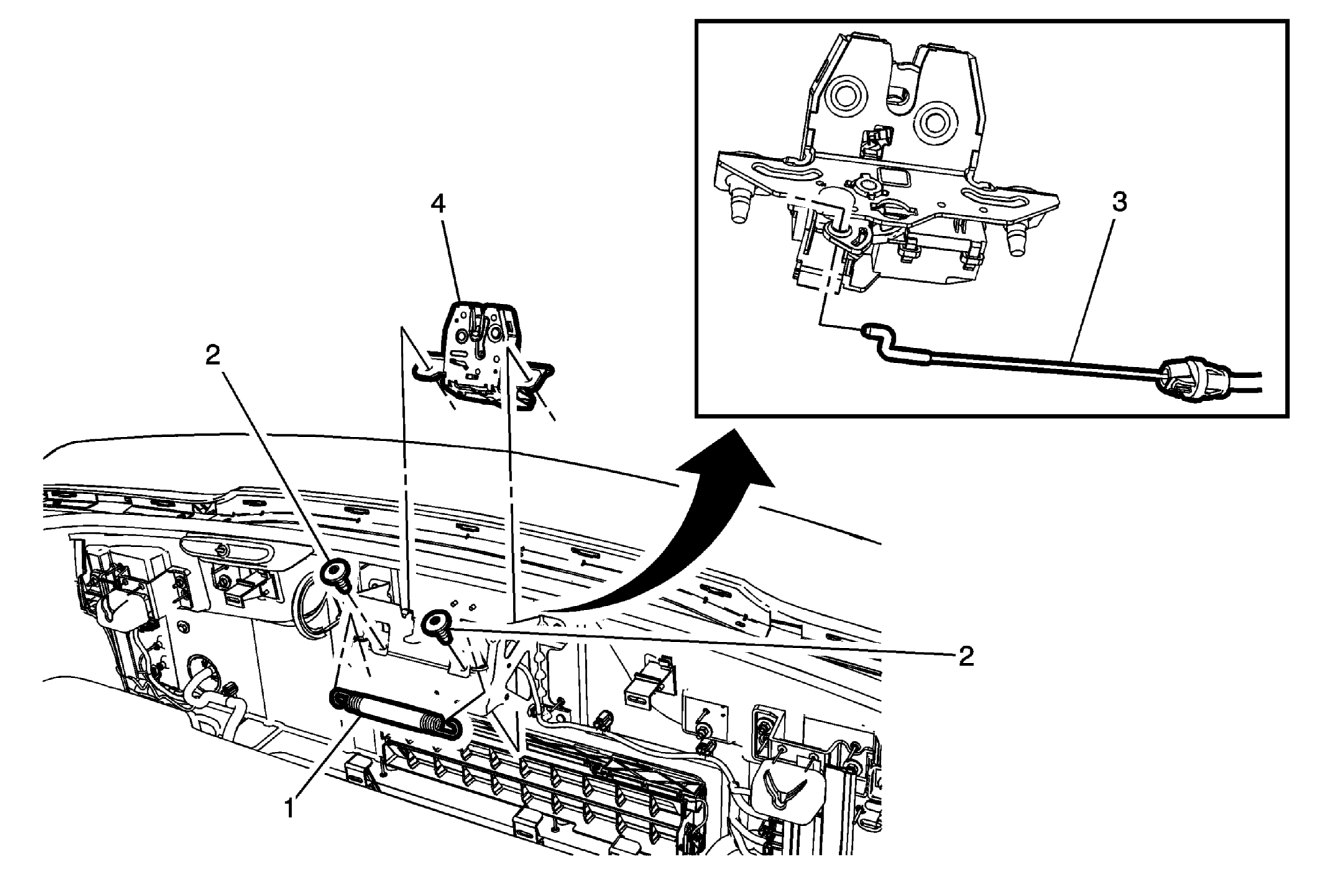

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio rear speaker. Refer to Radio Rear Speaker Replacement (Coupe, Left Side) , Radio Rear Speaker Replacement (Coupe, Right Side) , Radio Rear Speaker Replacement (Convertible) . |
|
| 1 | Rear Compartment Lift Window Latch Spring |
| 2 | Rear Compartment Lift Window Latch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Rear Compartment Lid Lock Cylinder Cable |
| 4 | Rear Compartment Lift Window Latch Procedure Disconnect the electrical connector. |
