Front Floor Console Retainer Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Retainer Replacement

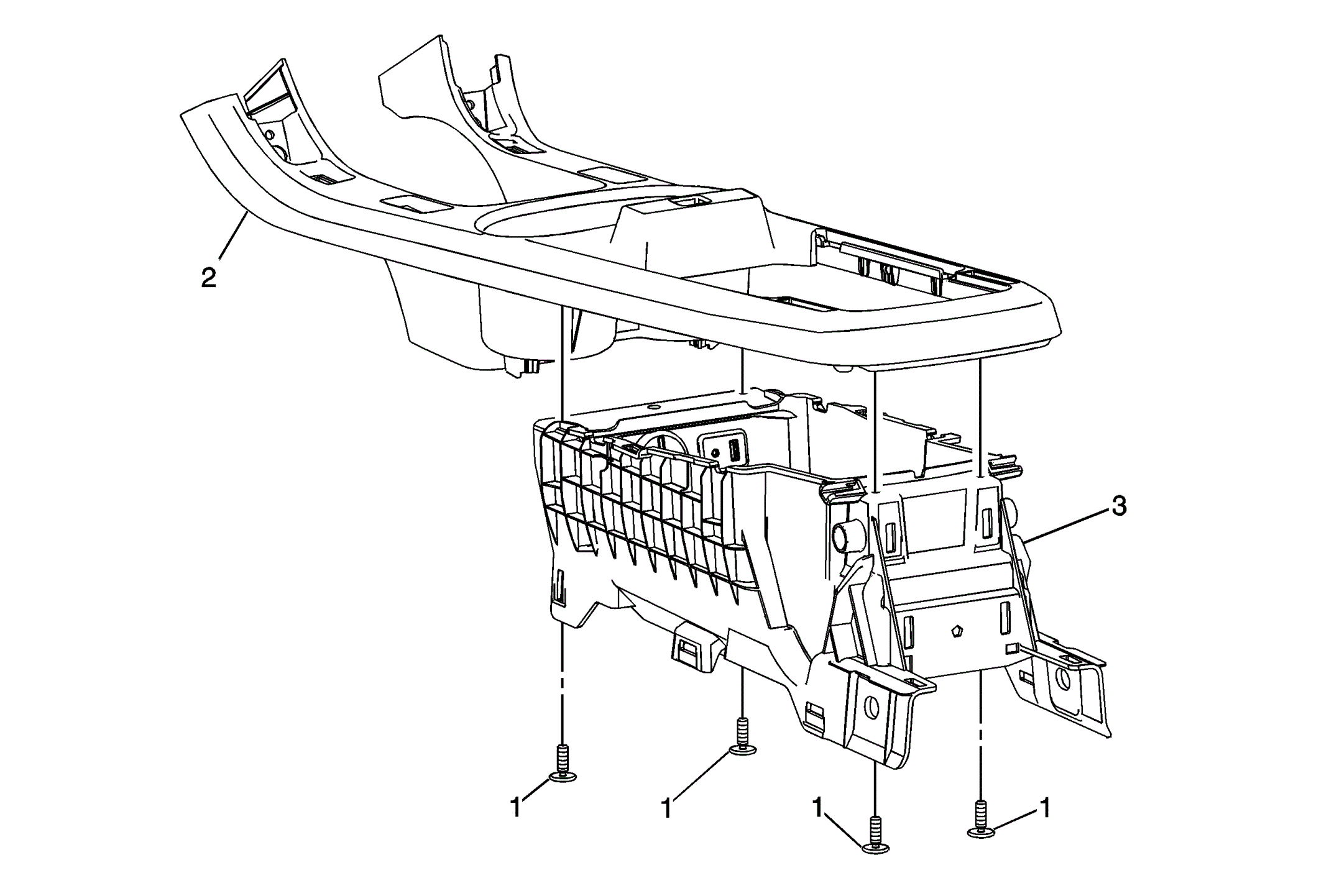

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console armrest assembly. Refer to Front Floor Console Armrest Replacement . |
|
| 1 | Front Floor Console Trim Plate Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Floor Console Trim Plate Assembly |
| 3 | Front Floor Console Retainer Assembly |
