Front Floor Console Armrest Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

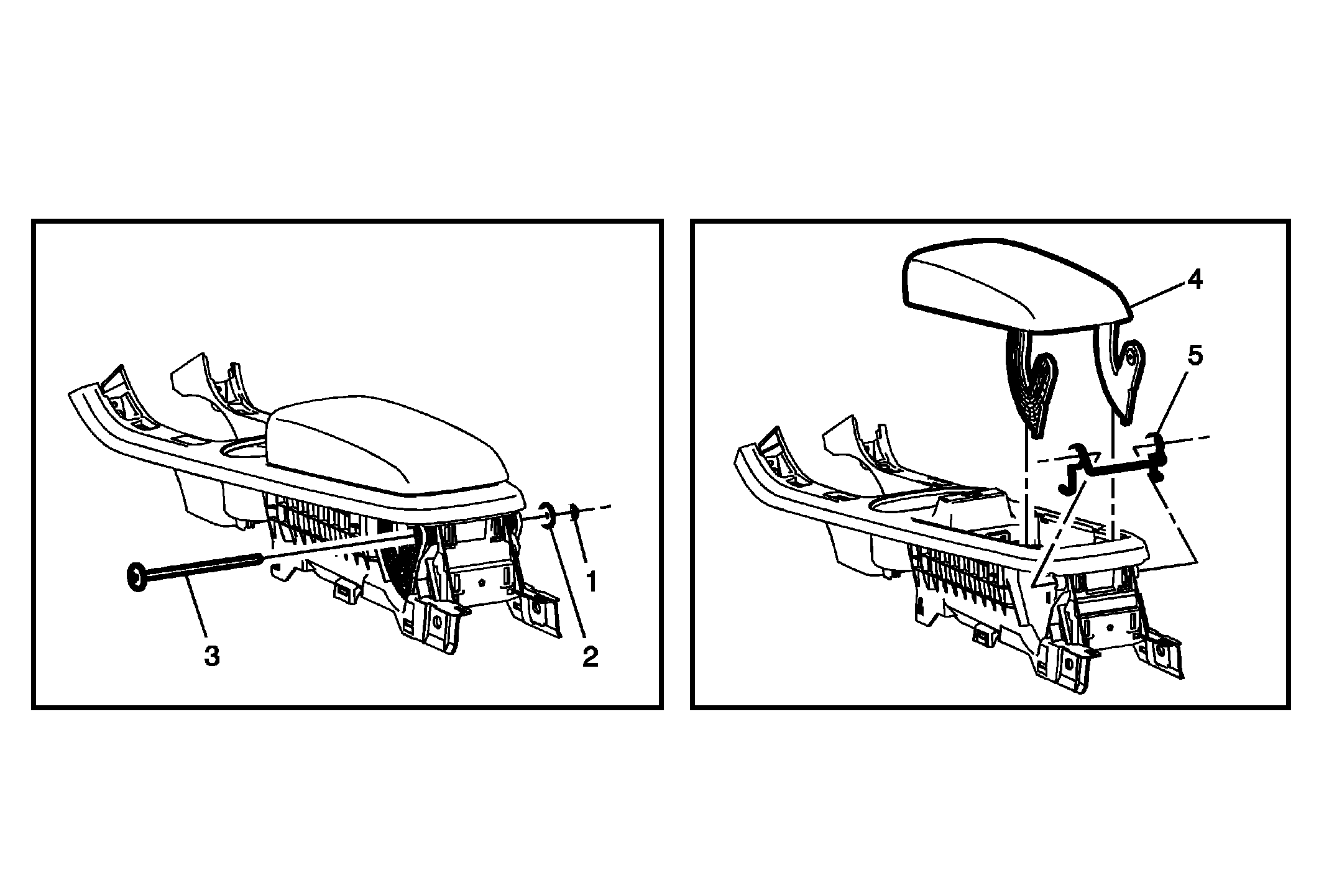

Fig 1: Front Floor Console Armrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console from the vehicle. Refer to Front Floor Console Replacement . Remove the right and left front floor console side covers. Refer to Front Floor Console Side Cover Replacement .
1	Front Floor Console Armrest Hinge Pin Retainer
2	Front Floor Console Armrest Hinge Pin Washer
3	Front Floor Console Armrest Hinge Pin
4	Front Floor Console Armrest Assembly
5	Front Floor Console Compartment Door Spring
