Front Floor Console Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

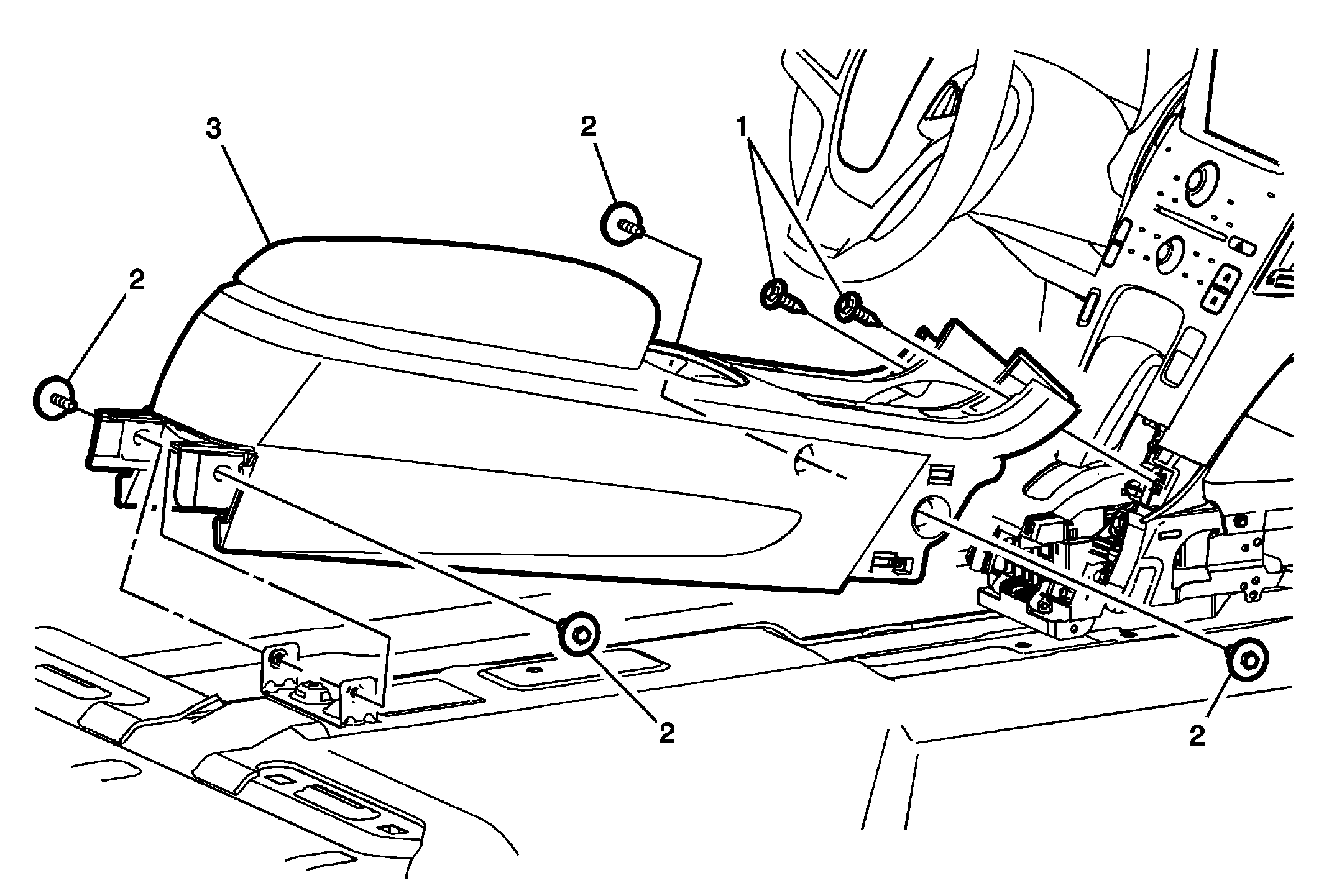

Fig 1: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor rear console assembly. Refer to Front Floor Rear Console Replacement . Remove the front floor console applique. Refer to Front Floor Console Applique Replacement . Remove the left and right front floor console extensions. Refer to Front Floor Console Extension Replacement - Left Side , and Front Floor Console Extension Replacement - Right Side .
1	Front Floor Console Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Bolt (Qty: 4) Tighten 9 N.m (80 lb in)
3	Front Floor Console Assembly Procedures Disconnect the electrical connections. When replacing the front floor console assembly, transfer all necessary components.
