Air Inlet Grille Panel Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

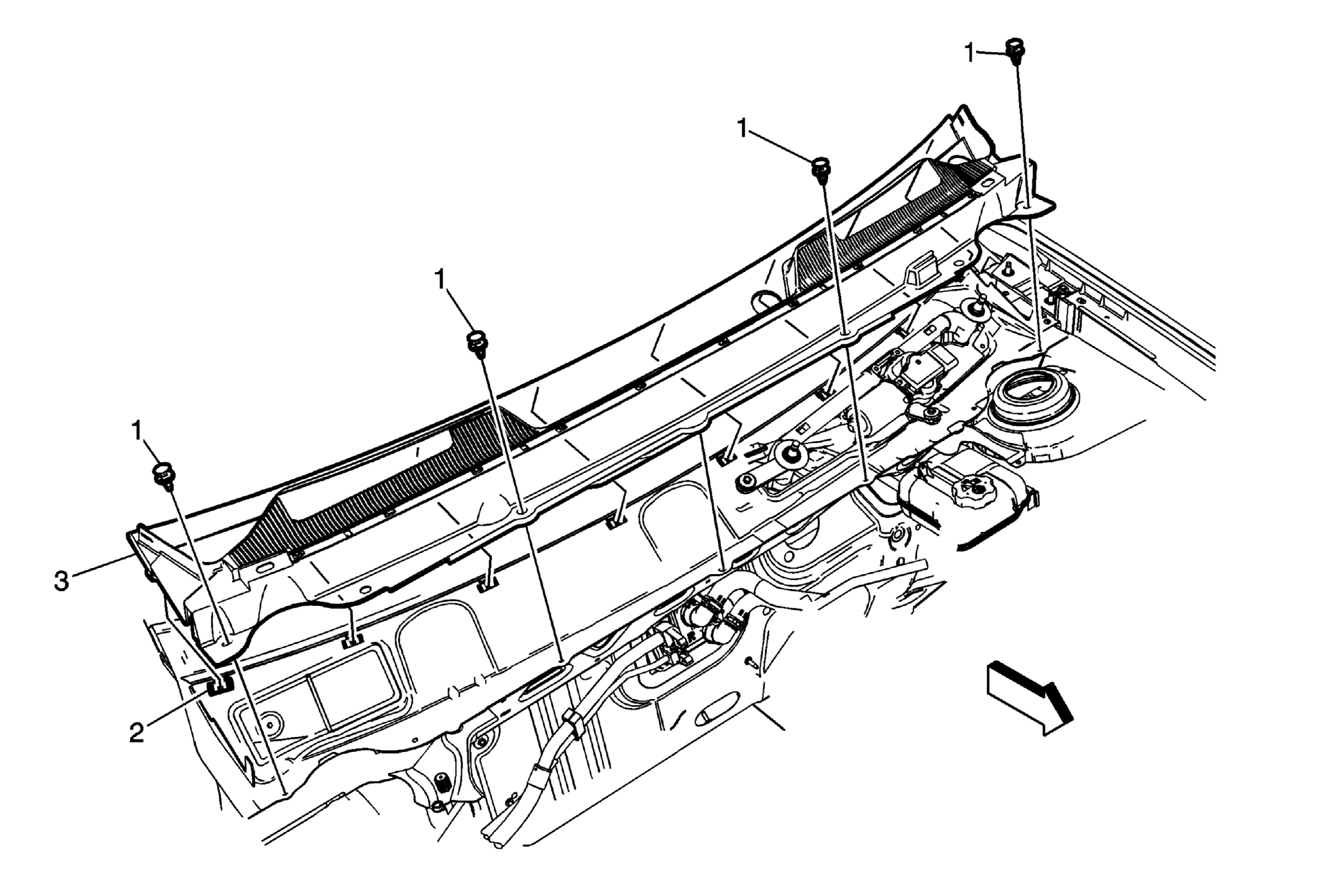

Fig 1: View Of Air Inlet Grille Panel, Clips & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment side sight shields. Refer to Front Compartment Side Sight Shield Replacement . Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement . Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement . Remove the rear hood weather-strip. Refer to Hood Rear Weatherstrip Replacement .
1	Air Inlet Grille Panel Retainer (Qty: 4)
2	Air Inlet Grille Panel Clip (Qty: 8)
3	Air Inlet Grille Panel
