Air Inlet Grille Panel Extension Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

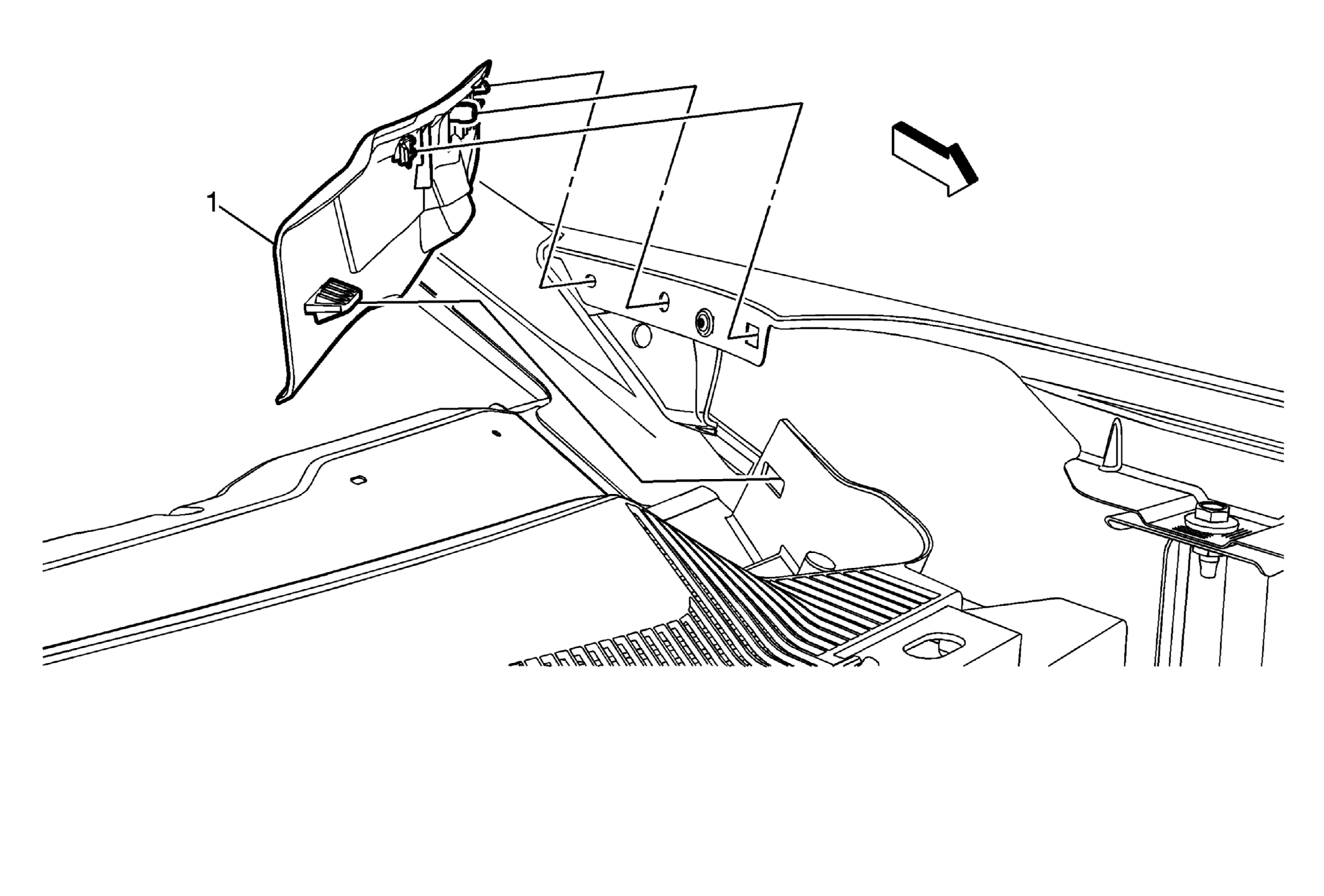

Fig 1: View Of Air Inlet Grille Panel Extension

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open the hood in order to access the air inlet grille panel extension.
1	Air Inlet Grille Panel Extension Procedure Release the tabs securing the air inlet grille panel extension to the air inlet grille panel assembly and fender.
