Rear Side Door Window Regulator Replacement
Rear Side Door Window Regulator Replacement

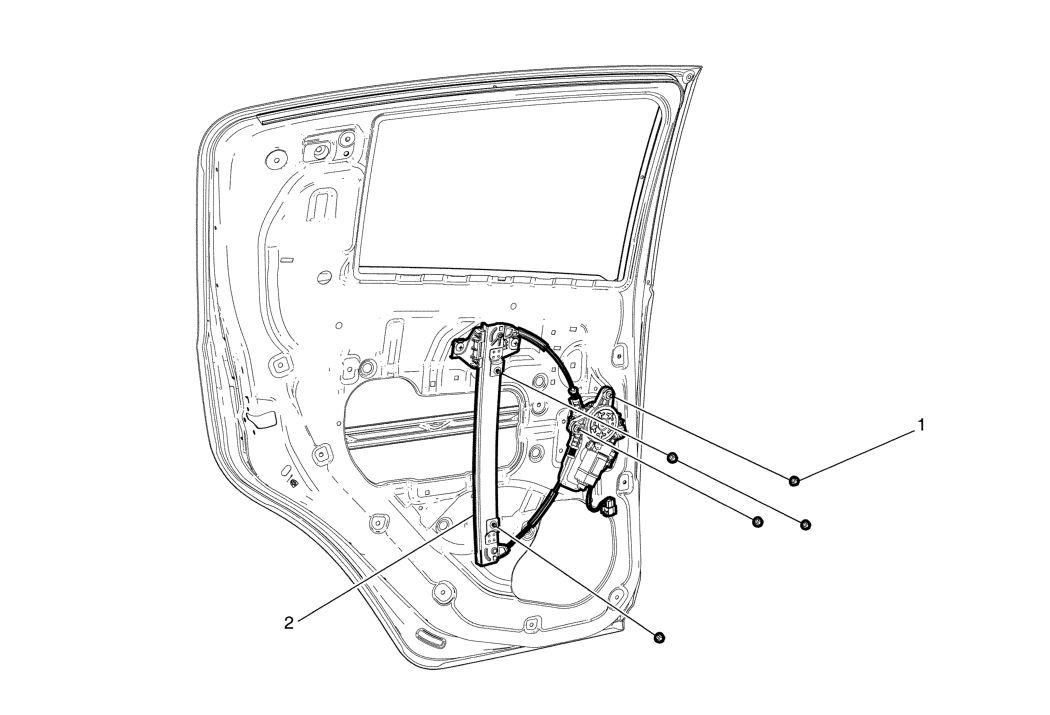

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear side door window. Refer to Rear Side Door Window Replacement . |
|
| 1 | Rear Side Door Window Regulator Nut (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Rear Side Door Window Regulator Assembly |
