Rear Side Door Window Replacement

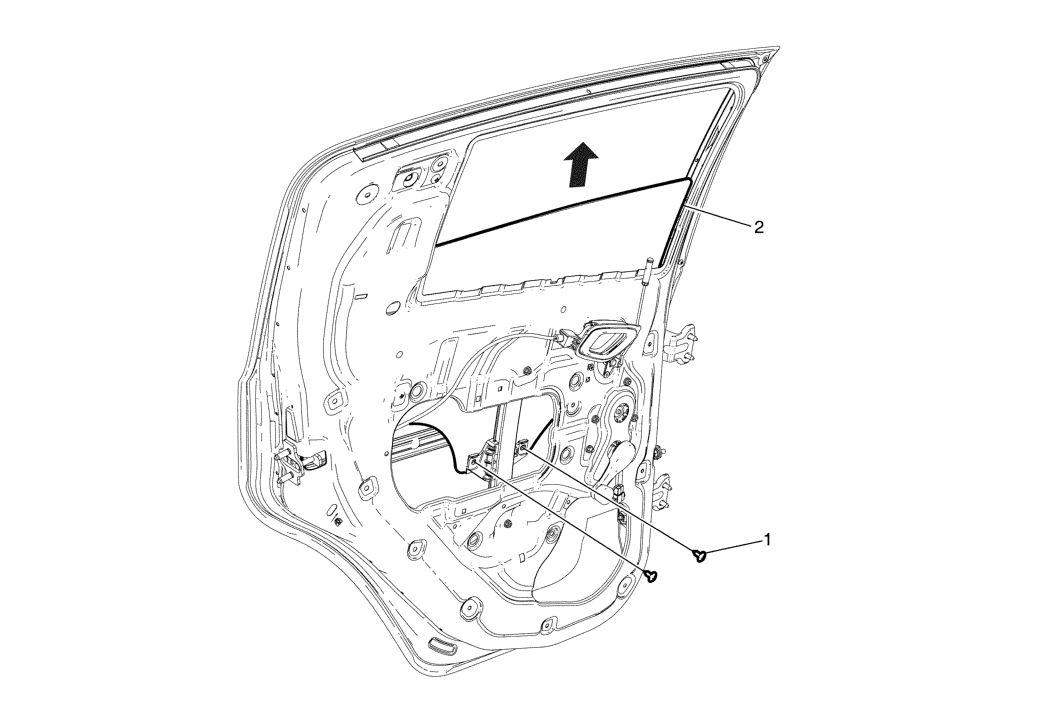

Fig 1: Rear Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Position the window approximately half way down in the door. Remove the water deflector. Remove the outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .
1	Rear Side Door Window Regulator Sash Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Rear Side Door Window Procedure Loosen the window regulator sash nuts, pull upward to release the window from the sash. Rotate the rear door window as necessary to remove it from the door.

Callout

Component Name

Preliminary Procedure

Position the window approximately half way down in the door.
Remove the water deflector.
Remove the outer sealing strip. Refer to Front Side Door Window Outer Sealing Strip Replacement .

Rear Side Door Window Regulator Sash Screw (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Rear Side Door Window

Procedure

Loosen the window regulator sash nuts, pull upward to release the window from the sash.
Rotate the rear door window as necessary to remove it from the door.
