Rear Side Door Window Channel Replacement

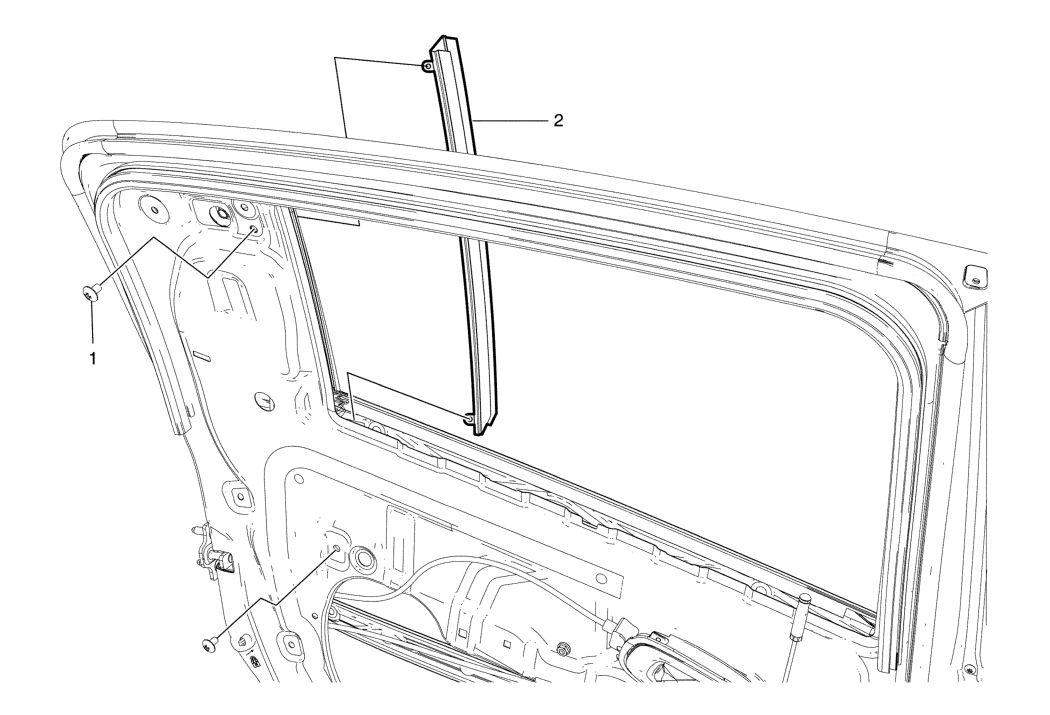

Fig 1: Rear Side Door Window Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Channel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Rear Side Door Window Channel Assembly
