Installation Procedure

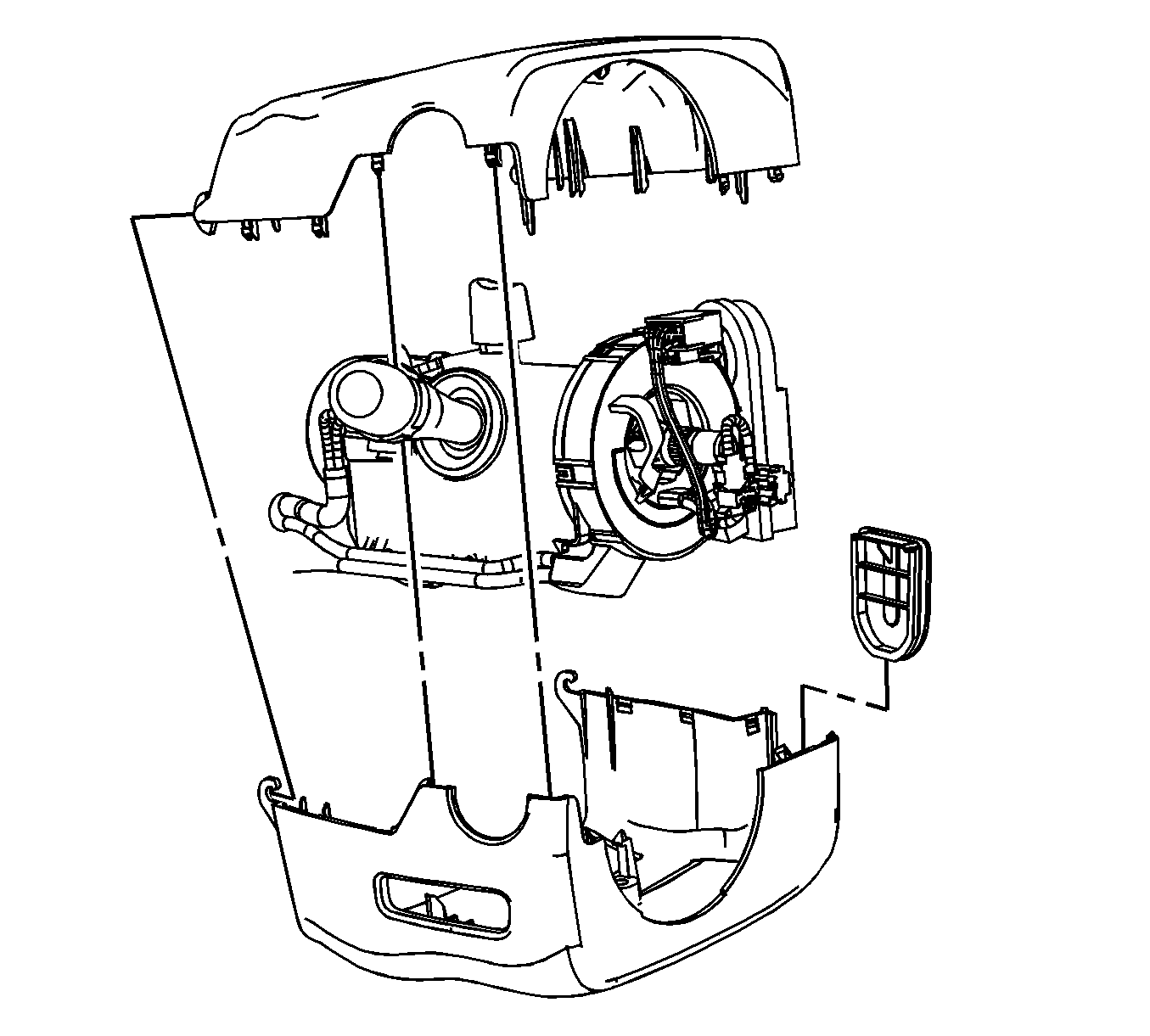

    Fig 1: View Of Upper & Lower Steering Column Cover & Steering Column
    GM1837590Courtesy of GENERAL MOTORS COMPANY
  1. Position the upper steering column trim cover and the lower steering column trim cover together on the steering column.

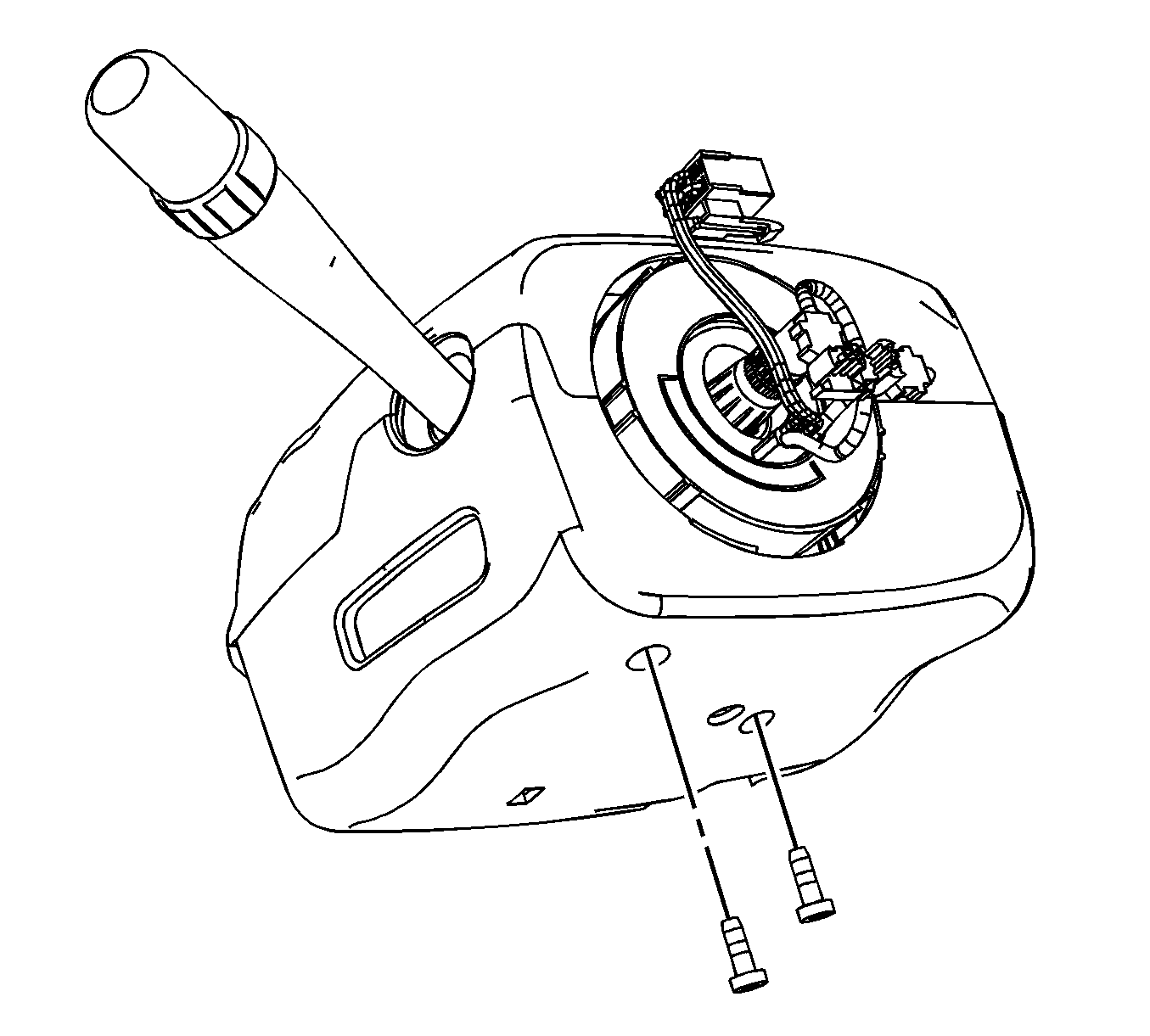

    2. Fig 2: View Of Lower Steering Column Trim Cover & Retaining Screws
    GM1837562Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the steering column trim cover bolts and tighten to 3 N.m (27 lb in).

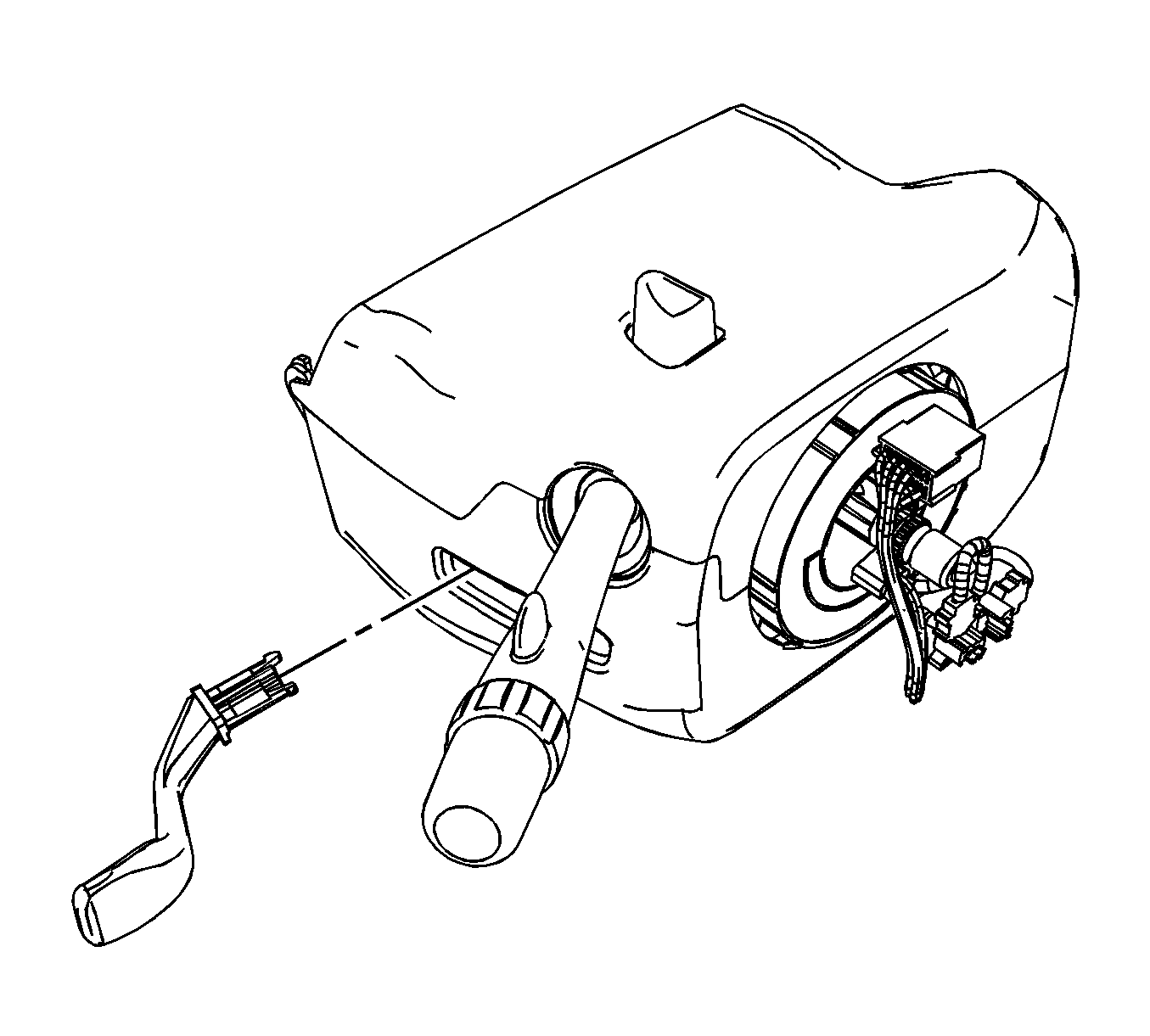

    3. Fig 3: View Of Tilt Lever
    GM1837542Courtesy of GENERAL MOTORS COMPANY
  3. Install the tilt lever.
  4. Install the steering column opening filler. Refer to Steering Column Opening Filler Replacement .
  5. Install the steering wheel. Refer to Steering Wheel Replacement .
