Steering Wheel Replacement

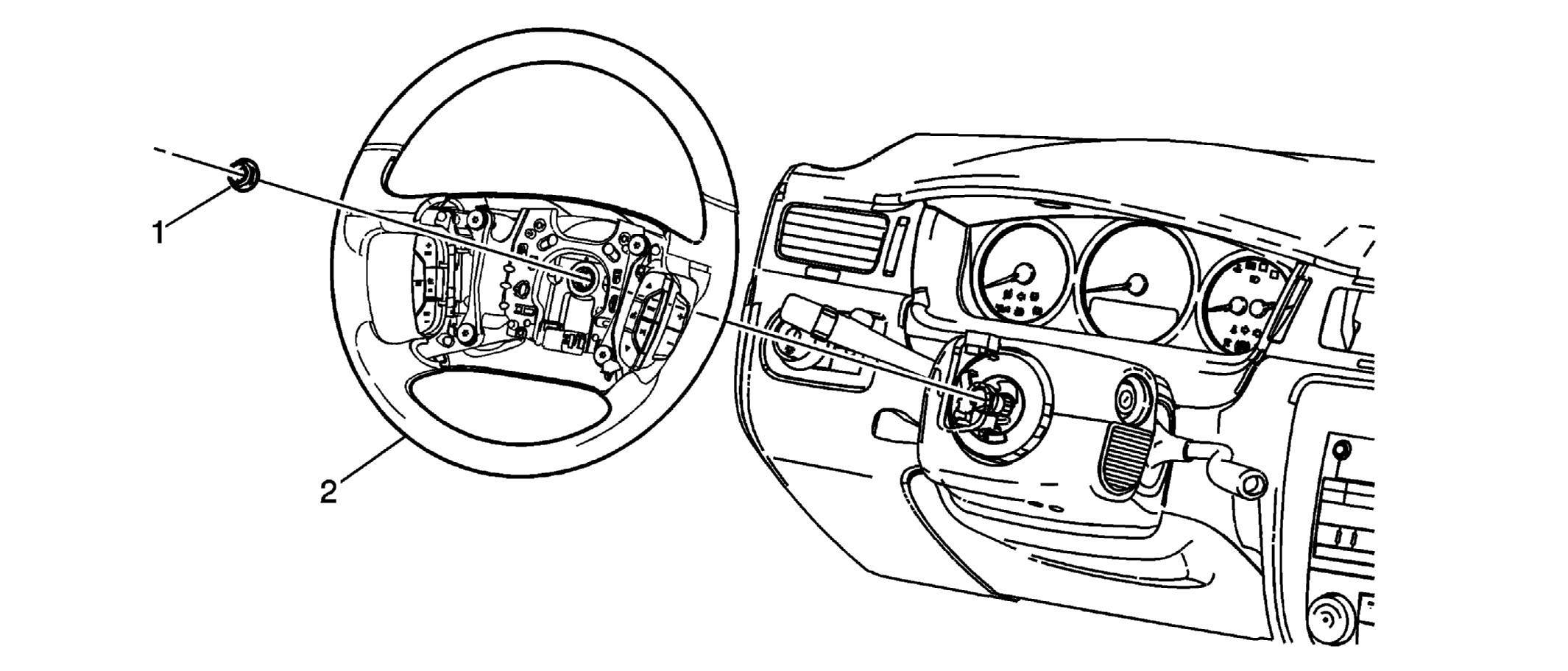

Fig 1: Steering Wheel & Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten 41 N.m (30 lb ft)
2	Steering Wheel Procedure Disconnect any electrical connectors as needed. Use the J 1859-A puller and the J 42578 legs to remove the steering wheel. Special Tools J 1859-A Steering Wheel Puller J 42578 Steering Wheel Puller Legs For regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Nut

CAUTION:

Tighten
41 N.m (30 lb ft)

Steering Wheel

Procedure

Special Tools

For regional tools, refer to Special Tools .
