Front Side Door Window Regulator Replacement

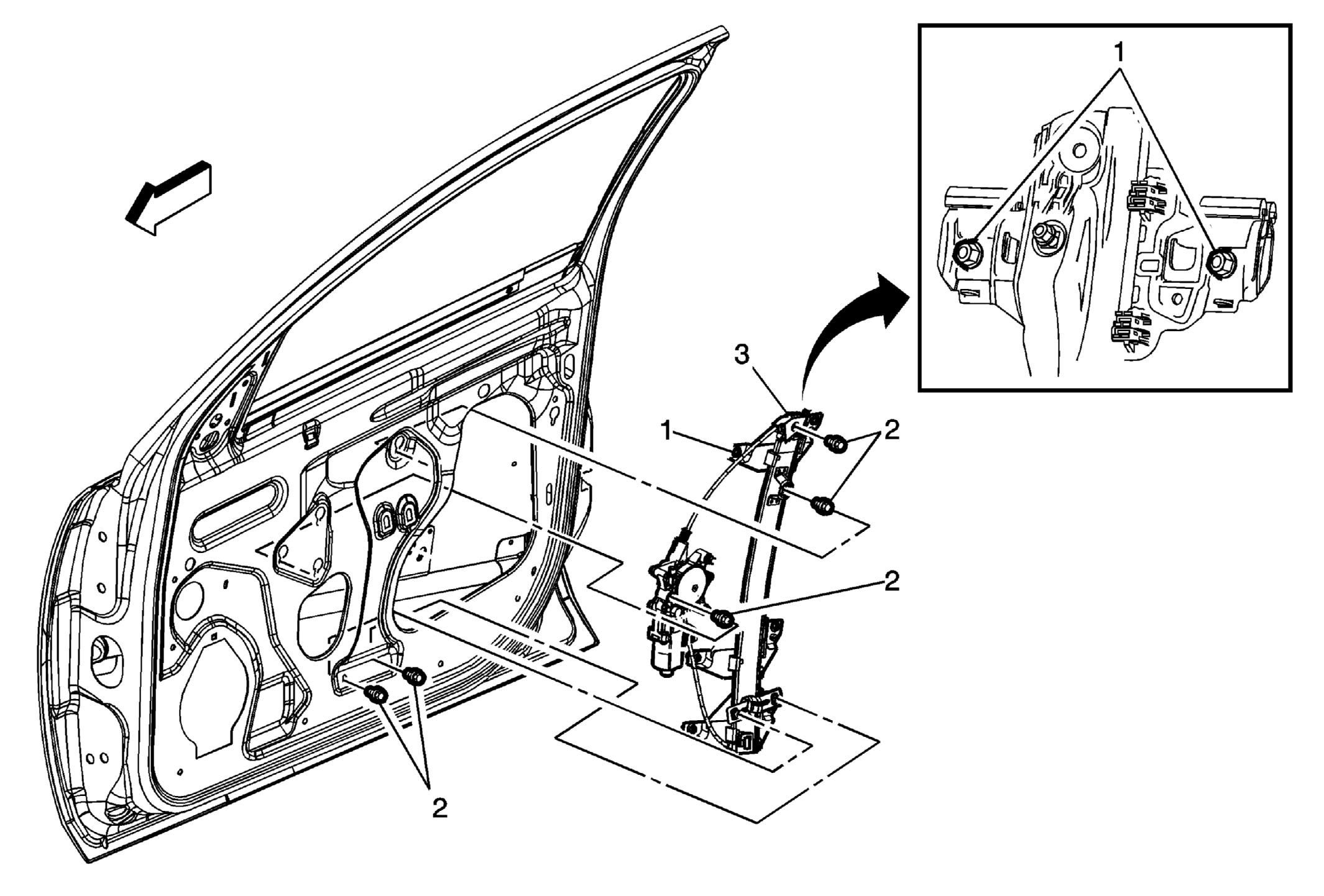

Fig 1: Front Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window from the regulator guide bolts. Do Not remove the window from the vehicle, raise the window to the fully up position, tape in place. Refer to Front Side Door Window Replacement .
1	Front Side Door Window Regulator to Guide Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Disconnect the electrical connector from the window regulator motor. Tighten 5 N.m (44 lb in)
2	Front Side Door Window Regulator Screw (Qty: 5) Tighten 10 N.m (89 lb in)
3	Front Side Door Window Regulator Procedure Transfer parts as necessary. Inspect the door window for proper operation before installing the door trim panel.
