Front Side Door Window Replacement

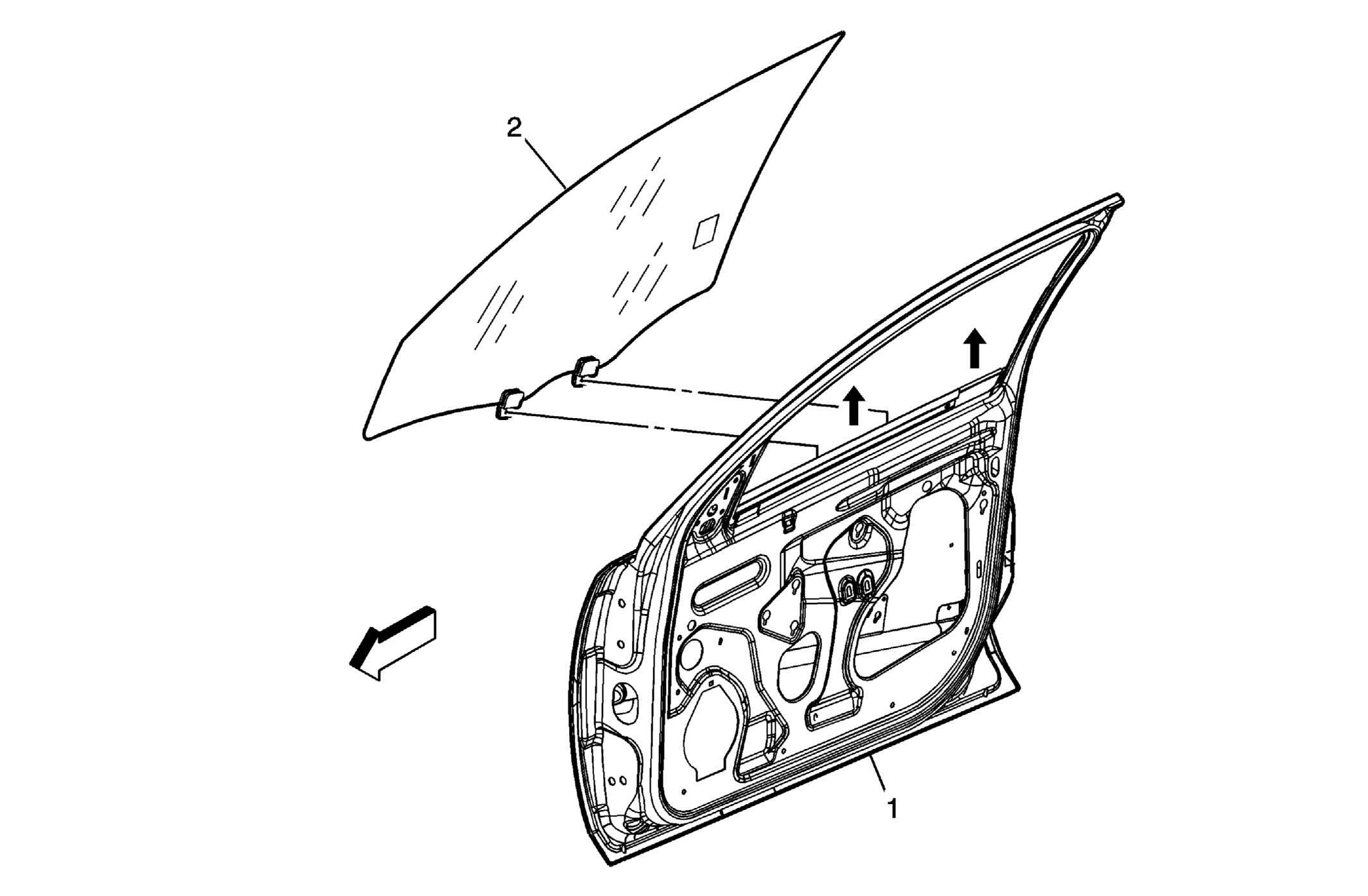

Fig 1: Front Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement (Impala) . Tape the window to door frame to prevent it from moving. Remove the inside sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
1	Front Side Door Window to Regulator Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window TIP: Remove the window from the outside of the door, tape the frame as needed.

Callout

Component Name

Preliminary Procedures

Position window approximately half way down in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement (Impala) .
Tape the window to door frame to prevent it from moving.
Remove the inside sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .

Front Side Door Window to Regulator Bolts (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Front Side Door Window
TIP: Remove the window from the outside of the door, tape the frame as needed.
