Front Side Door Window Regulator Motor Replacement

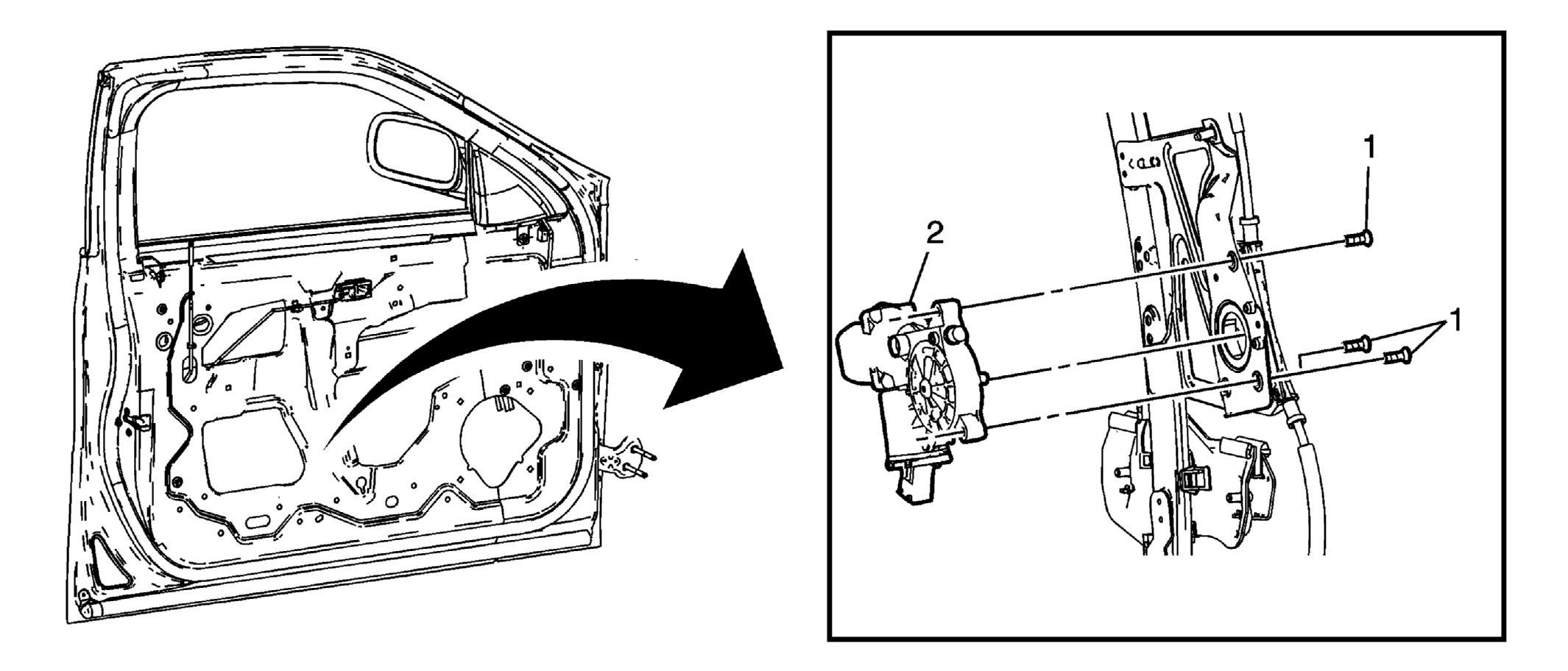

Fig 1: View Of Front Side Door Window Regulator Motor & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Disconnect the electrical connector from the window regulator motor. Tighten 4.6 N.m (41 lb in)
2	Front Side Door Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

Preliminary Procedure
Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .

Front Side Door Window Regulator Motor Screw (Qty: 3)

CAUTION:

Procedure

Tighten
4.6 N.m (41 lb in)

Front Side Door Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim panel.
