Outside Rearview Mirror Applique Replacement

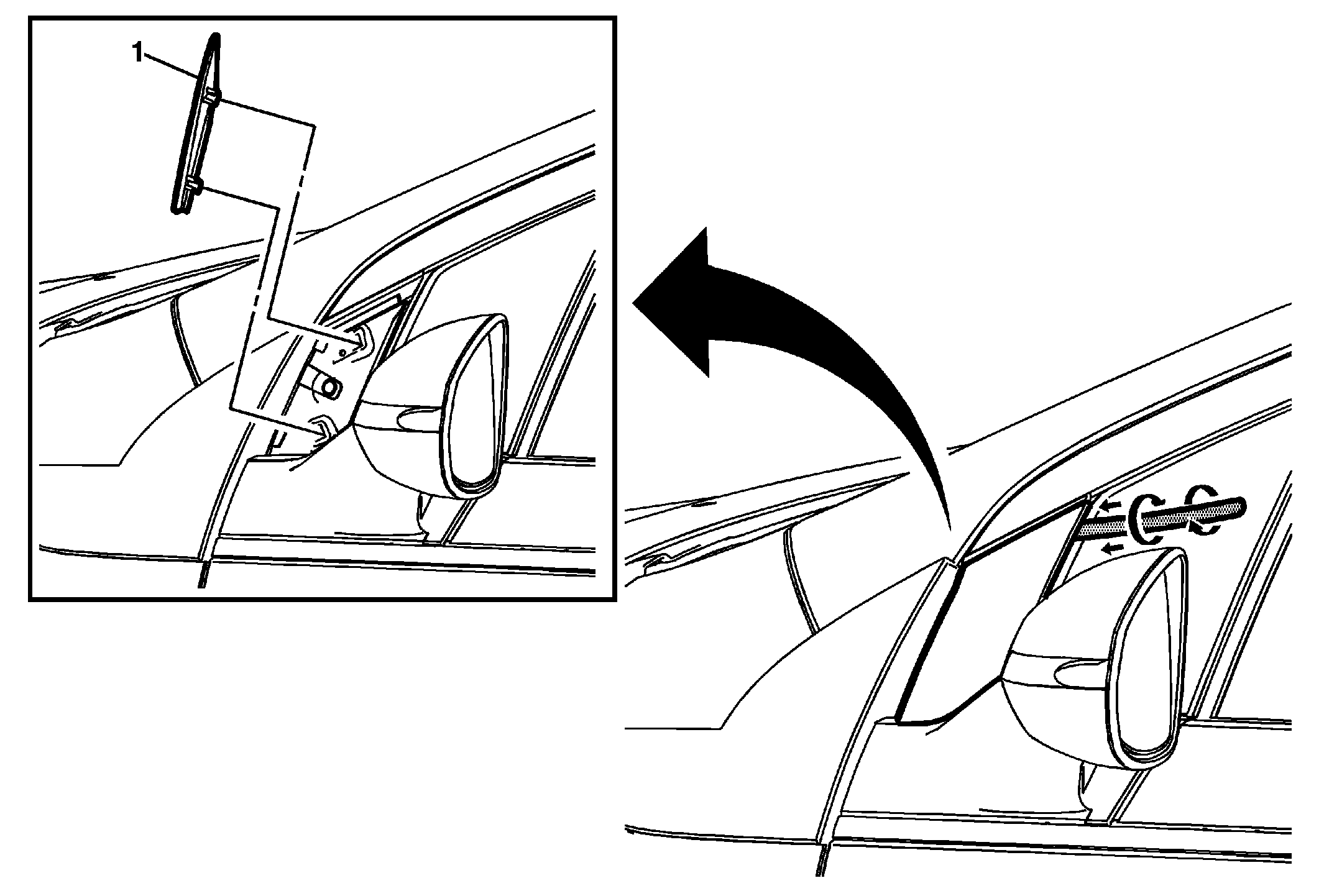

Fig 1: Outside Rearview Mirror Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Applique Procedure It's necessary to remove the outside rearview mirror, loosen the bolts to allow the mirror to move. Refer to Outside Rearview Mirror Replacement . Insert a plastic tool between the door frame and the edge of the mirror applique. Push inward, turn clockwise releasing the retaining clips from the door frame. It may be necessary to remove the old retaining clips from the door frame. When reinstalling the applique, set the bottom of the applique in first then rotate the part into place clipping the top first then the bottom.

Callout

Component Name

Outside Rearview Mirror Applique

Procedure

It's necessary to remove the outside rearview mirror, loosen the bolts to allow the mirror to move. Refer to Outside Rearview Mirror Replacement .
Insert a plastic tool between the door frame and the edge of the mirror applique.
Push inward, turn clockwise releasing the retaining clips from the door frame.
It may be necessary to remove the old retaining clips from the door frame.
When reinstalling the applique, set the bottom of the applique in first then rotate the part into place clipping the top first then the bottom.
