Tail Lamp Bulb Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

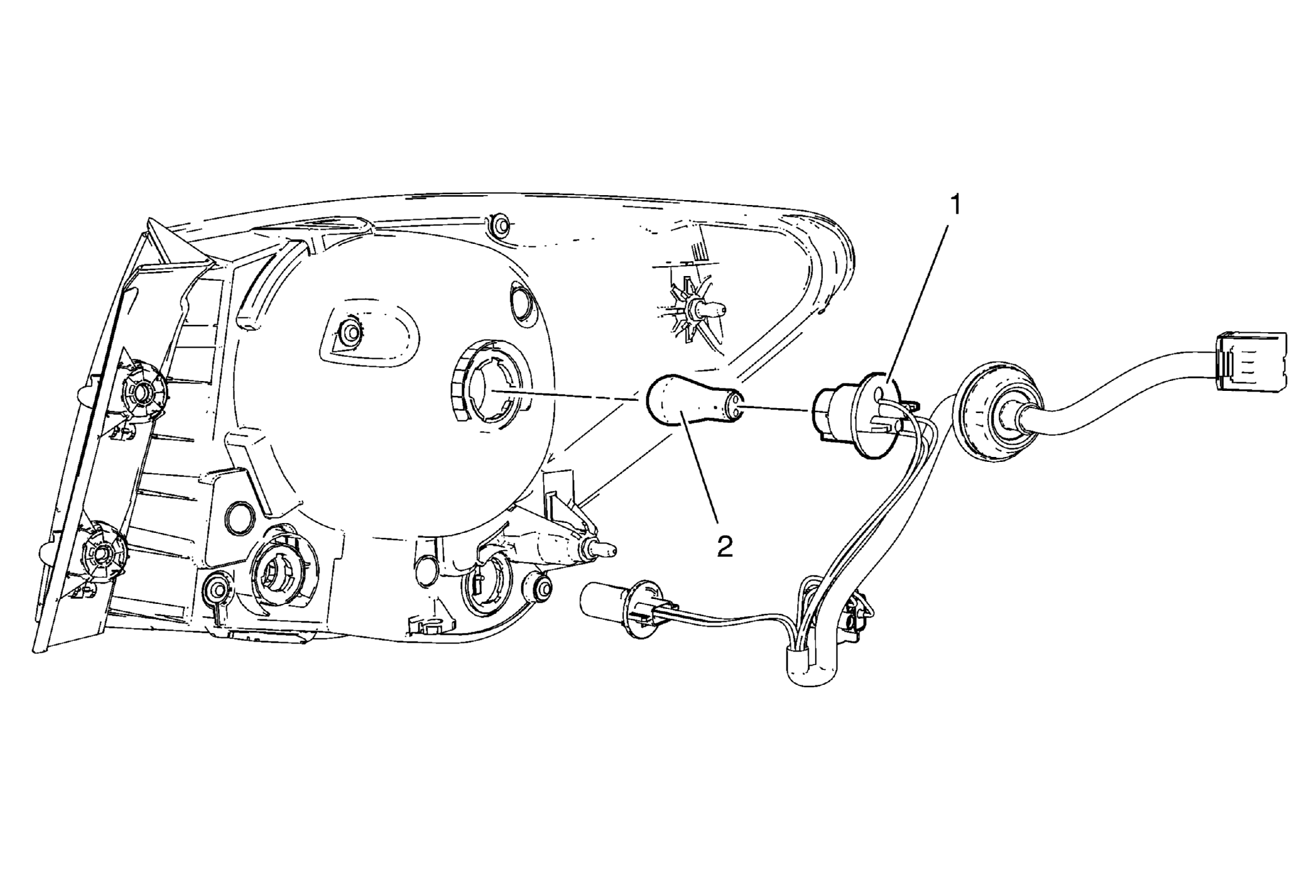

Fig 1: Tail Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the tail lamp assembly. Refer to Tail Lamp Replacement .
1	Tail Lamp Bulb Harness Socket Procedure: Rotate the bulb socket from the tail lamp housing.
2	Tail Lamp Bulb Procedure: Pull the bulb straight from the lamp harness socket.
