Tail Lamp Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

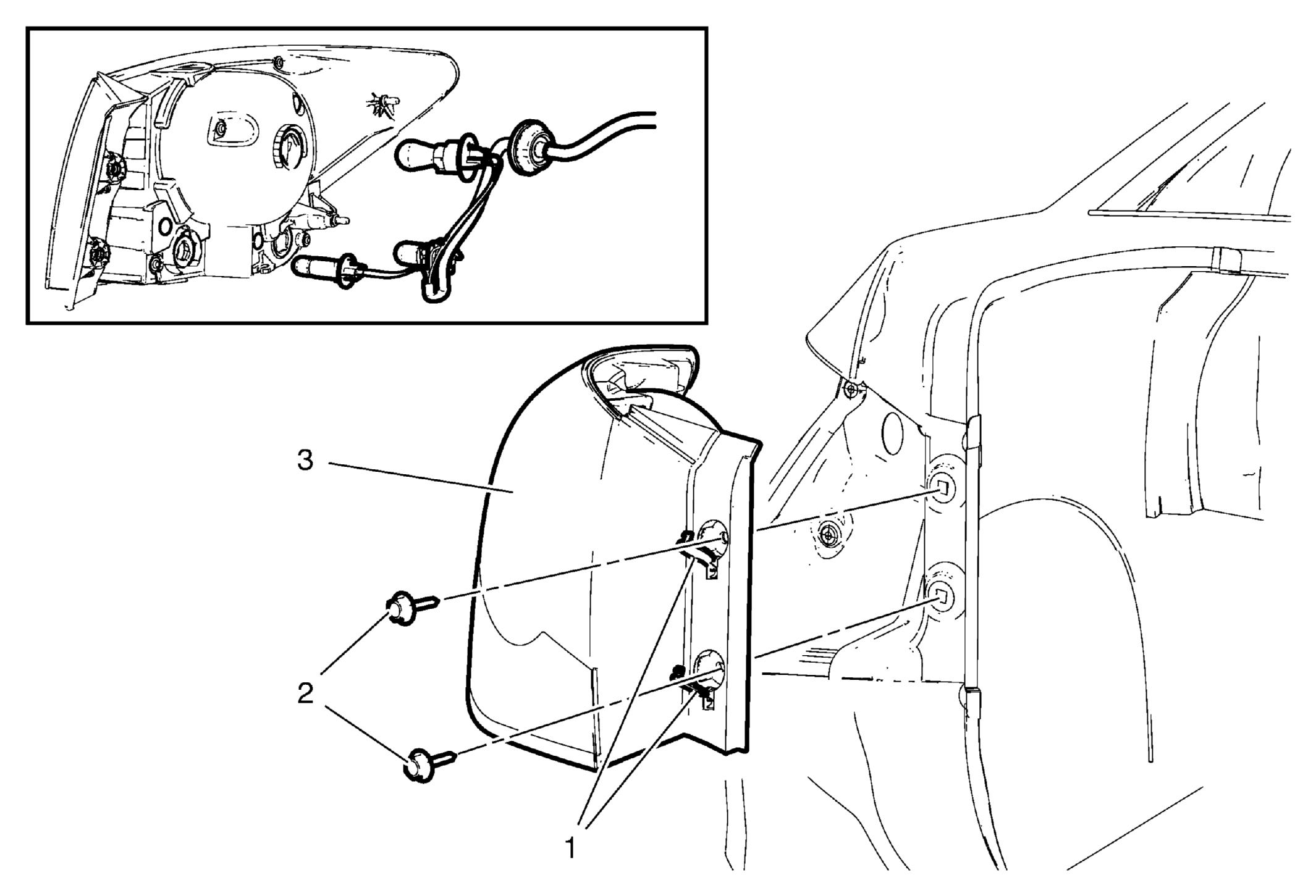

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Open and support the rear compartment lid.
1	Tail Lamp Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb ft)
2	Tail Lamp Control Module with Bulb Assembly Procedure Rotate the control module with bulbs counterclockwise and remove from the tail lamp housing. Disconnect electrical connectors.
3	Tail Lamp Assembly WARNING: Refer to Halogen Bulb Warning . Procedure Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket. Pull the tail lamp assembly rearward. Disconnect the tail lamp control module.
