Knuckle Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

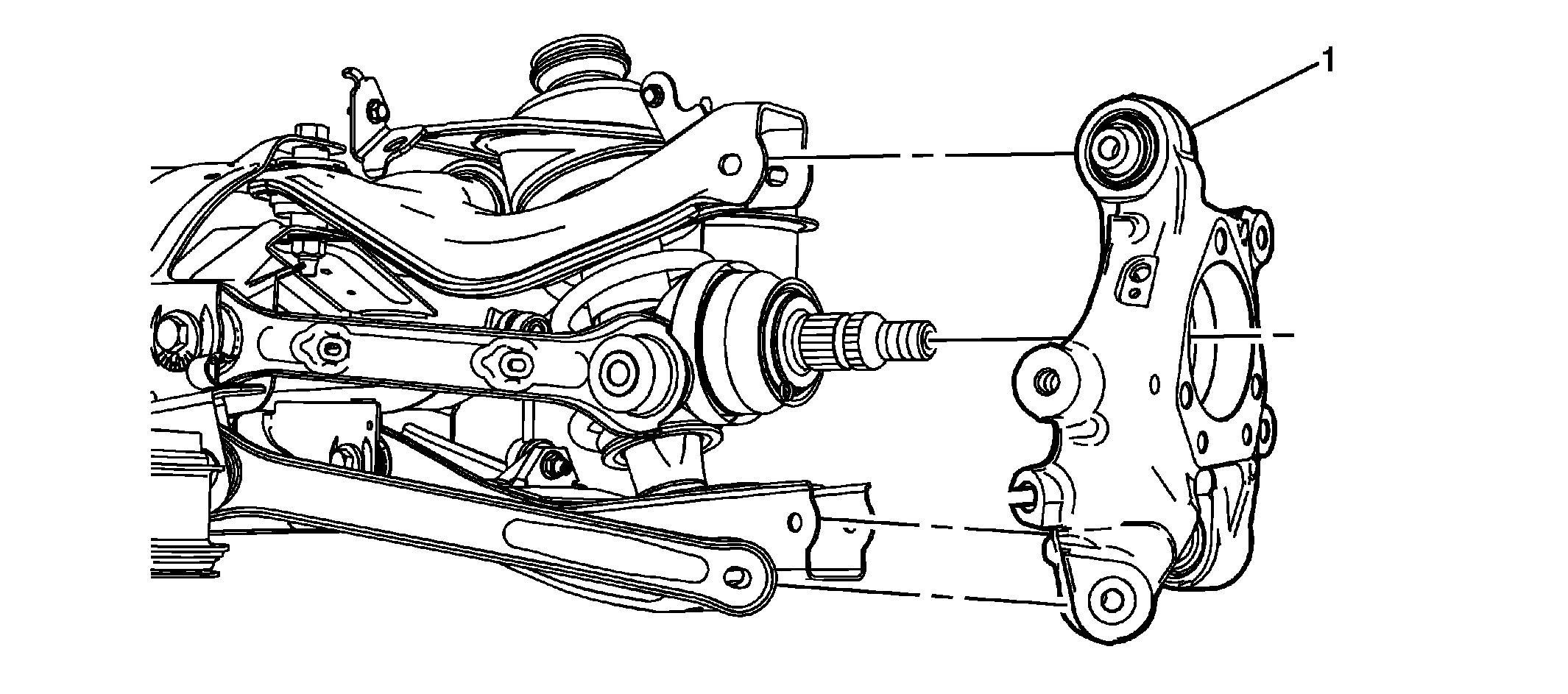

Fig 1: Knuckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement . Remove the rear upper control arm bolt at the knuckle. Refer to Upper Control Arm Replacement Remove the adjustable link bolt at the knuckle. Refer to Adjust Link Replacement . Remove the rear trailing arm bolt and nut. Refer to Trailing Arm Replacement . Remove the rear lower control arm bolt and nut. Refer to Lower Control Arm Replacement .
1	Rear Suspension Knuckle

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .
Remove the rear upper control arm bolt at the knuckle. Refer to Upper Control Arm Replacement
Remove the adjustable link bolt at the knuckle. Refer to Adjust Link Replacement .
Remove the rear trailing arm bolt and nut. Refer to Trailing Arm Replacement .
Remove the rear lower control arm bolt and nut. Refer to Lower Control Arm Replacement .

Rear Suspension Knuckle
