Trailing Arm Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

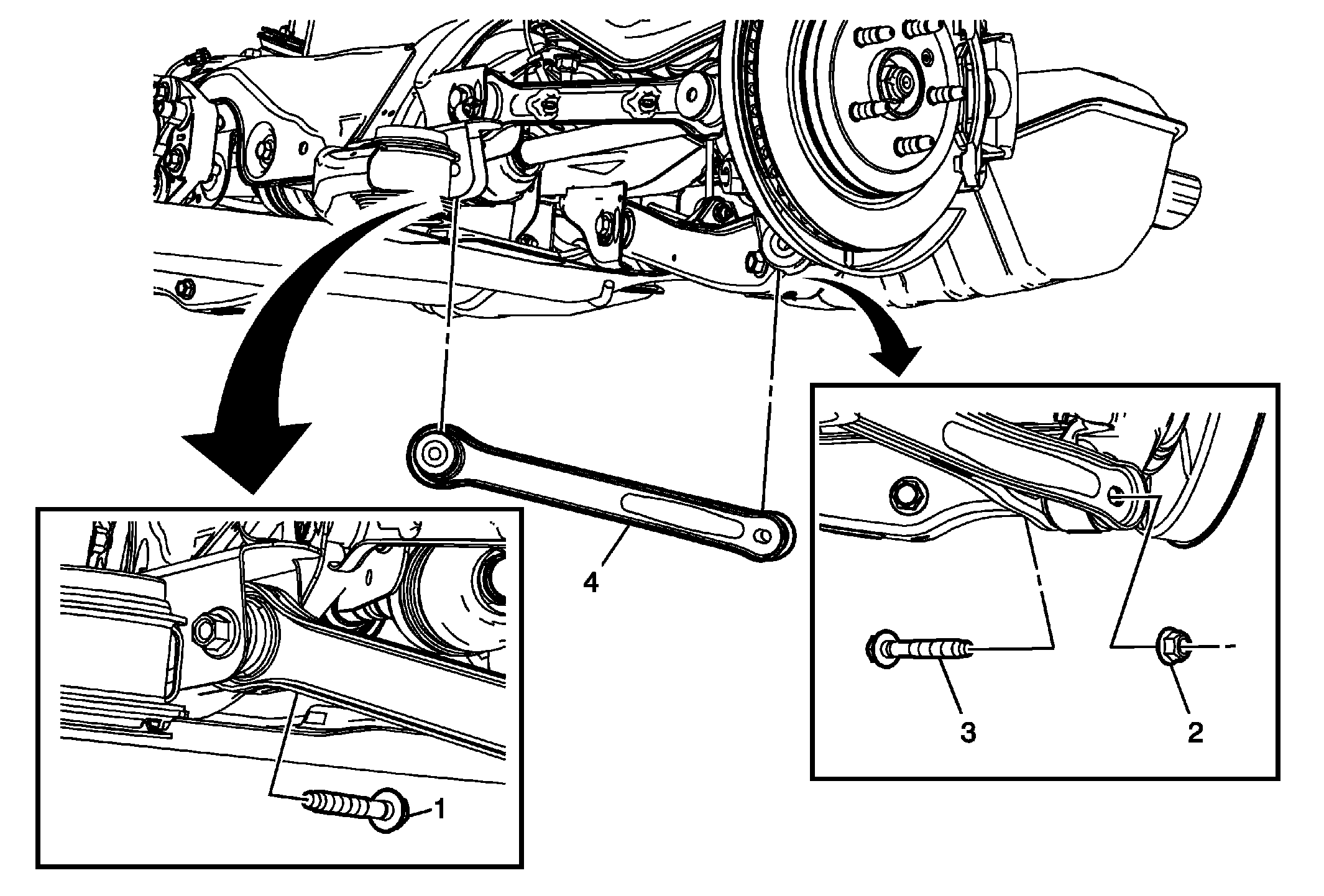

Fig 1: Trailing Arm

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Suspension Trailing Arm Bolt CAUTION: Refer to Fastener Caution . Tighten: 100 N.m (74 lb ft)
2	Rear Suspension Trailing Arm Nut
3	Rear Suspension Trailing Arm Bolt Tighten: 40 N.m (30 lb ft) plus 120 degrees
4	Rear Suspension Trailing Arm Procedure: Check and adjust the rear wheel alignment, if needed. Refer to Rear Camber Adjustment .
