Removal Procedure

Remove the infotainment fascia. Refer to Radio Control Assembly Replacement .
Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
Remove the driver side instrument panel lower trim panel assembly. Refer to Knee Bolster Replacement .
Remove the left and right side instrument panel lower extension panels. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement - Left Side , and Instrument Panel Lower Extension Side Trim Panel Replacement - Right Side .

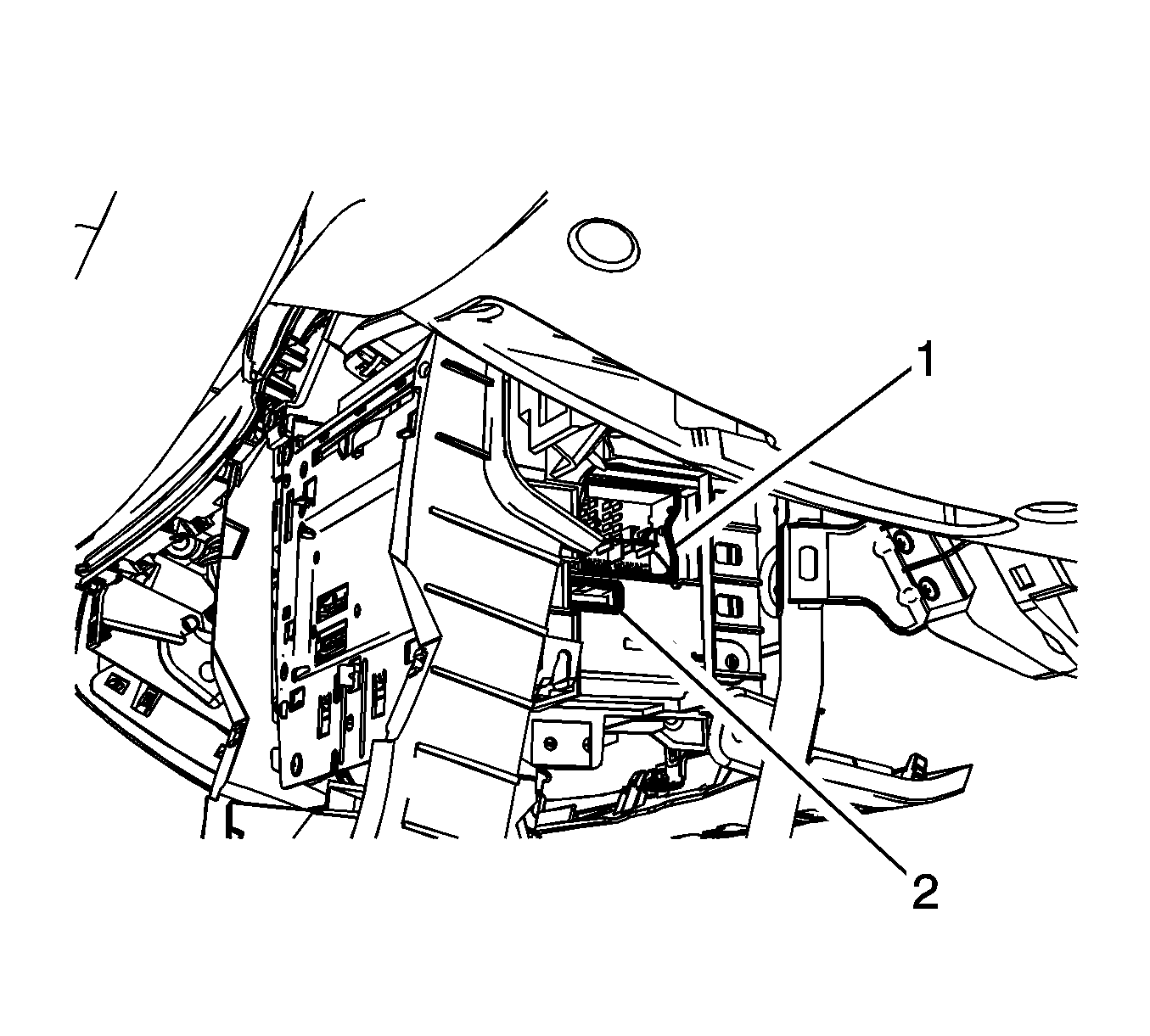

Fig 1: Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE:

Make sure to release the retaining lever on the infotainment electrical connector (2) before disconnecting.

Disconnect the connector(s) (1 and 2 where applicable) from the right side of the infotainment unit.

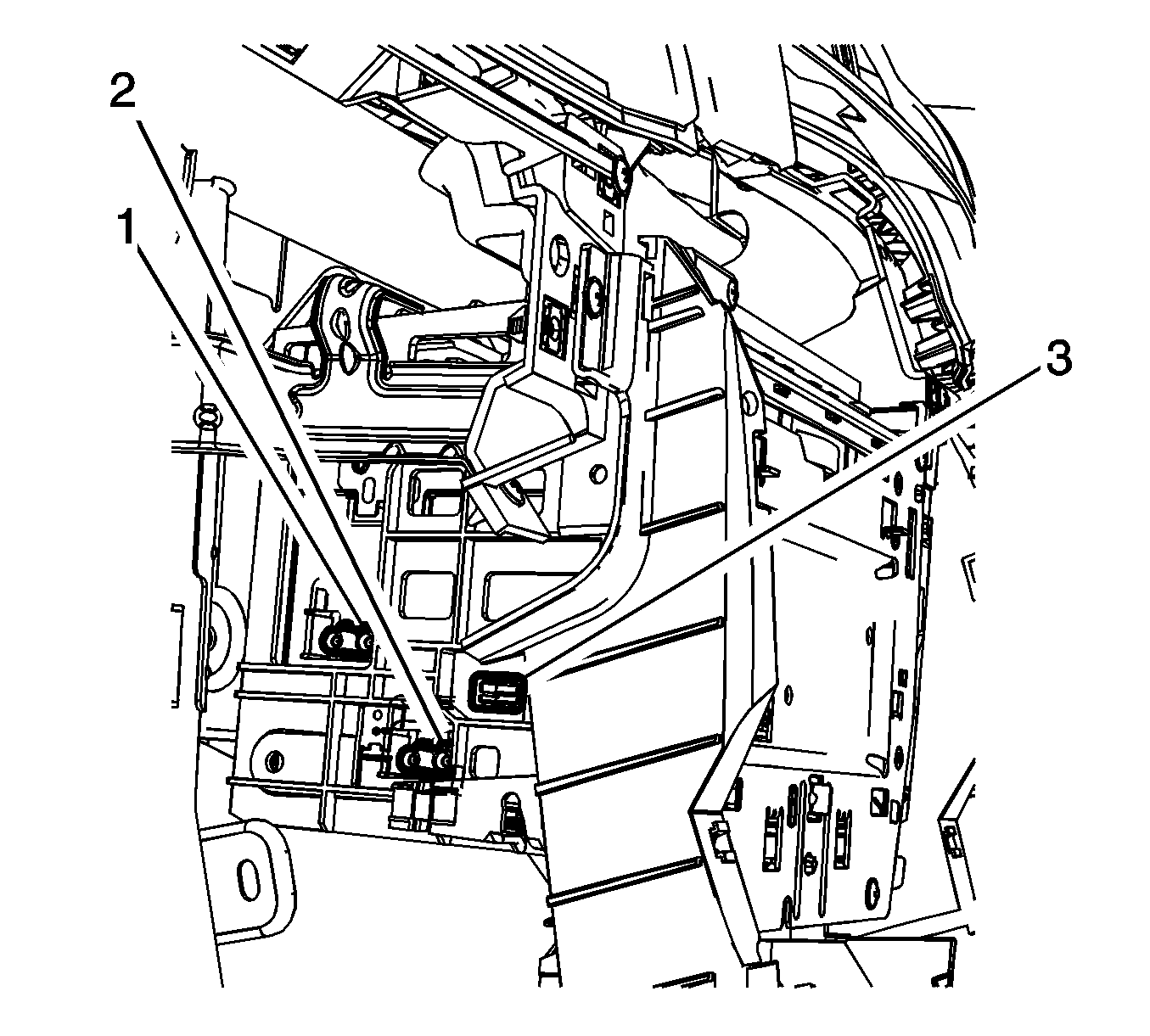

Fig 2: Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE:

To disconnect coaxial connections, pinch down on the retaining clip near connection side of unit and push connector into the unit and slide connector away from the infotainment unit.

NOTE:

Do not remove by pulling on the coaxial cables as they will be dislodged from the connector.

Disconnect the connector(s) (1, 2, and 3 where applicable) from the left side of the infotainment unit.

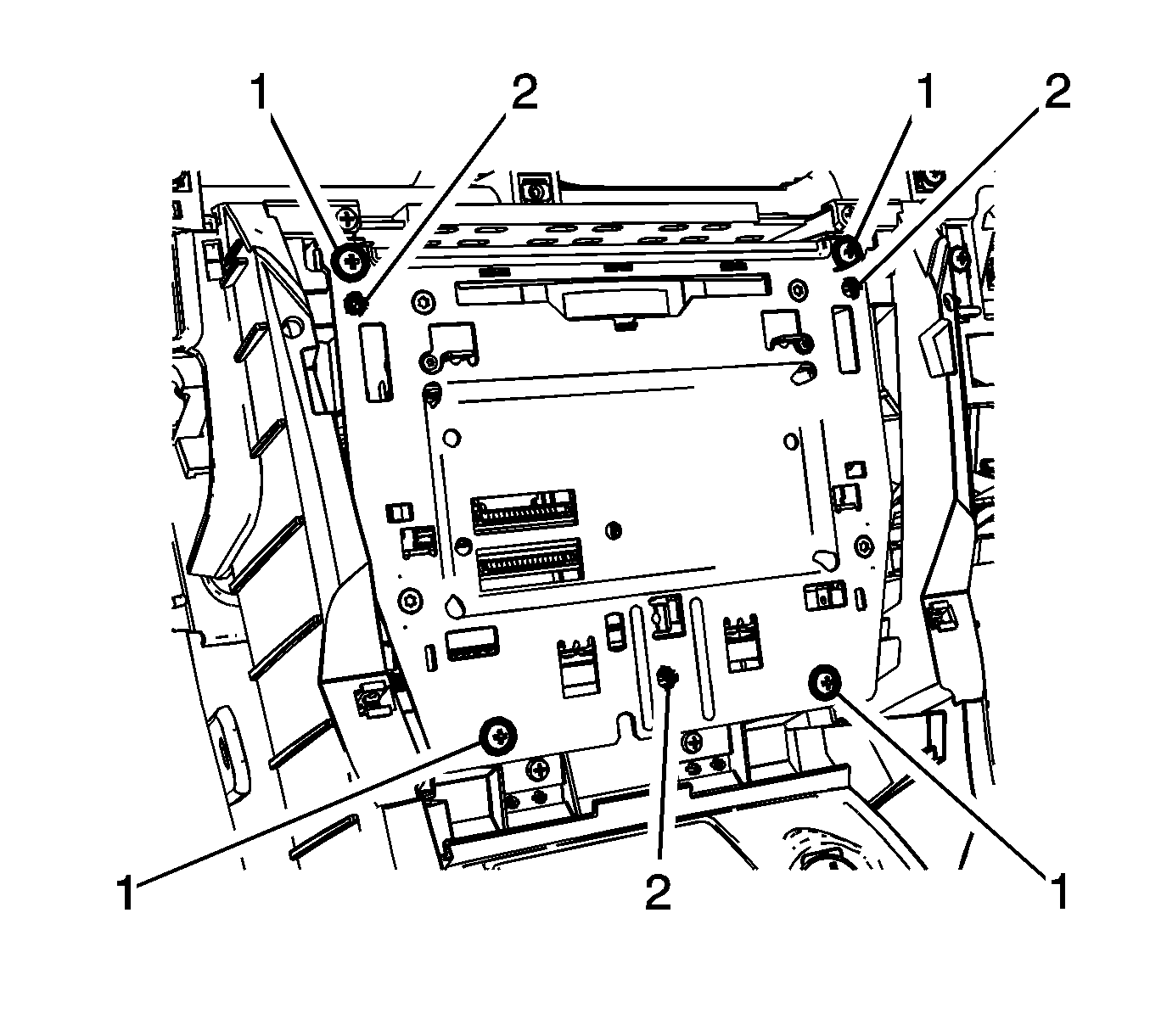

Fig 3: Instrument Panel Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Remove the infotainment unit to instrument panel retaining screws (1).

NOTE:

Observe position of aligning lugs (2).

Remove the infotainment unit (3) from the instrument panel.
