Radio Control Assembly Replacement

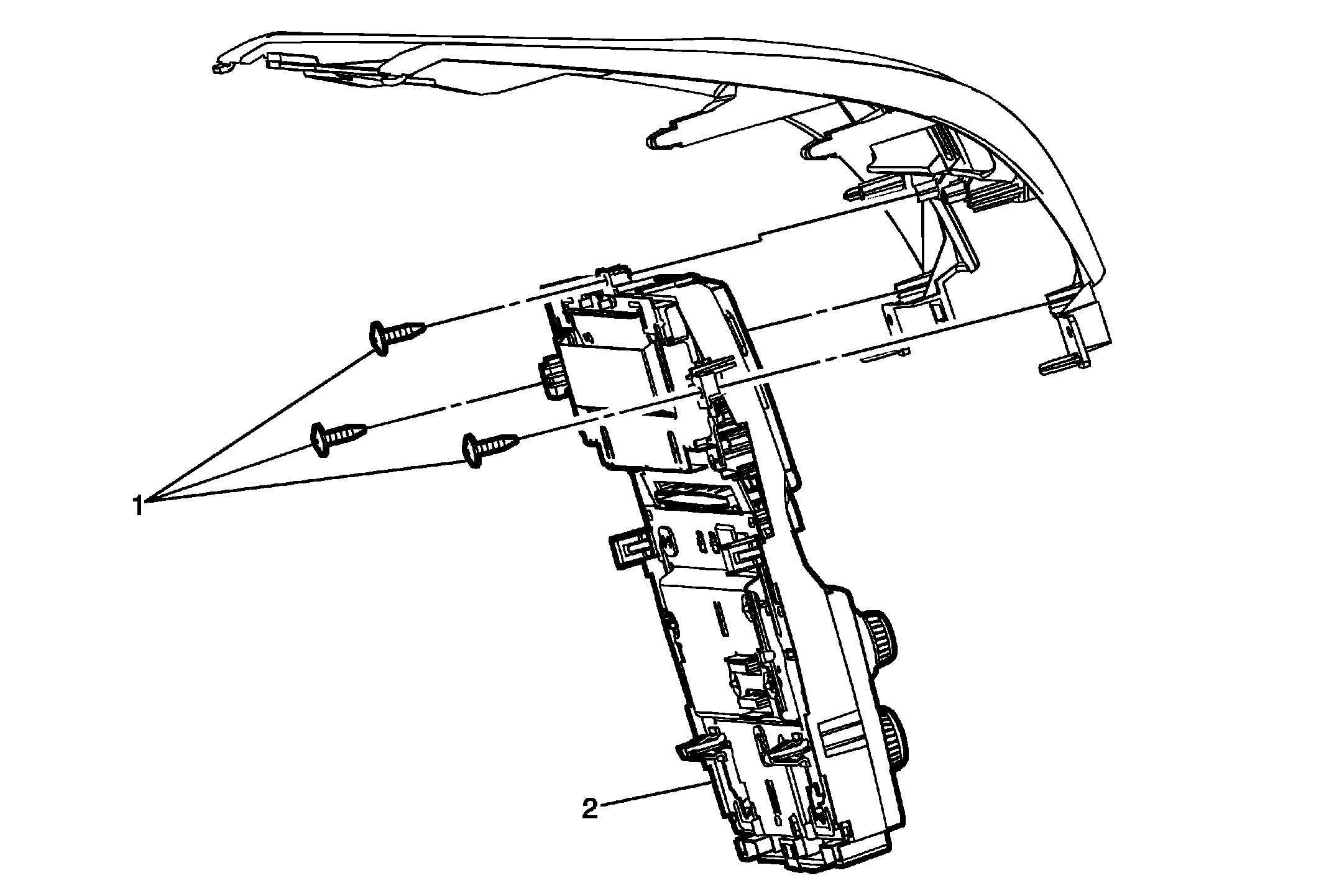

Fig 1: Radio Control Assembly
GM2479813Courtesy of GENERAL MOTORS CORP.
Radio Control Assembly Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
  2. Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement .
1 Radio Control Assembly Bolt/Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Radio Control Assembly

Procedure

  1. When replacing the radio control assembly, transfer components as necessary.
  2. Refer to Control Module References for programming and setup information.
