Instrument Panel Extension Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

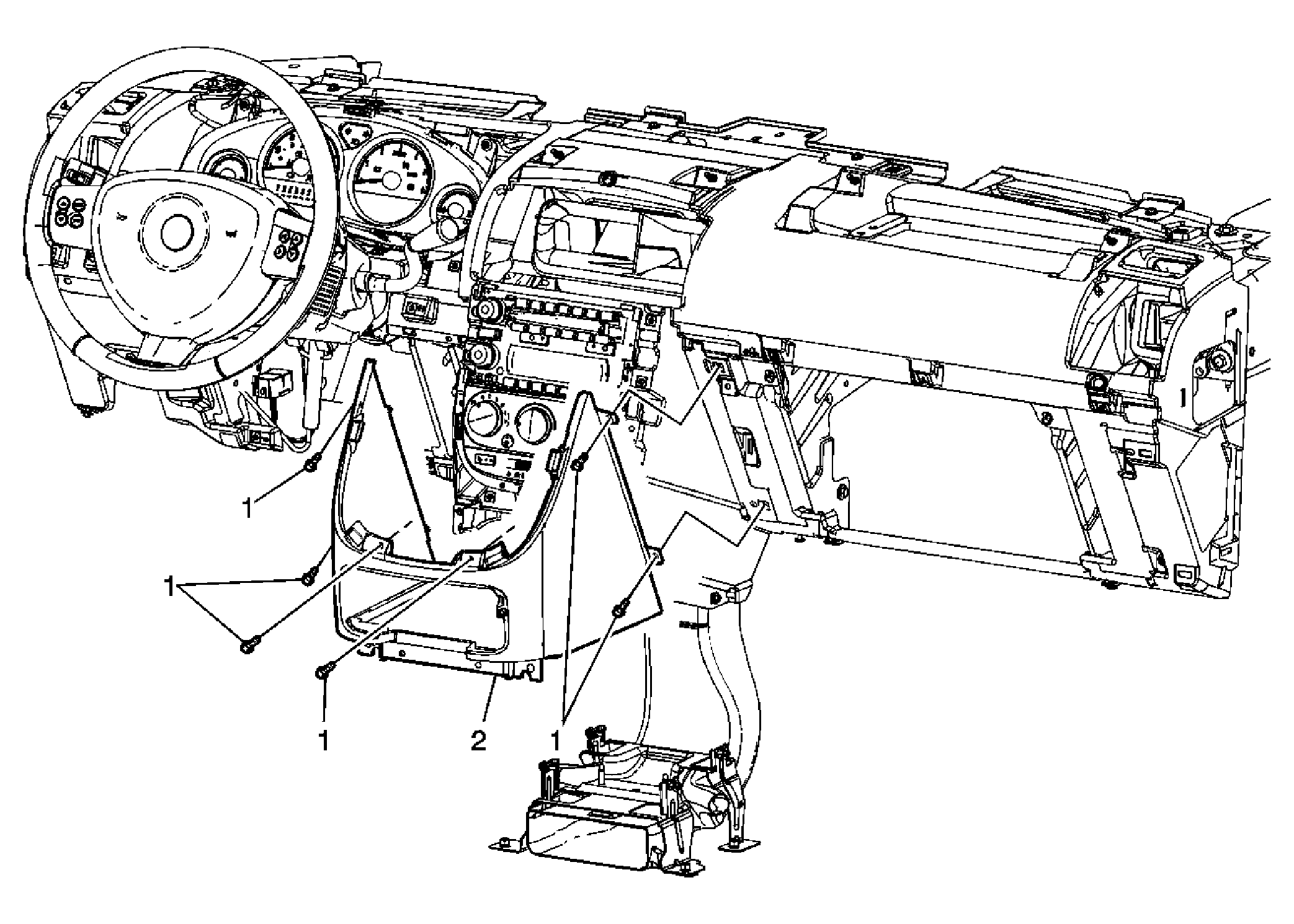

Fig 1: Instrument Panel Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) upper trim pad. Refer to Instrument Panel Trim Pad Replacement . Remove the I/P compartment assembly. Refer to Instrument Panel Compartment Replacement . Remove the knee bolster assembly. Refer to Knee Bolster Replacement . Remove the front floor console retainer. Refer to Front Floor Console Retainer Replacement . Remove the cupholder door. Refer to Instrument Panel Cup Holder Replacement .
1	Instrument Panel Extension Trim Panel Screws (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Extension Trim Panel Assembly.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel (I/P) upper trim pad. Refer to Instrument Panel Trim Pad Replacement .
Remove the I/P compartment assembly. Refer to Instrument Panel Compartment Replacement .
Remove the knee bolster assembly. Refer to Knee Bolster Replacement .
Remove the front floor console retainer. Refer to Front Floor Console Retainer Replacement .
Remove the cupholder door. Refer to Instrument Panel Cup Holder Replacement .

Instrument Panel Extension Trim Panel Screws (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Instrument Panel Extension Trim Panel Assembly.
