Instrument Panel Compartment Replacement
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Compartment Replacement

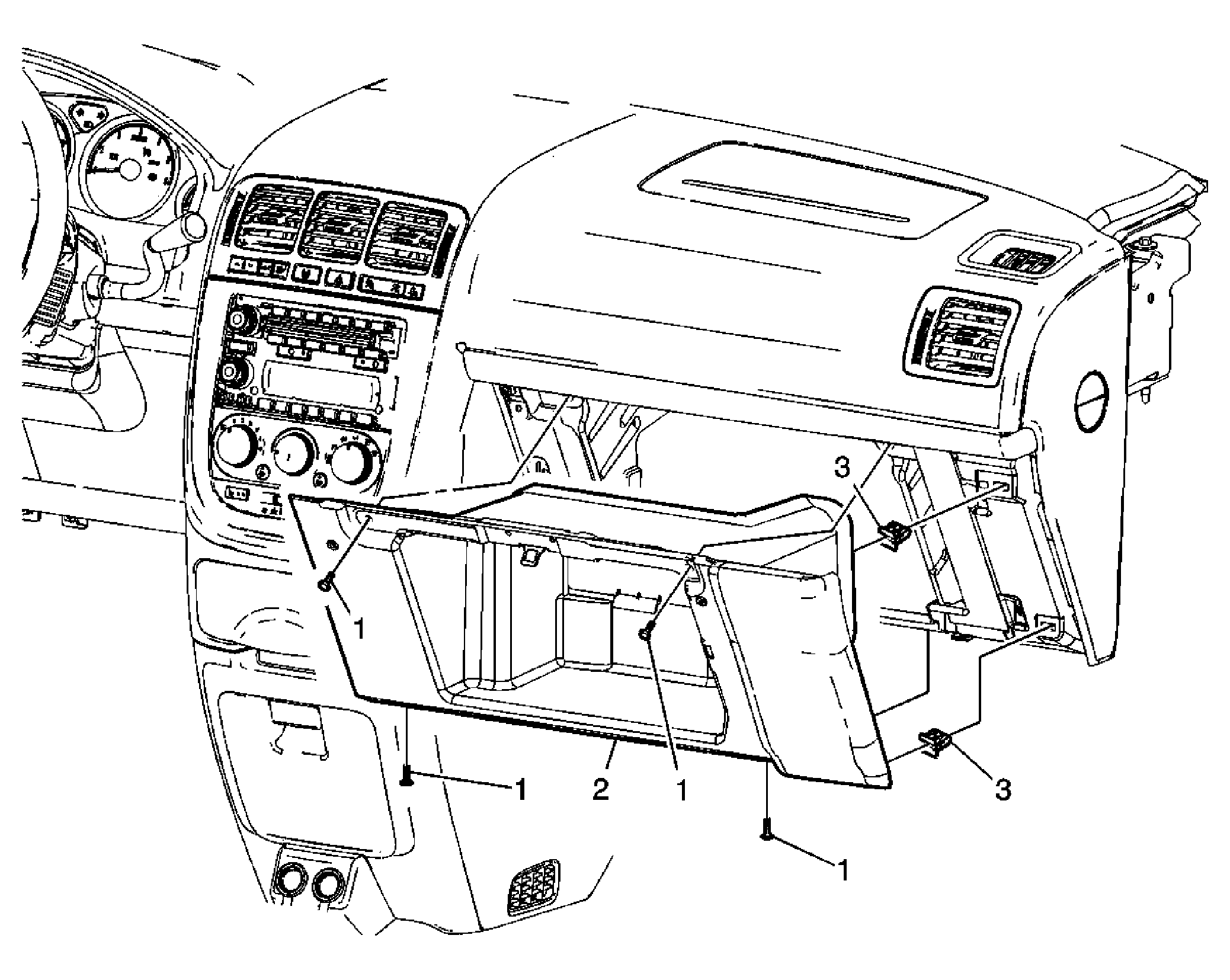

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the instrument panel compartment door assembly. Refer to Instrument Panel Compartment Door Replacement . |
|
| 1 | Instrument Panel Compartment Screws (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Compartment Assembly |
| 3 | Retainer Clips (Qty: 2) |
