Front Floor Lower Console Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

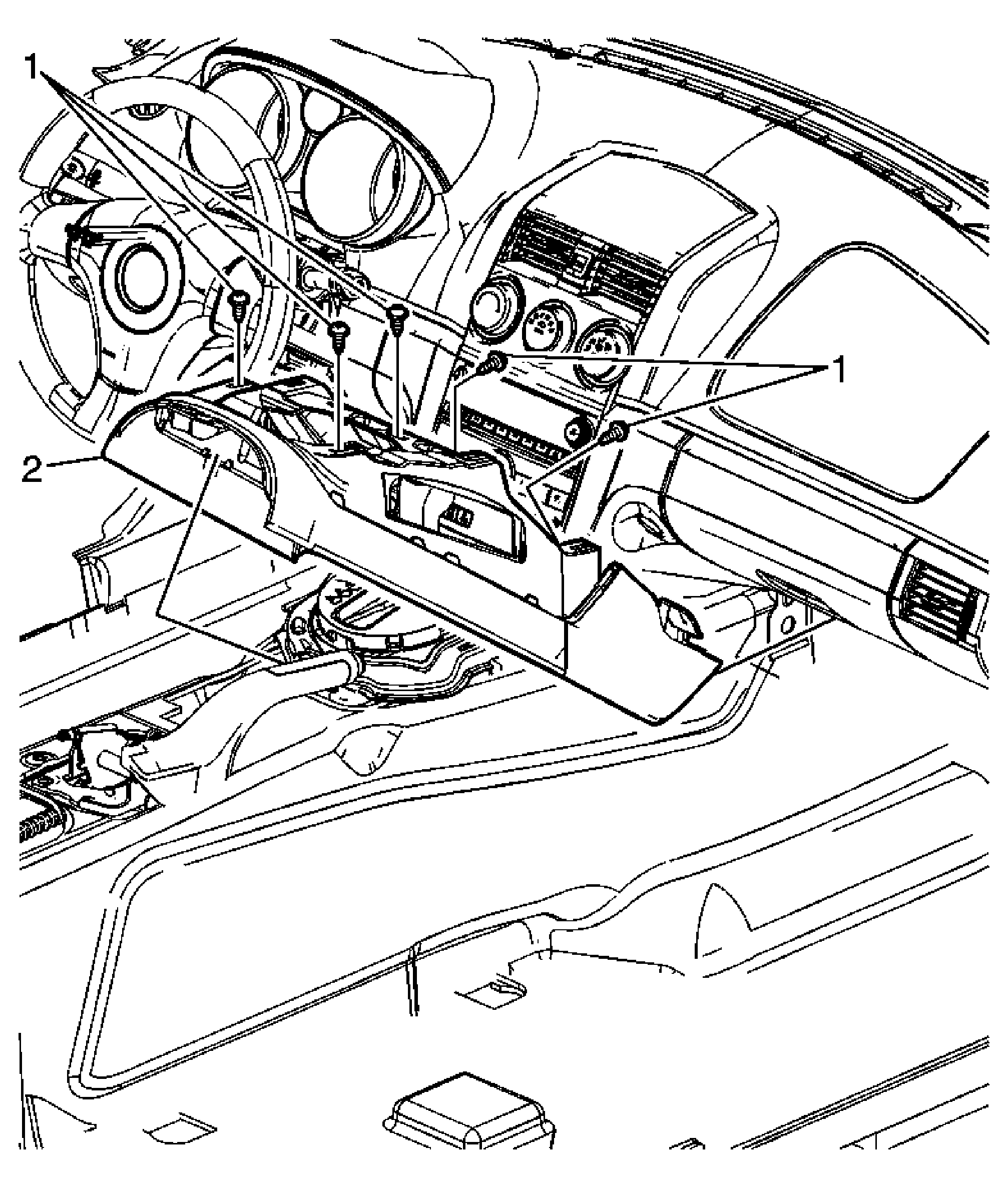

Fig 1: Front Floor Lower Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console cover assembly. Refer to Front Floor Console Front Cover Replacement . Remove the front floor console. Refer to Front Floor Console Replacement .
1	Front Floor Lower Console Screws (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Front Floor Lower Console Assembly

Callout

Component Name

Preliminary Procedures

Remove the front floor console cover assembly. Refer to Front Floor Console Front Cover Replacement .
Remove the front floor console. Refer to Front Floor Console Replacement .

Front Floor Lower Console Screws (Qty: 5)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Front Floor Lower Console Assembly
