Front Floor Console Front Cover Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

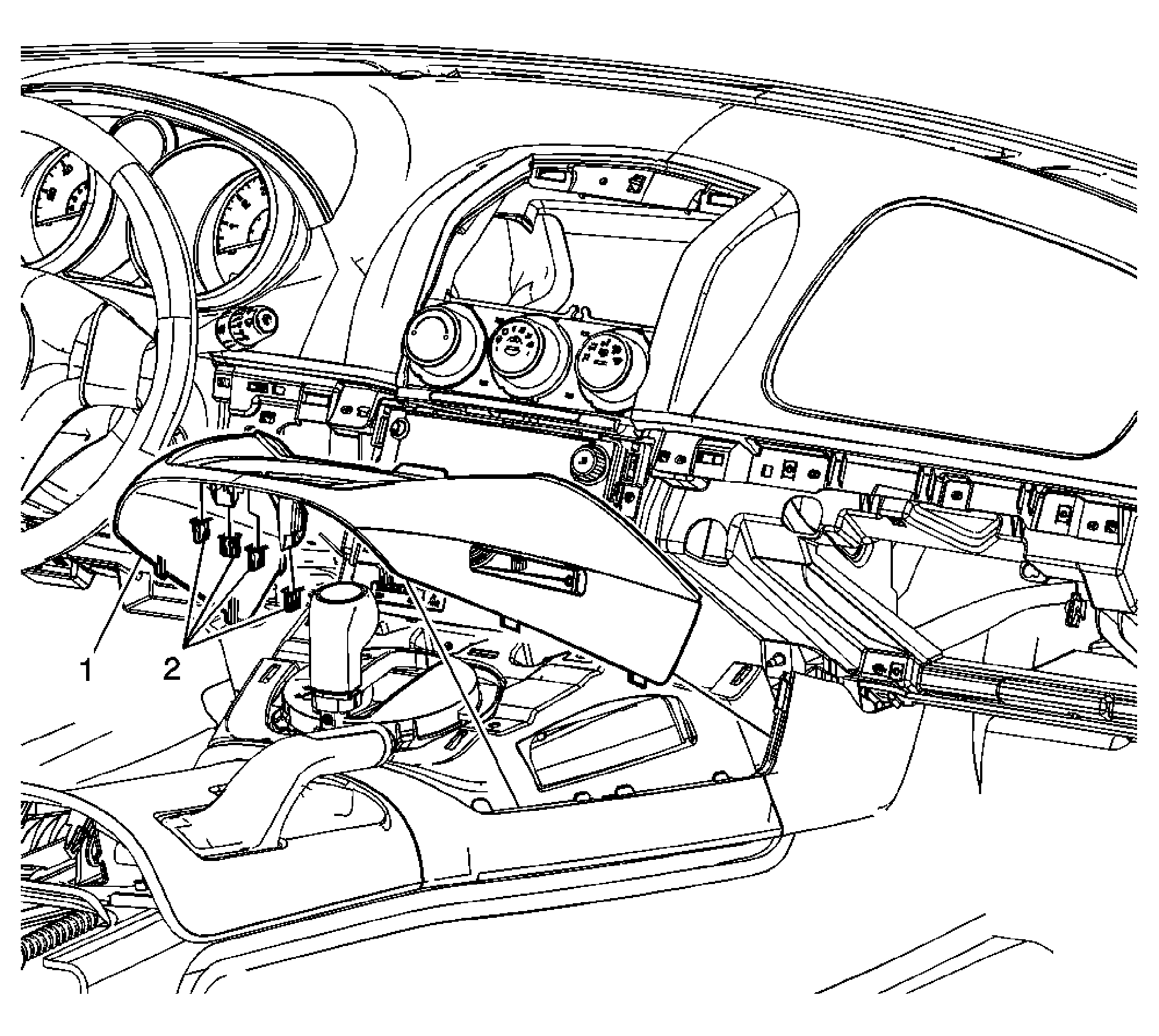

Fig 1: Front Floor Console Front Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . If equipped with an automatic transmission, remove the shift indicator. Refer to Transmission Control Lever Knob Replacement . If equipped with a manual transmission, remove the shift control lever and/or boot. Refer to Control Lever and/or Boot Replacement .
1	Front Floor Console Cover Assembly Procedure: Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cover to the console.
2	Retainer Clips (Qty: 8)

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
If equipped with an automatic transmission, remove the shift indicator. Refer to Transmission Control Lever Knob Replacement .
If equipped with a manual transmission, remove the shift control lever and/or boot. Refer to Control Lever and/or Boot Replacement .

Front Floor Console Cover Assembly
Procedure:
Use a flat-bladed plastic trim tool in order to release the retainer tabs securing the cover to the console.

Retainer Clips (Qty: 8)
