Power Door Lock Switch Replacement - Driver Door
WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Power Door Lock Switch Replacement - Driver Door

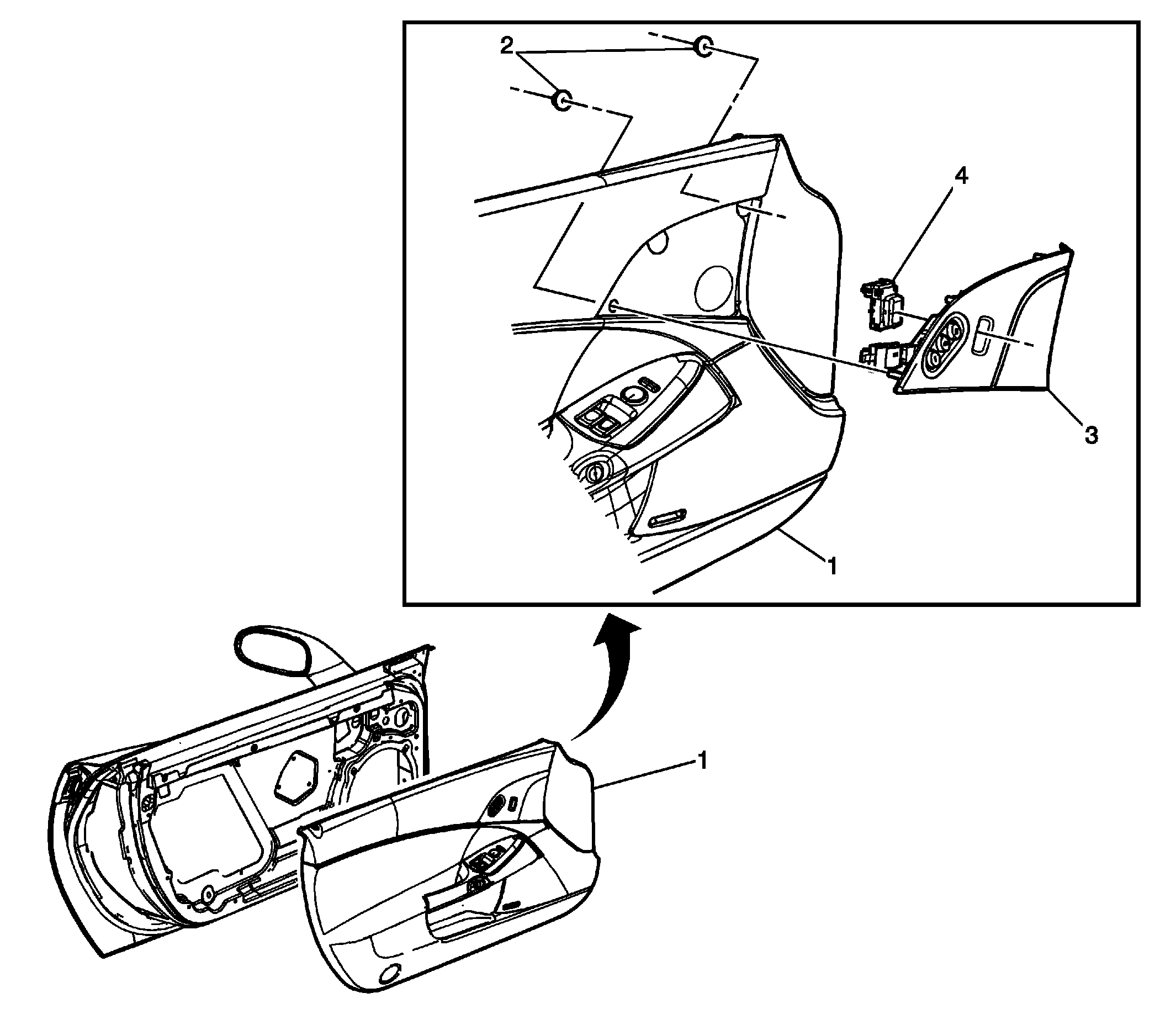

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Panel, Door Trim Refer to Trim Panel Replacement - Driver Door . |
| 2 | Nut, Switch Bezel (Qty: 3) Tighten: 1 N.m (9 lb in) |
| 3 | Bezel, Switch |
| 4 | Switch, Power Door Lock Tip: Use a flat-bladed tool to remove the switch from the bezel. |
