Trim Panel Replacement - Driver Door

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

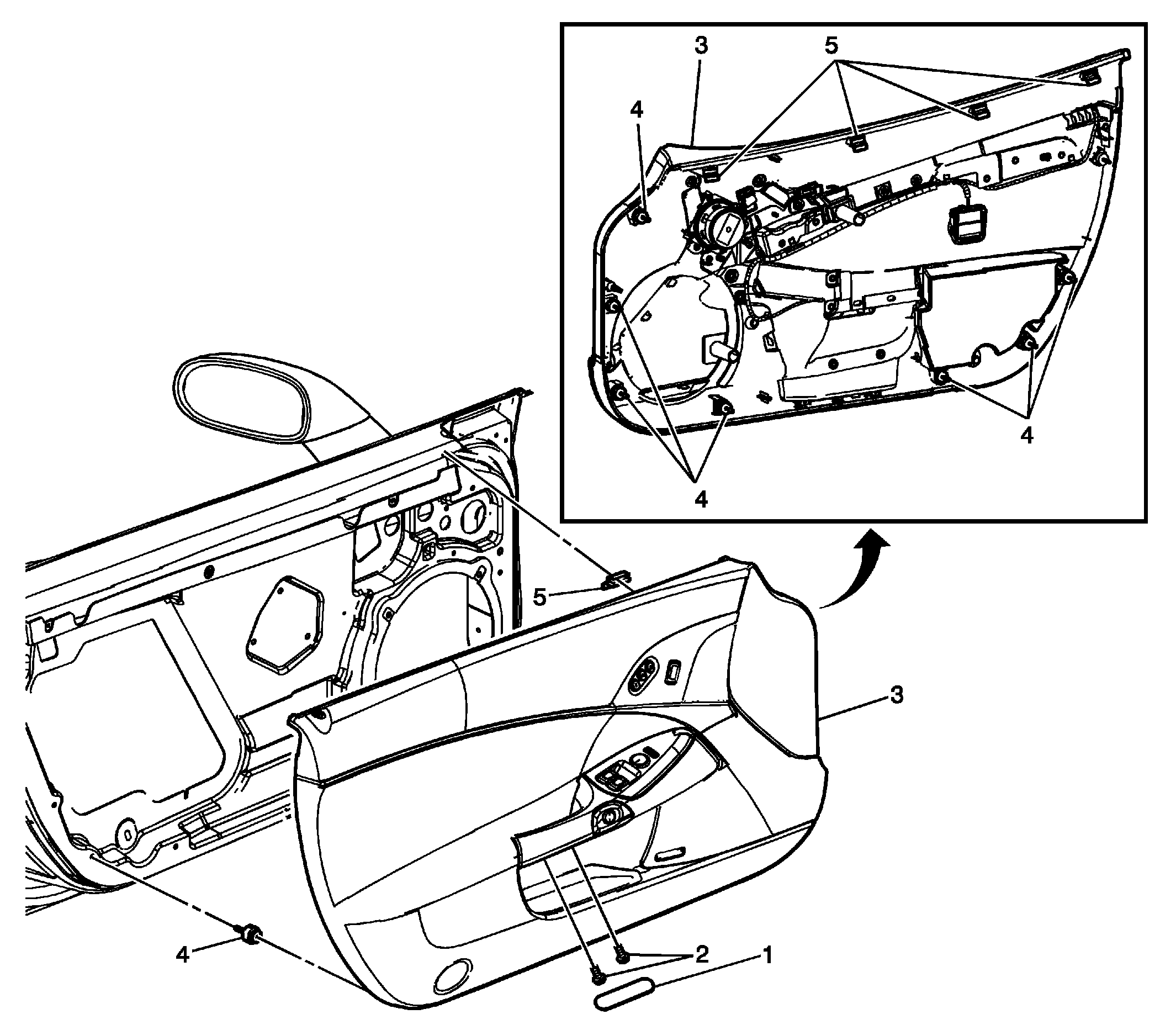

Fig 1: Replacing Driver Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bezel, Door Panel
2	Bolts, Door Panel (Qty: 2) Tighten: 6 N.m (53 lb in)
3	Panel Assembly, Door Trim Tip: Use a J 38778 Door Trim Panel Removal Tool in the slot provided at the bottom rear edge of the trim panel. Pull the rest of the pins on the trim panel loose with a sharp motion pulling away from the door. Lift upward on the trim panel to release the clips across the top of the door panel. Disconnect the main wiring harness.
4	Retainer, Front Side Door Trim (Qty: 8) Tip: Check the grommets that are left in the door to make sure all 8 are still in the door tightly, and with no cracks. If the door panel has been removed twice, replace all grommets to avoid door trim panel rattles.
5	Clip, Front Side Door Trim (Qty: 4)
