Installation Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

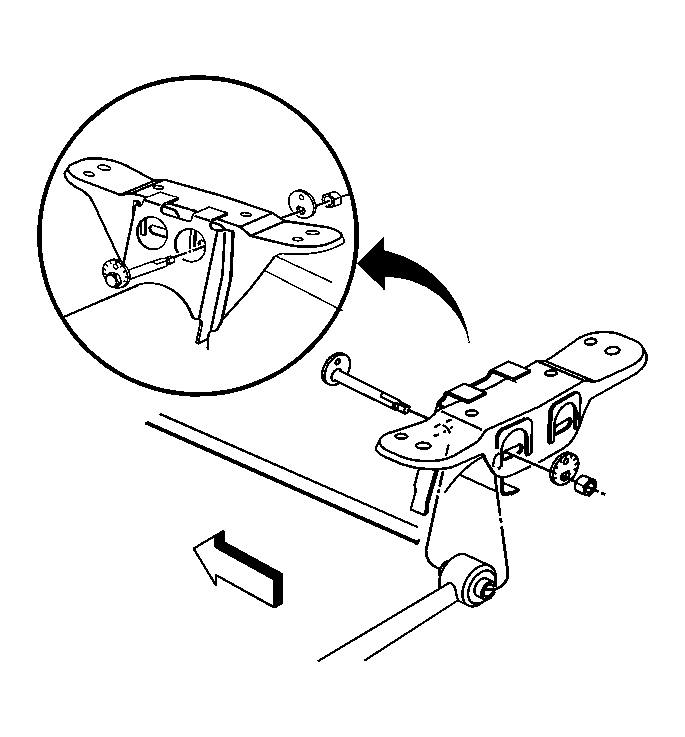

    Fig 1: Loosening Inner Adjustment Link Retaining Nut
    GM105028Courtesy of GENERAL MOTORS CORP.
  1. Install the adjustment link to the support assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the cam lock nut, washer and bolt.

    Tighten:  Tighten the cam lock nut to 91 N.m (67 lb ft).

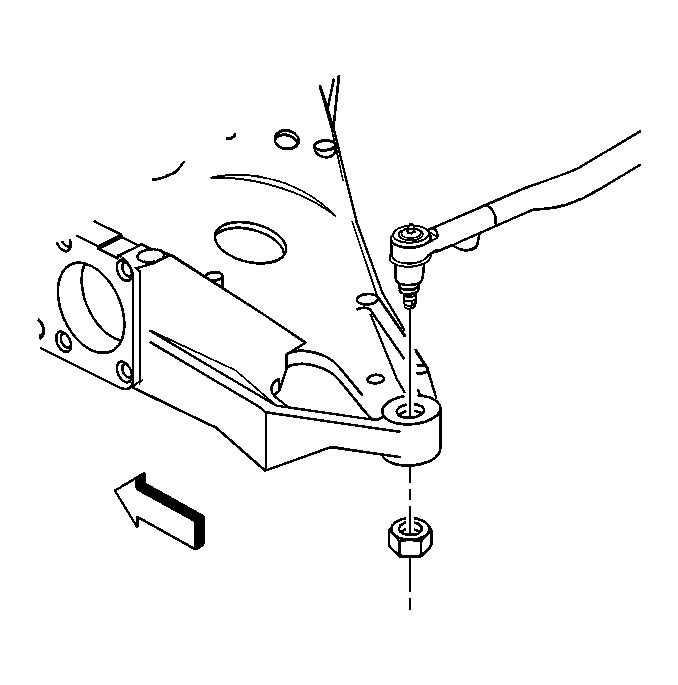

    3. Fig 2: Adjustment Link To Lower Control Arm
    GM397546Courtesy of GENERAL MOTORS CORP.
  3. Install the adjustment link to the control arm.
  4. Install the adjustment link nut.

    Tighten:  Tighten the nut to 30 N.m (22 lb ft) then tighten an additional 180 degrees.

  5. Install the rear suspension support. Refer to Rear Support Replacement .
  6. Install the exhaust. Refer to Exhaust System Replacement (RPO L26) or Exhaust System Replacement (RPO LD8) .
  7. Lower the vehicle.
  8. Check the rear toe adjustment. Refer to Rear Toe Adjustment .
