Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

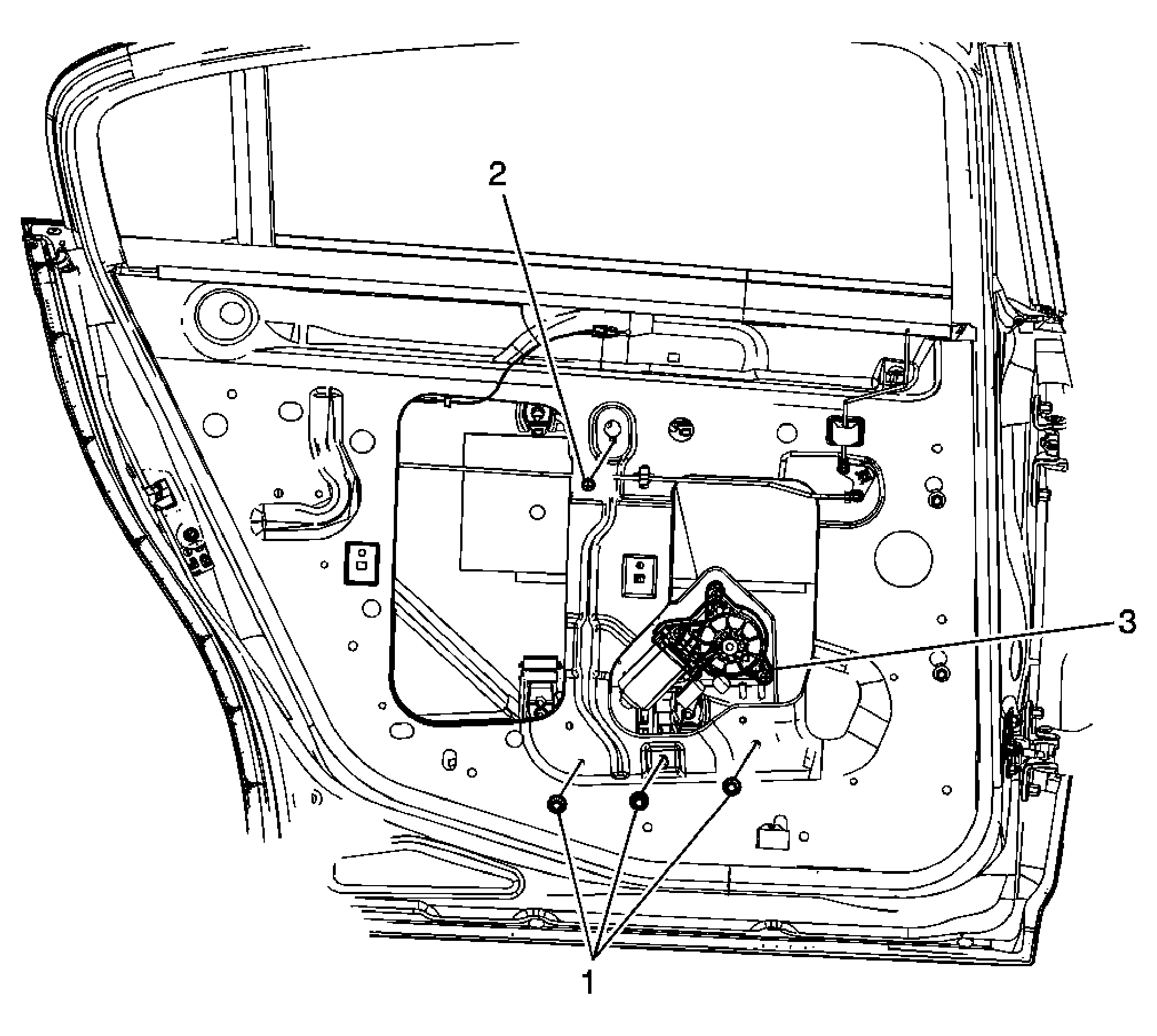

Fig 1: View Of Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Position the window approximately half way down in the door. Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear door window. Refer to Rear Side Door Window Replacement .
1	Rear Door Window Regulator Bolts (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Rear Door Window Regulator Bolts (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Rear Door Window Regulator Tip: Disconnect the electrical connector. Rotate the regulator as necessary to remove from the door.
