Rear Side Door Window Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

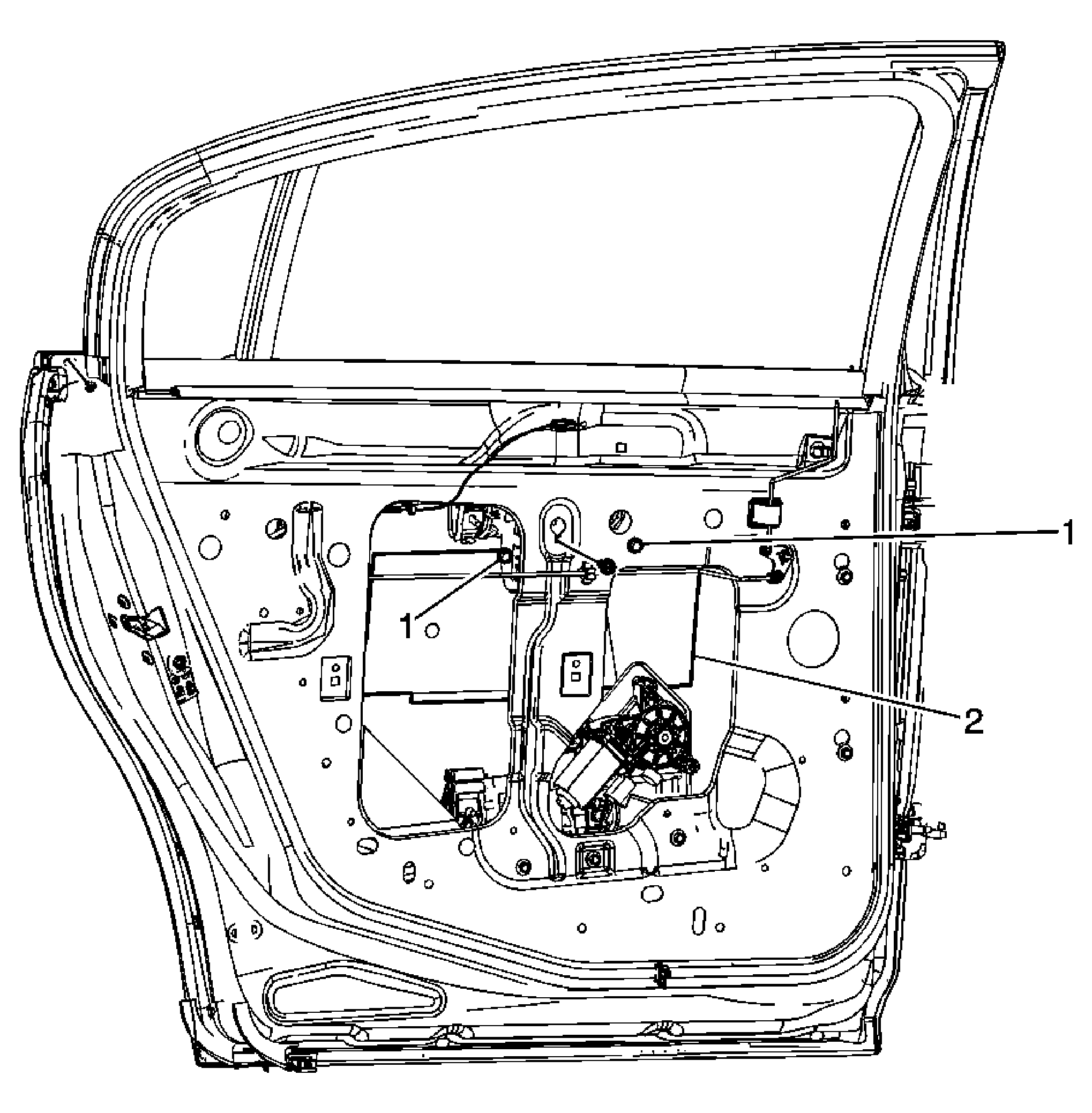

Fig 1: Identifying Rear Side Door Window Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the door frame applique. Refer to Rear Door Frame Applique Replacement . Position the window approximately halfway down in the door. Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Door Window Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Rear Door Window Tip: Rotate window as necessary to remove it from the door.

Callout

Component Name

Preliminary Procedure

Remove the door frame applique. Refer to Rear Door Frame Applique Replacement .
Position the window approximately halfway down in the door.
Remove the trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

Rear Door Window Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Rear Door Window
Tip: Rotate window as necessary to remove it from the door.
