Intermediate/4TH Servo Assembly: Removal

  1. Remove the oil pan and filter. See DRAINING & REFILLING  under REMOVAL & INSTALLATION.
  2. Remove the oil feed pipes. See OIL FEED PIPES  .
  3. Remove the 2 intermediate/4th servo cover bolts, the servo and the spring. See Fig 1 .
  4. Disassemble, clean and inspect the intermediate/4th servo assembly.

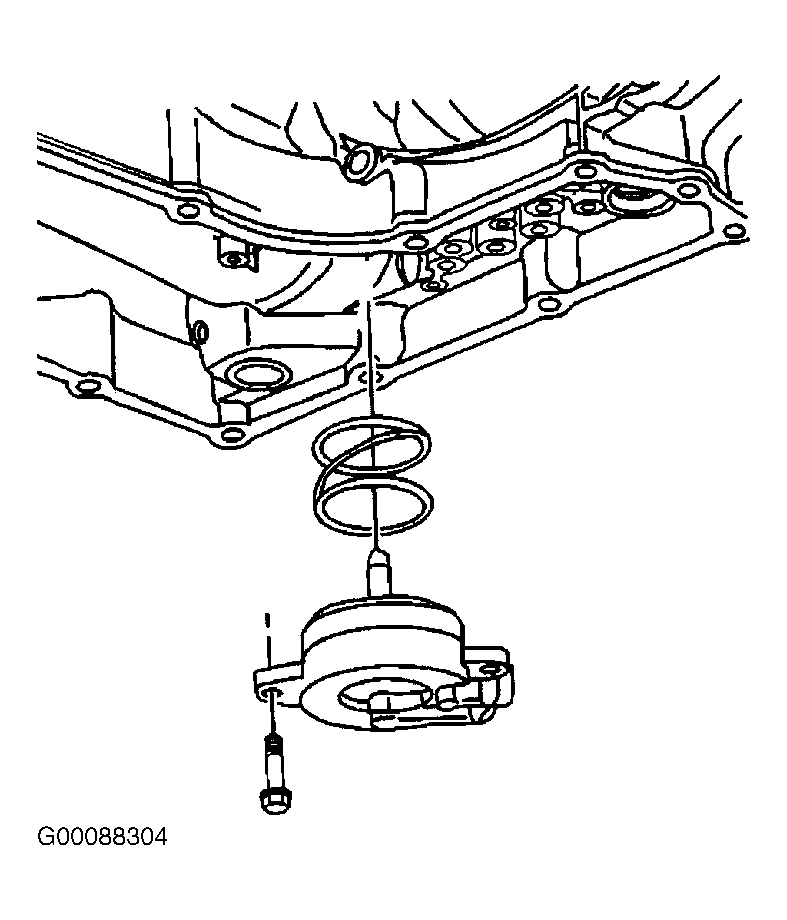

Fig 1: Removing & Installing Intermediate/4th Servo Assembly
G00088304Courtesy of GENERAL MOTORS CORP.
