Chevy Express G2500, Van Cargo Extended, 5.0 M
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls Self-Diagnostics - 5.0L & 5.7L
>>
Component Locations
Component Locations

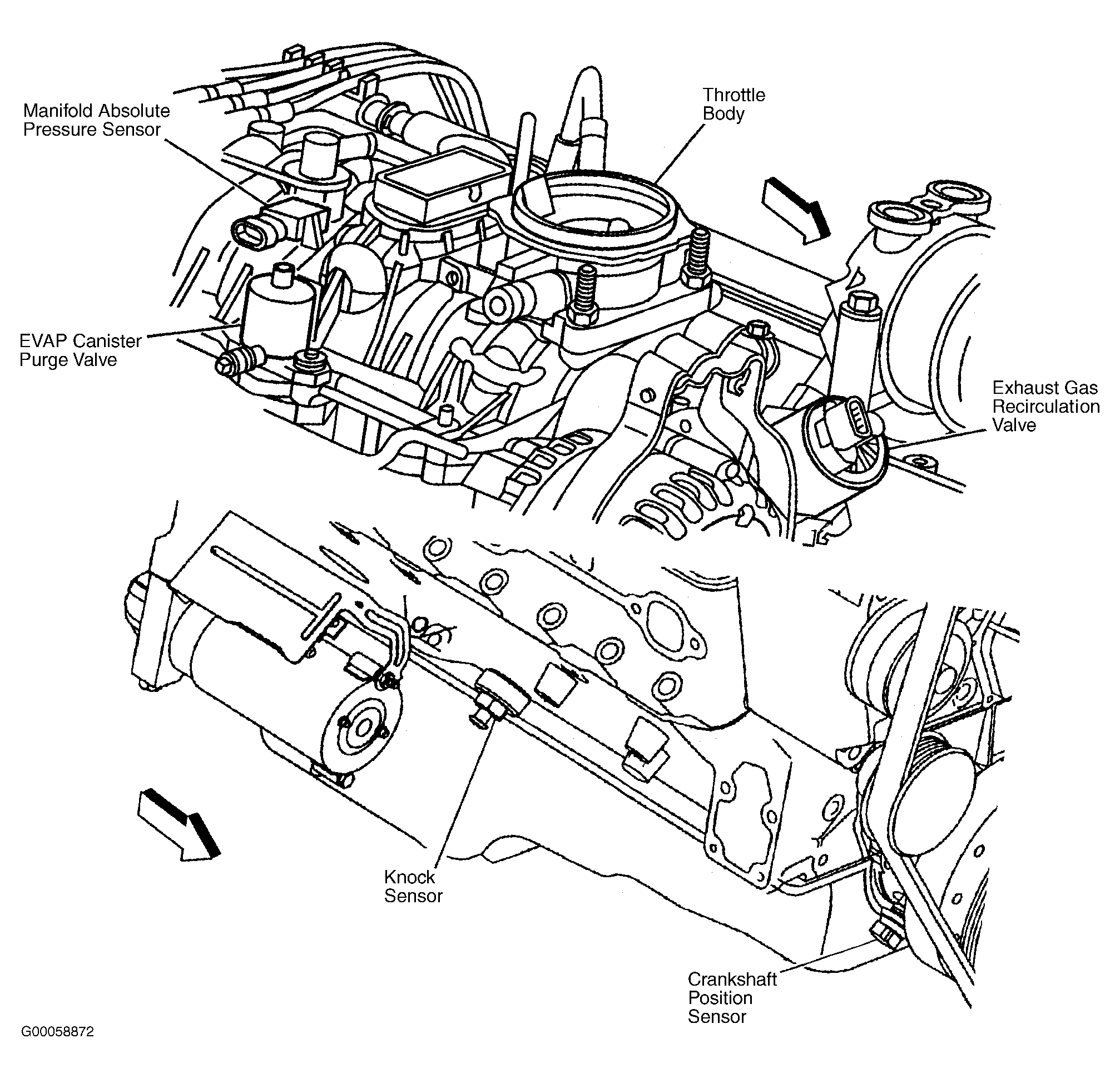

Fig 1: Locating Engine Sensors (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

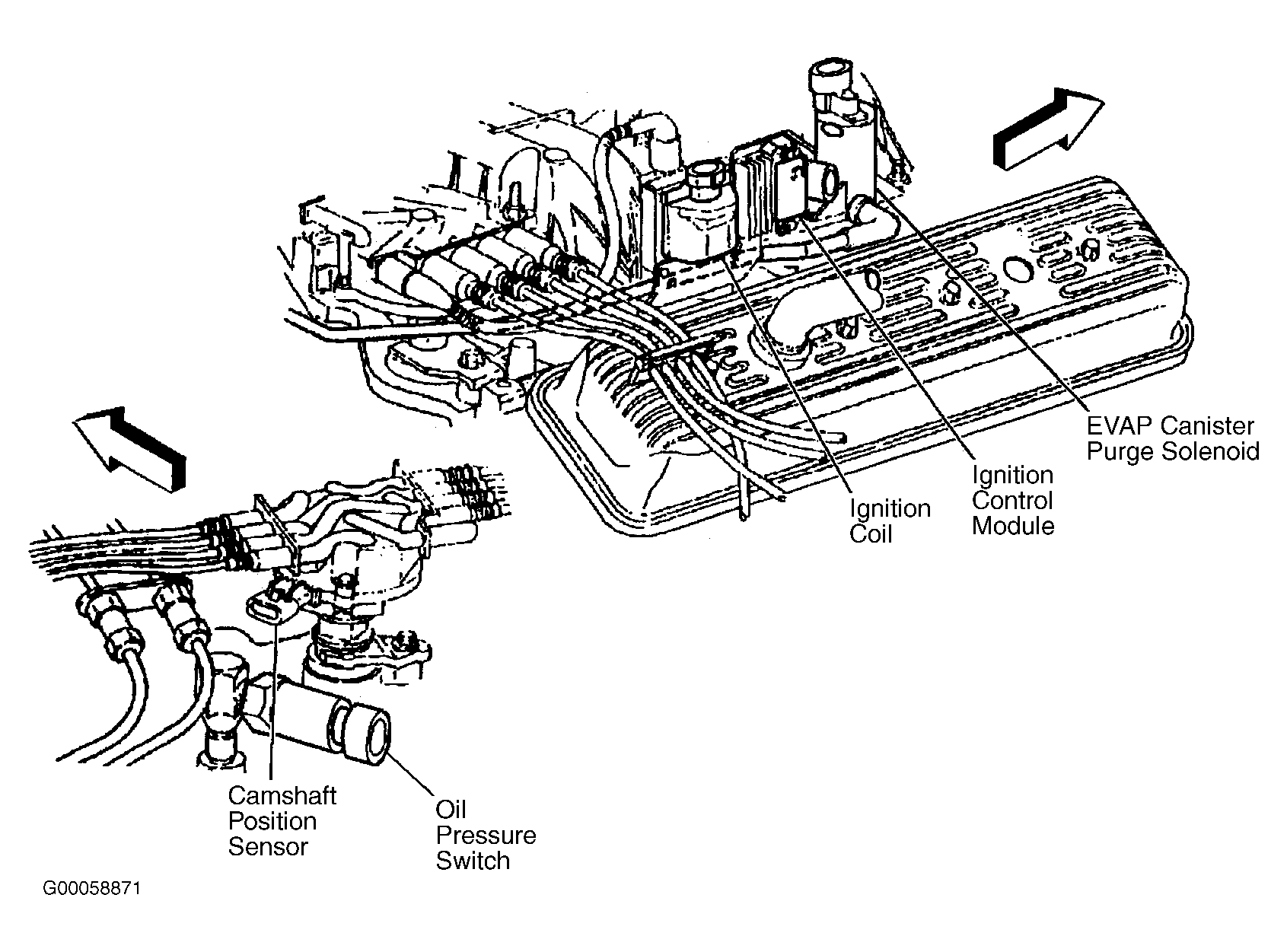

Fig 2: Locating Engine Sensors (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

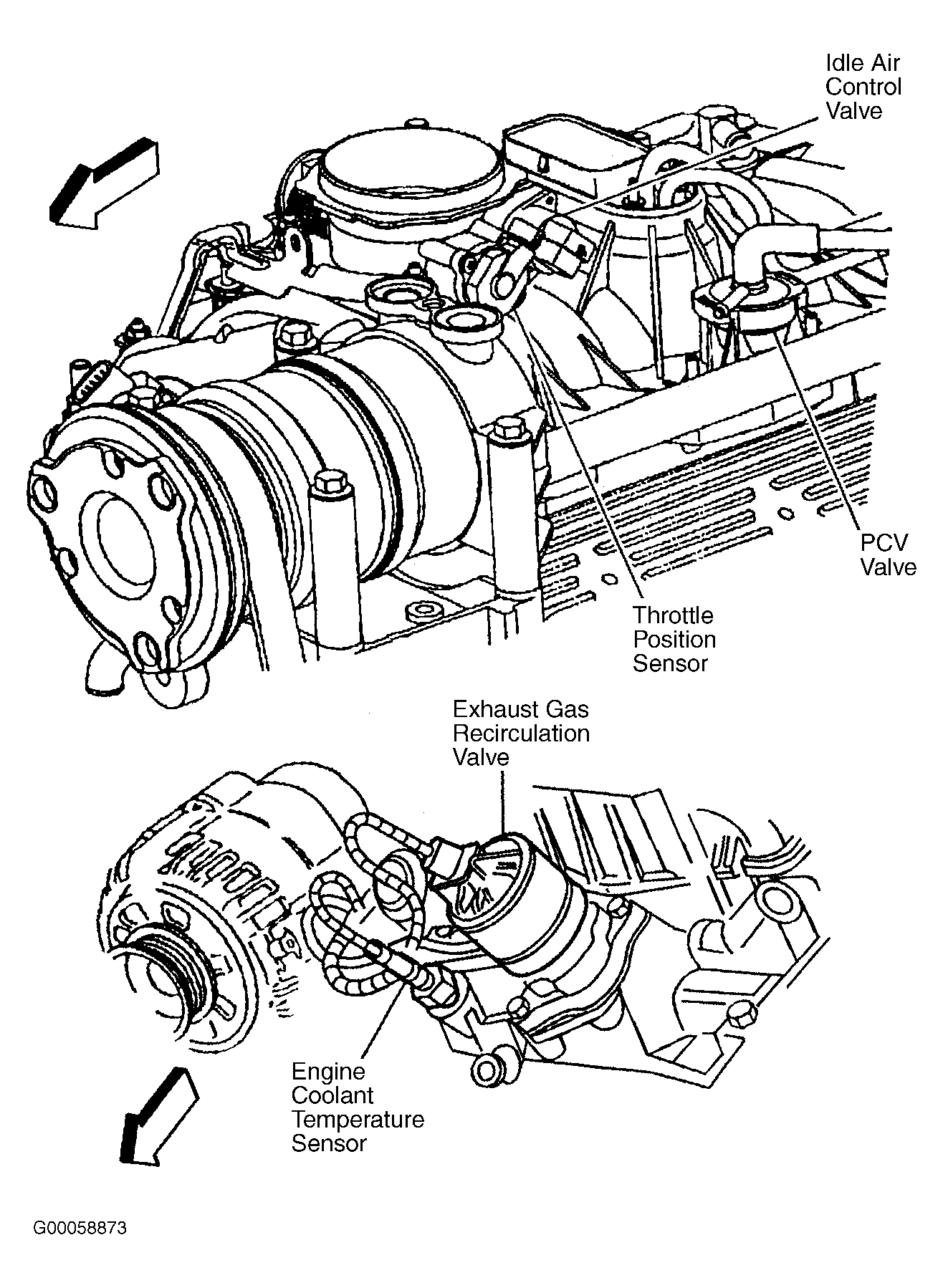

Fig 3: Locating Engine Sensors (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

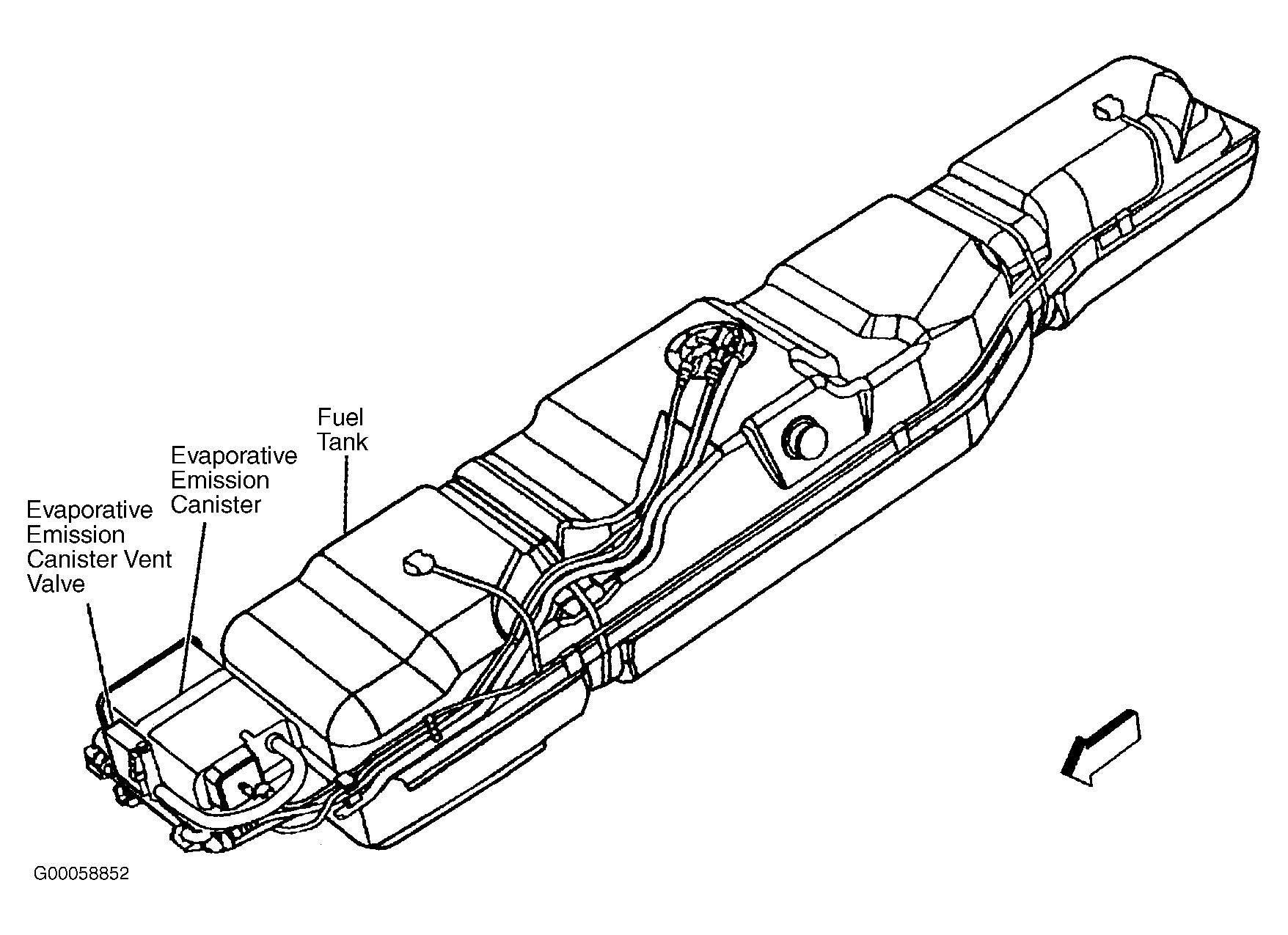

Fig 4: Locating Evaporative Emission Component
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
